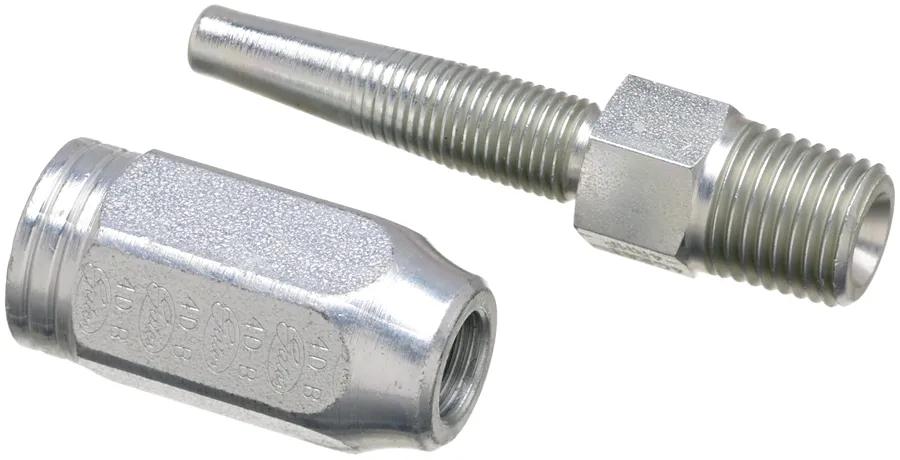

Field Attachable Coupling, Type: T for G2 2, 4C2AT-4RMP
#GATG28100-0404
Product Overview
Need to Fix a Hydraulic Assembly in a Remote Location w/o Electricity?
Features & Benefits
- Be Sure to Clean the Hose & Finished Assembly as Needed to Avoid System Contamination.
- Field Attachable Type T Couplings for G1 (1-Wire) & G2 (2-Wire) Hose Are a Solution When Crimping is Not an Option.
- A Square Cut on the End of the Hose, Some Oil, a Vice & an Adjustable Wrench Are All ThatÆs Needed for Field Attachable Coupling Installation.
Specifications
| Coupling Description | Field Attachable Type T for G2 2-Wire Hose Male Pipe (NPTF - 30 Cone Seat) |
| Cut Off (in) – C | 1-29/64 in (3.68 cm) |
| Hose Recommendation | Gates 2-Wire - Global G2; Global G2L PolarFlex (-4 through -24); Hot Oiler |
| Industrial Description | 4C2AT-4RMP |
| Inside Diameter | 1/4 in (0.64 cm) |
| Length | 2-33/64 in (6.4 cm) |
| Stem Hex (in.) | 9/16 in (1.42 cm) |
| Type | Field Attachable Coupling, Type: T for G2 2 |
Interchanges & Equivalent parts:
| G28100-0404 |
| 723181223 |
