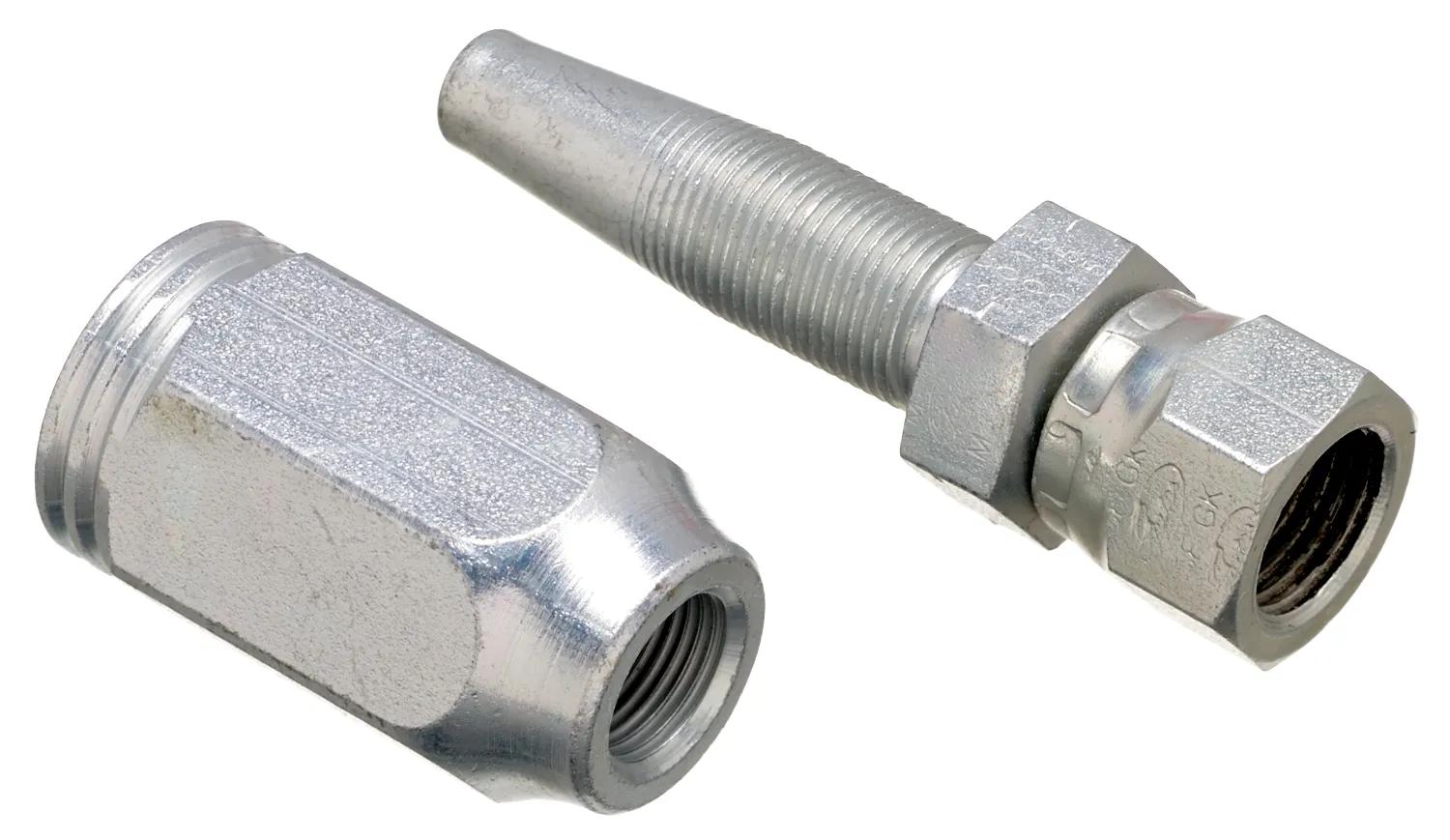

Field Attachable Coupling, Type: T for G2 2, 6C2AT-6RFJX
#GATG28170-0606
Product Overview
Need to Fix a Hydraulic Assembly in a Remote Location w/o Electricity?
Features & Benefits
- Be Sure to Clean the Hose & Finished Assembly as Needed to Avoid System Contamination.
- Available in common threads for 4G2 through 20G2H/24G2H
- A Square Cut on the End of the Hose, Some Oil, a Vice & an Adjustable Wrench Are All ThatÆs Needed for Field Attachable Coupling Installation.
Specifications
| Coupling Description | Field Attachable Type T for G2 2-Wire Hose Female JIC 37 Flare Swivel |
| Cut Off (in) – C | 1-9/16 in (3.96 cm) |
| Hose Recommendation | Gates 2-Wire - Global G2; Global G2L PolarFlex (-4 through -24); Hot Oiler |
| Industrial Description | 6C2AT-6RFJX |
| Inside Diameter | 3/8 in (0.97 cm) |
| Length | 2-51/64 in (7.11 cm) |
| Nut Hex Size | 3/4 in (1.91 cm) |
| Product Number | 723181231 |
| Stem Hex (in.) | 3/4 in (1.91 cm) |
| Thread | 9/16 in-18 |
| Type | Field Attachable Coupling, Type: T for G2 2 |
Interchanges & Equivalent parts:
| G28170-0606 |
| 723181231 |
