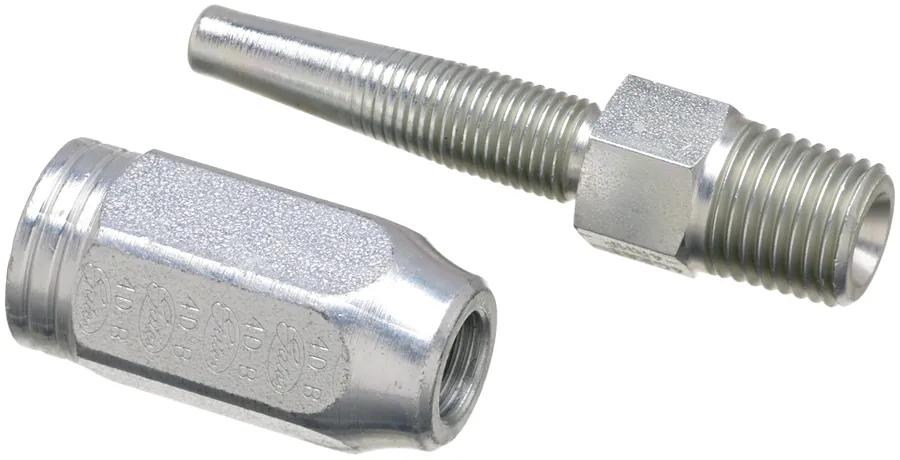

Field Attachable Coupling, Type: T for G2 2, 6C2AT-6RMP
#GATG28100-0606
Product Overview
Need to Fix a Hydraulic Assembly in a Remote Location w/o Electricity?
Features & Benefits
- Be Sure to Clean the Hose & Finished Assembly as Needed to Avoid System Contamination.
- Field Attachable Type T Couplings for G1 (1-Wire) & G2 (2-Wire) Hose Are a Solution When Crimping is Not an Option.
- A Square Cut on the End of the Hose, Some Oil, a Vice & an Adjustable Wrench Are All ThatÆs Needed for Field Attachable Coupling Installation.
Specifications
| Coupling Description | Field Attachable Type T for G2 2-Wire Hose Male Pipe (NPTF - 30 Cone Seat) |
| Cut Off (in) – C | 1-19/64 in (3.3 cm) |
| Hose Recommendation | Gates 2-Wire - Global G2; Global G2L PolarFlex (-4 through -24); Hot Oiler |
| Industrial Description | 6C2AT-6RMP |
| Inside Diameter | 3/8 in (0.97 cm) |
| Length | 2-17/32 in (6.43 cm) |
| Stem Hex (in.) | 11/16 in (1.75 cm) |
| Type | Field Attachable Coupling, Type: T for G2 2 |
Interchanges & Equivalent parts:
| G28100-0606 |
| 723181224 |
