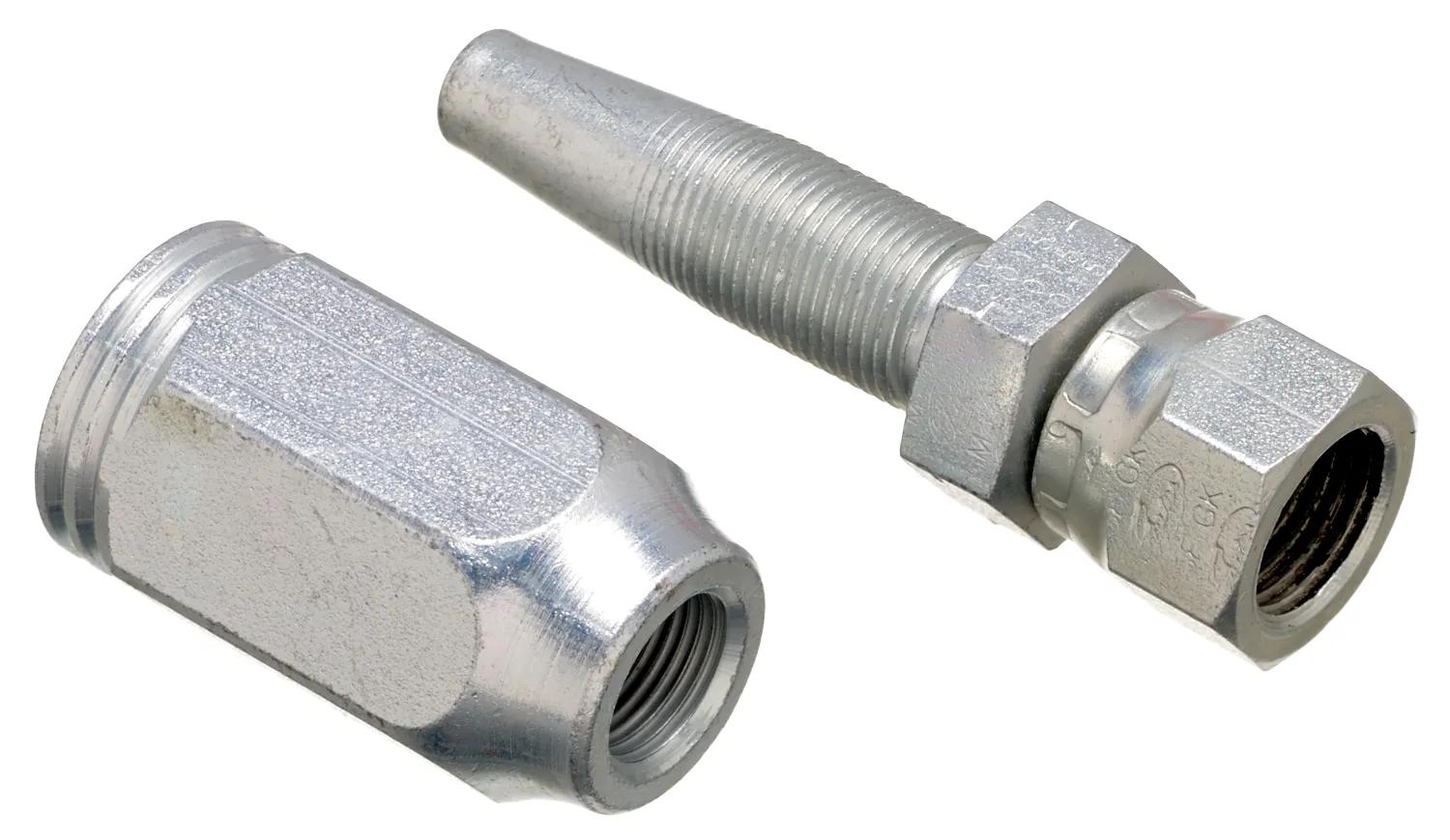

Field Attachable Coupling, Type: T for G2 2, 8C2AT-10RFJX
#GATG28170-0810
Product Overview
Need to Fix a Hydraulic Assembly in a Remote Location w/o Electricity?
Features & Benefits
- Be Sure to Clean the Hose & Finished Assembly as Needed to Avoid System Contamination.
- Available in common threads for 4G2 through 20G2H/24G2H
- A Square Cut on the End of the Hose, Some Oil, a Vice & an Adjustable Wrench Are All ThatÆs Needed for Field Attachable Coupling Installation.
Specifications
| Coupling Description | Field Attachable Type T for G2 2-Wire Hose Female JIC 37 Flare Swivel |
| Cut Off (in) – C | 1-59/64 in (4.88 cm) |
| Hose Recommendation | Gates 2-Wire - Global G2; Global G2L PolarFlex (-4 through -24); Hot Oiler |
| Industrial Description | 8C2AT-10RFJX |
| Inside Diameter | 1/2 in (1.27 cm) |
| Length | 3-11/32 in (8.48 cm) |
| Nut Hex (in) – H2 | 1-1/16 in (2.7 cm) |
| Nut Hex Size | 1-1/16 in (2.69 cm) |
| Product Number | 723181234 |
| Stem Hex (in.) | 13/16 in (2.06 cm) |
| Type | Field Attachable Coupling, Type: T for G2 2 |
Interchanges & Equivalent parts:
| G28170-0810 |
| 723181234 |
