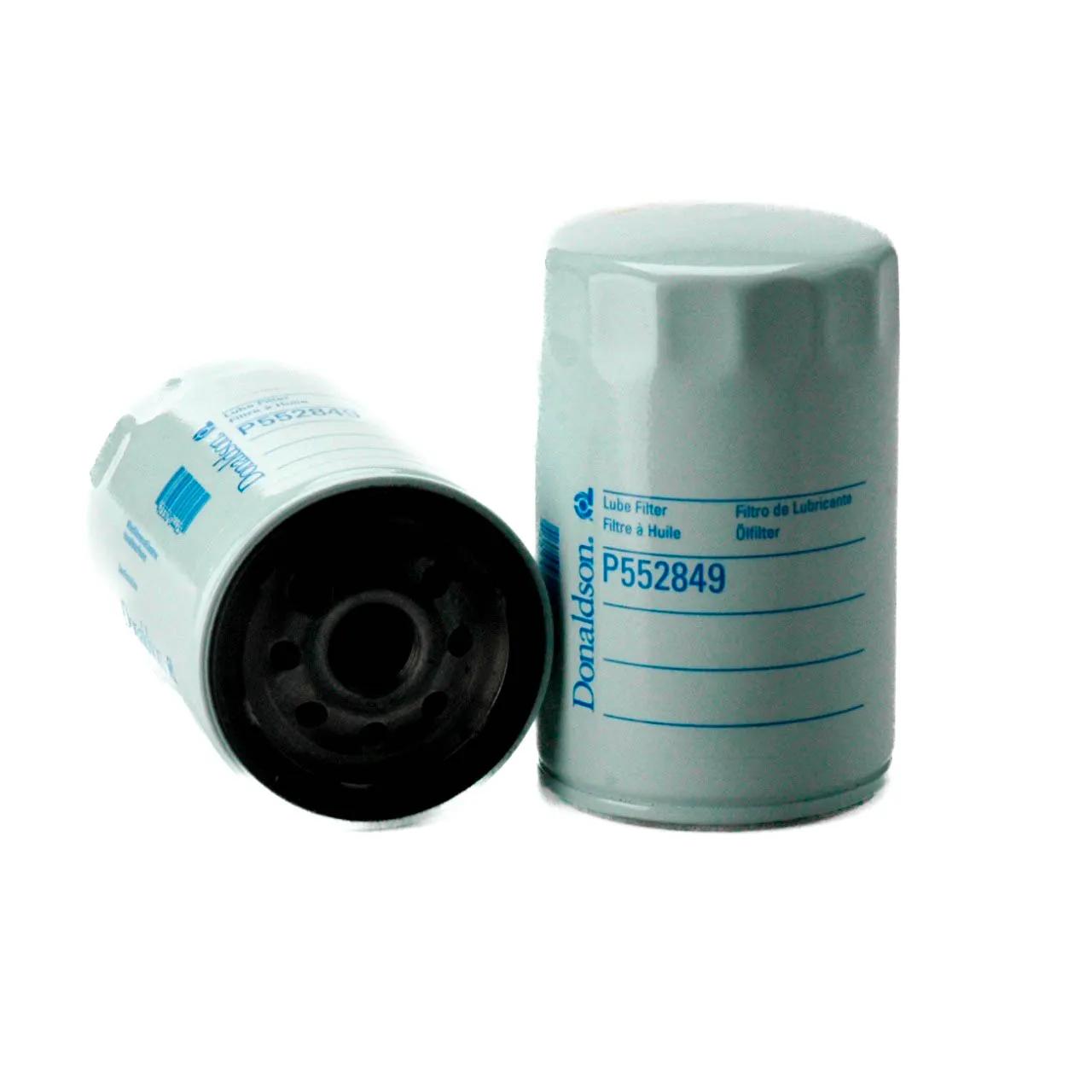

Donaldson Full-Flow Spin-On Engine Oil Filter, 4.77 in Length, M20 x 1.5 Thread, 2.95 in Outer Diameter
#DONP552849
Product Overview
Lube Filter, Full-Flow, Cellulose Media, Anti-Drainback Valve: Yes, Yes Bypass Valve, Collapse Burst Pressure: 75 psi, Filter Rating: 36 micron, 2.40 in Gasket I.D., 2.76 in Gasket O.D., 15 psi High, 12 psi Low Pressure, Standards: SAE J1858, Spin-On, M20 x 1.5 Thread, 4.76 in L
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
- Deliver essential engine protection for maximum cold flow performance
Specifications
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Gasket ID | 2.4 in (61 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 4.77 in (121.2 mm) |
| Style | Spin-On |
| Thread Size | M20 x 1.5 |
| Collapse Burst Pressure | 75 psi |
| Filter Rating | 36 micron |
| Filter Type | Full-Flow |
| Thread Size | M20 x 1.5 |
| Media Type | Cellulose |
| Pressure Rating | 15 psi High, 12 psi Low |
| Standards | SAE J1858 |
| Width | 2.95 in |
| Product Category | Lube Filter |
Interchanges & Equivalent parts:
| AL73 |
| B141 |
| B161 |
| B161S |
| B199 |
| BT310 |
| 85083 |
| 85318 |
| 85338 |
| 85347 |
| 85380 |
| 85568 |
| 3123004 |
| 3160000 |
| 3167004 |
| F208 |
| OF16 |
| OF21 |
| PH2700 |
| PH2810 |
| PH2849 |
| PH2856 |
| 2849 |
| 3664 |
| L2849 |
| L289 |
| L802 |
| OF2849 |
| 2025 |
| 662 |
| FFUP419 |
| LF3714 |
| LF3960 |
| LF716 |
| LFR83361 |
| LFR83536 |
| LFR83624 |
| LFR83776 |
| LFR83812 |
| LFR8716 |
| LFR8798 |
| DG2849A |
| PH2849A |
| PH3592 |
| PH3917 |
| PH4703A |
| PH4913 |
| PH5046 |
| PH5195 |
| GP24 |
| GP2849A |
| 136 |
| 148A |
| 386A |
| LF148 |
| LF242 |
| LF386 |
| P136 |
| H90W25 |
| L60 |
| L60A |
| LFP5522 |
| PH2801 |
| PH2903 |
| W61081 |
| W7199 |
| W81383 |
| W81780 |
| W81899 |
| W91797 |
| W9205 |
| W6106 |
| W81480 |
| MH3305 |
| MH3314J |
| MH332 |
| MH332P |
| MH332X |
| MH366P |
| T57 |
| T7311 |
| AFL36 |
| EFL091 |
| EFL129 |
| EFL130 |
| EFL155 |
| EFL254 |
| EFL290 |
| EFL361 |
| EFL383 |
| FL295 |
| FL295DP |
| FL306 |
| FL752 |
| FL791 |
| FL799 |
| FL814 |
| FL837 |
| SFL262 |
| 1083 |
| 1318 |
| 1347 |
| 1380 |
| 1568 |
| 21347 |
| 21380 |
| 21626 |
| 131302 |
| 131307 |
| 131406 |
| 131903 |
| A73 |
| A73PLUS |
| FCO321 |
| FCO73 |
| L20073 |
| L24458 |
| PER194 |
| PER289 |
| PER321 |
| PER4458 |
| PER4619 |
| PER73 |
| PER74 |
| PER75MAZDA |
| PL14619 |
| PL24458 |
| Z184 |
| Z44 |
| C10011 |
| C15171 |
| C1602 |
| C1713 |
| C1701 |
| OF4619 |
| SP4065 |
| S02849 |
| S02856 |
| SO2801 |
| SO2856A |
| STP2801 |
| STP2849 |
| STP2856 |
| SFO4459B |
| 9350576 |
| PS284 |
| CL3593A |
| 07383202000 |
| OF7662 |
| PF57 |
| B168 |
| 2175282 |
| 25914300 |
| 63623802 |
| 64414300 |
| 22214300 |
| 77823802 |
