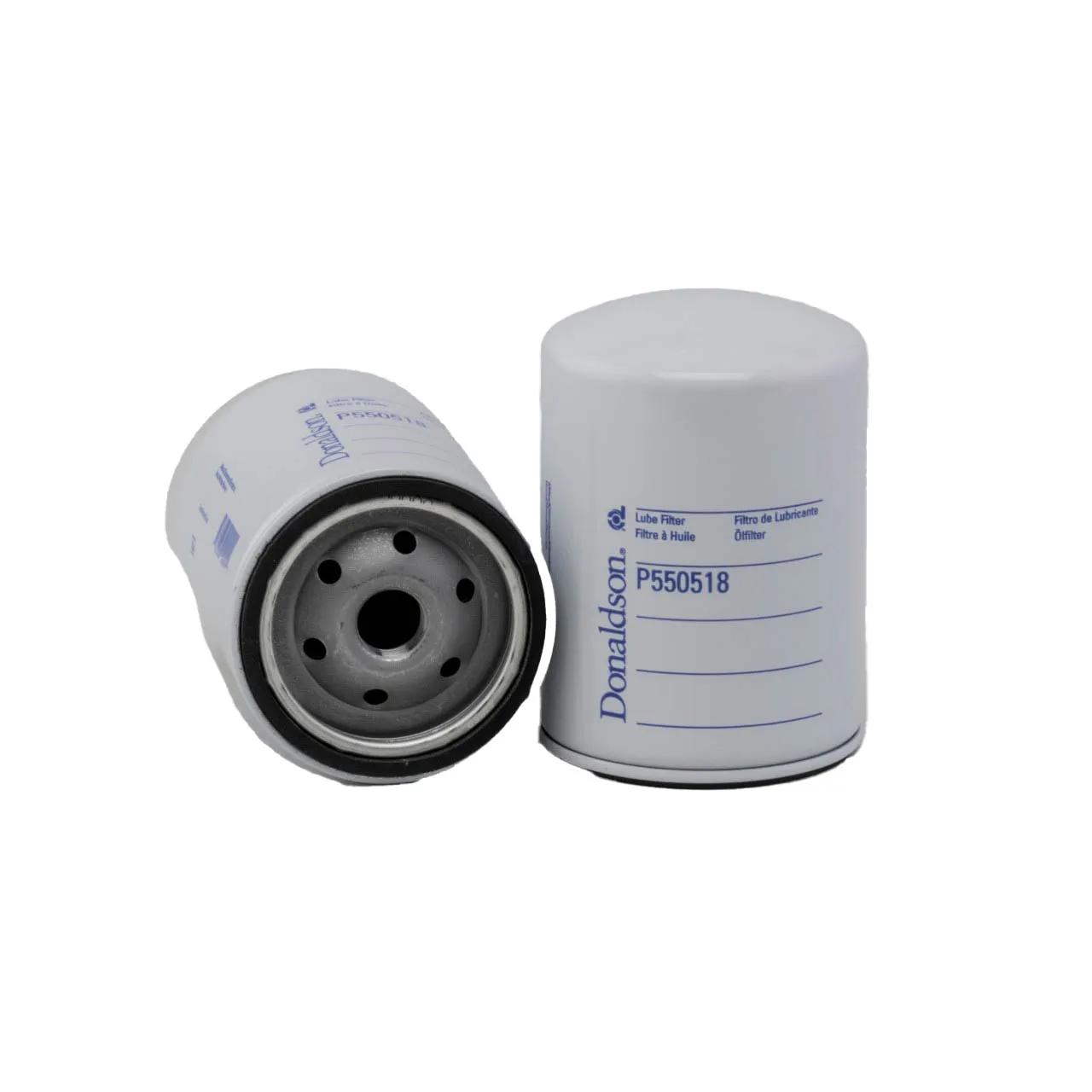

Donaldson Full-Flow Spin-On Engine Oil Filter, 5.36 in Length, 13/16-16 UN Thread, 3.7 in Outer Diameter
#DONP550518
Product Overview
Lube Filter, Full-Flow, Cellulose Media, Anti-Drainback Valve: Yes, Yes Bypass Valve, Collapse Burst Pressure: 100 psi, Filter Rating: 20 micron, 3.11 in Gasket I.D., 3.46 in Gasket O.D., 15 psi High, 12 psi Low Pressure, Standards: SAE HS806, Spin-On, 13/16-16 UN Thread, 5.35 in L
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
- Deliver essential engine protection for maximum cold flow performance
Specifications
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 1 bar |
| Bypass Valve Setting LR | 0.8 bar |
| Efficiency 99% | 20 Micron |
| Efficiency Test Std | SAE HS806 |
| Gasket ID | 3.11 in (79 mm) |
| Gasket OD | 3.46 in (87.9 mm) |
| Length | 5.36 in (136.2 mm) |
| Style | Spin-On |
| Thread Size | 13/16-16 UN |
| Collapse Burst Pressure | 100 psi |
| Filter Rating | 20 micron |
| Filter Type | Full-Flow |
| Thread Size | 13/16-16 UN |
| Media Type | Cellulose |
| Pressure Rating | 15 psi High, 12 psi Low |
| Standards | SAE HS806 |
| Width | 3.7 in |
| Product Category | Lube Filter |
Interchanges & Equivalent parts:
| B1441 |
| 84202 |
| 84202MP |
| LFP2999 |
| LF16102 |
| LFR816102 |
| PH9100 |
| TG9100 |
| LF524 |
| SO10057 |
| L7202 |
| 35881126K01 |
| 8M0024825 |
| MO9100 |
| 7202 |
| 7202MP |
| 37202 |
| 27202MP |
| L35399 |
| PFL5515 |
| OF5399 |
| 57202 |
| 57202MP |
| PF2232 |
| EAO52 |
| G84 |
| CFA524AP |
| 91202 |
| CF524 |
| 97214983 |
| 88917036 |
| C5399 |
| V5399 |
| T49 |
| 8972149831 |
| 8972149834 |
| M2999 |
| MO5399 |
| FE373 |
| PZ59 |
| SL35399 |
| 19502805 |
| PH5399 |
| PO5399 |
| PO9100 |
| QS9100 |
| SH49 |
| VO75 |
| LF550518 |
| WLFP2999 |
| 47202 |
| 27202 |
| 67202 |
| DN P550518 |
| DN P550518 |
| 10024942 |
| 2191-P550518 |
| DONP550518 |
| FIL7202 |
| FL57202 |
| LF16102FLG |
| LF001 |
| HM-3003 |
| RTO59 |
| WIX57202 |
| 2720MP |
| W14007 |
| VO-9100 |
| RTO-59 |
| PPG5399 |
| CL9100 |
| 67202X |
| FD9100 |
| CPH9100 |
| R84202MP |
| QFL4 |
| CAS9100 |
| HPZ-59 |
| M1-303A |
| LFP2999R |
| SO-3003 |
| R84202 |
| LF524F |
| PG5399F |
| FS9100 |
| DA2251110 |
| FF9100 |
| PH9100FP |
| S9100 |
| PG5399 |
| MPH9100 |
| 30-2999 |
| M1-303 |
| SFO5399 |
| E5399 |
| PO-59 |
| M5399 |
| PZ-59 |
| 57202XP |
