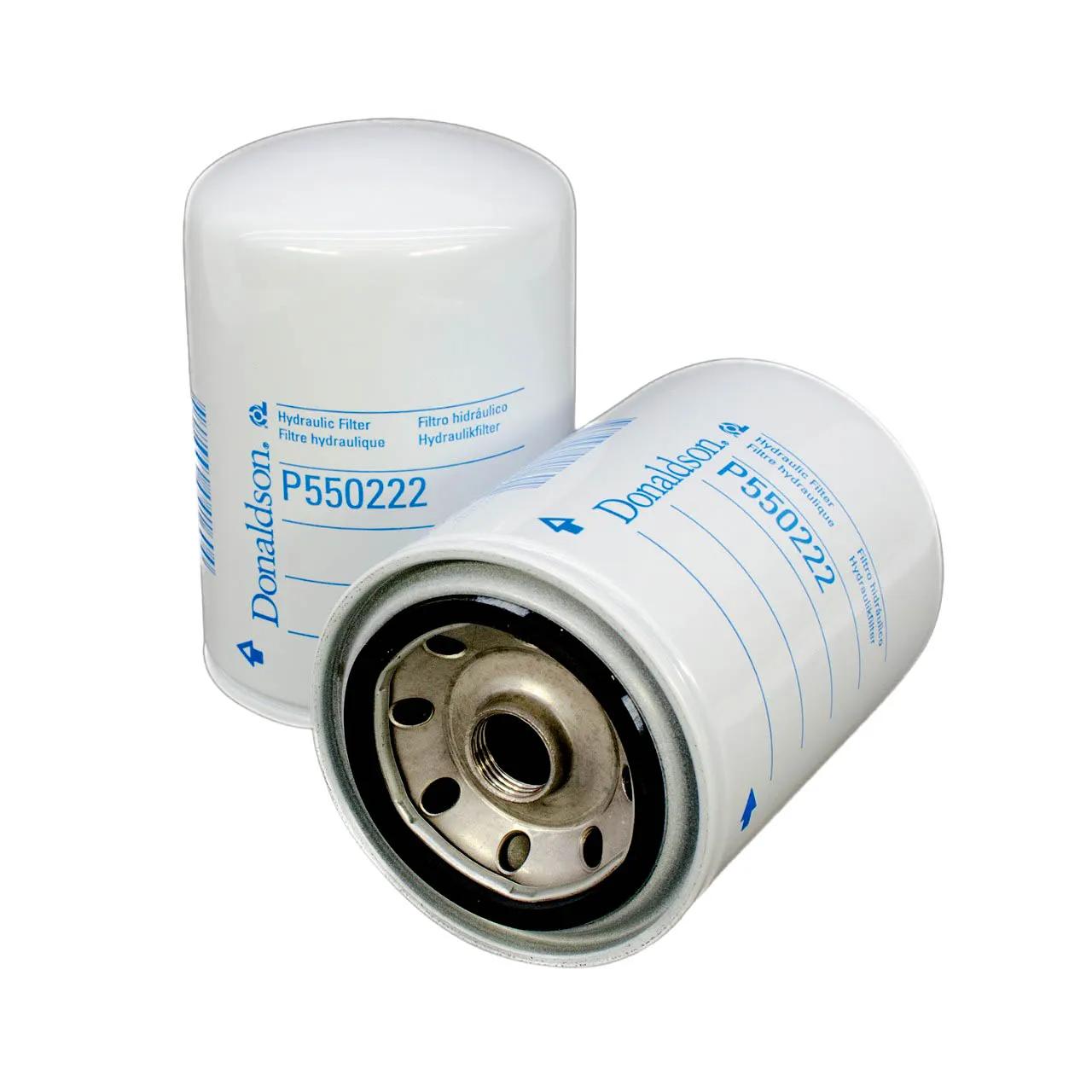

Hydraulic Filter, Spin-On L: 5,37 in, Thread : 3/4-16 UN , OD: 3,66 in
#DONP550222
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Anti-Drainback Valve | Yes |
| Application | ALLISON 25010543 |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 0.7 bar |
| Bypass Valve Setting LR | 0.5 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 2 | 17 Micron |
| Efficiency Test Std | SAE J1858 |
| Gasket ID | 2.44 in (62 mm) |
| Gasket OD | 2.83 in (71.9 mm) |
| Length | 5-3/8 in (13.67 cm) |
| Outer Diameter | 3-21/32 in (9.3 cm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 3/4-16 UN |
Interchanges & Equivalent parts:
| B252 |
| BT8328 |
| BT8434 |
| 85622 |
| OF407 |
| HF6107 |
| HFR86107 |
| HFR86351 |
| LFR83466 |
| FC1023 |
| HP1 |
| P8427 |
| PH7497 |
| PH7650 |
| PH8 |
| HF978 |
| LF140 |
| P140 |
| SH56157 |
| SN56157 |
| 561356 |
| KL125059 |
| L1 |
| LFP1T |
| WD10009 |
| FL338 |
| FT74 |
| 1622 |
| 6940571 |
| L39001 |
| SPH9820 |
| 51622 |
| HD222 |
| HD222L |
| 4855745 |
| 4910810 |
| 690348 |
| 25010543 |
| 2009 |
| 92622 |
| 473663C1 |
| C9AF9601A |
| E063337 |
| E7TZ6731A |
| 3I1161 |
| CO1 |
| 15590 |
| 1777935 |
| 992221 |
| HSM6002 |
| D545 |
| 17237 |
| 513498801 |
| FT4677 |
| 220425 |
| 2220425 |
| 4119015 |
| 259642 |
| 97520500220 |
| 1617128 |
| DONN6714B |
| E9TE6714B1A |
| V82DB7A203M |
| DNP550222 |
| 26C1 |
| 26C2 |
| L88031 |
| 80384045 |
| 59501519 |
| 1328691 |
| 132869112 |
| 29786512 |
| 38490447 |
| 83196 |
| 89761822820 |
| LF10HP |
| 11328691 |
| 486319 |
| 2654404 |
| D1980 |
| XJ0810H |
| 93316002190 |
| 971215 |
| 785203020071 |
| 688376 |
| T081066 |
| HF550222 |
| LF550222 |
| 4804651 |
| 811289 |
| WGH6107 |
| WGH9107 |
| 5134988 |
| 513498800 |
| 513498802 |
| 513498803 |
| 51349881 |
| 51349882 |
| 51349883 |
| 580007144 |
| 900506401 |
| 9047881 |
| DN P550222 |
| DN P55022 |
