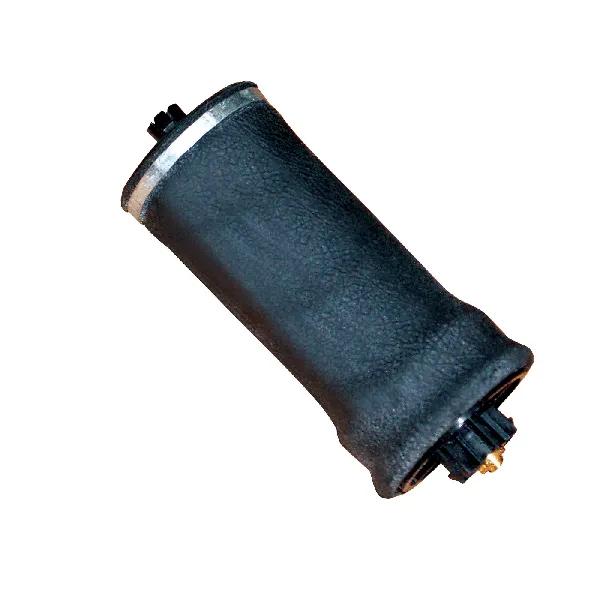

Firestone Air Spring 1T Reversible Sleeve - 10.1 in Extended, 4.5 in Compressed Length

#FIRW02-358-7205

Product Overview

Firestone Airide™ springs are the industry standard for air suspension systems, engineered with advanced design and materials for superior performance and durability. This 1T reversible sleeve air spring features a compressed length of 4.5 inches and an extended length of 10.1 inches, making it ideal for Freightliner, Western Star, and Constellation applications. Firestone's commitment to quality ensures reliable operation and long service life in demanding vehicular air suspension systems.Air Spring, 1T - Reversible Sleeve Air Spring, 4.5 in Compressed Length, 10.1 in Extended Length, 2.9 in W

Features & Benefits

1T reversible sleeve air spring design

Compatible with Freightliner, Western Star, and Constellation vehicles

Extended length approximately 10.1 inches

Compressed length approximately 4.5 inches

Stud bottom and top mounts for secure installation

Lightweight design at approximately 1.2 lb (0.54 kg)

Specifications

Air Spring Type	1T Reversible Sleeve
Application	FREIGHTLINER/WESTERN STAR, CONSTELLATION (SUPERSEDES 7203)
BCR (in.)	8 in
Bottom Mount	Stud
Cap Number	6987, NBD-15430
Compressed Length	4-1/2 in
Diameter	2-7/8 in
Extended Length	10-3/32 in
Piston Height	1-31/64 in
Piston Number	6986, NBD-15431
Top Mount	Stud
Weight	1.2 lb (0.54 kg)
Width	2.9 in
Fits Models	Freightliner, Western Star, Constellation
Product Category	Air Spring
