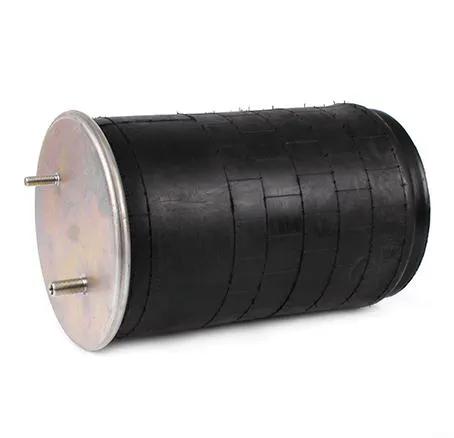

Firestone Air Spring 1T Reversible Sleeve, 10.2 in Compressed Length, 33.8 in Extended Length

#FIRW01-358-9896

Product Overview


Although air springs are produced in single, double, and triple convoluted and reversible sleeve styles, only those manufactured by Firestone Industrial Products Company bear the trademark “Airide™.” Airide springs were pioneered and perfected by Firestone, and only Firestone offers a complete line of Airide springs, with replacement springs available for virtually every vehicular air suspension system. Today, Airide springs are used by practically all manufacturers who offer air suspension on their vehicles. While it may appear simple, an air spring is actually a highly sophisticated and complex product. Even slight changes in design, methods of construction, or materials used can make vast and significant differences in performance. It makes good sense to specify Airide springs by Firestone. That trade name on an air spring guarantees you the benefit of the very latest technical developments and improvements. It is your assurance of a product not only engineered and perfected to perform, but which also has a long history of superior performance in actual use.Air Spring, 1T Reversible Sleeve Air Spring, 10.2 in Compressed Length, 33.8 in Extended Length, 10.62 in Width

See More
See Less

Specifications


Air Spring Type 1T Reversible Sleeve
Application Neway 90557144, Rotate Piston, 90557133-28 Degrees RH, 90557134-28 Degrees LH, 90557148 Parallel
Bellows 1T19L-16
Bottom Plate Diameter 10-1/4 in
Bottom Plate Hole/Stud Qty 4
Compressed Length 10.2 in
Extended Length 33.8 in
Height 8-1/2 in
Length 10-5/8 in
Loading Capacity at 20 psig 1760 lb-ft
Loading Capacity at 60 psig 5280 lb-ft
Material Natural Rubber
Temperature 57°C @ -54°C (134.6°F @ -65.2°F)
Top Plate Hole/Stud Qty 2
Weight 25.5 lb (11.56 kg)
Width 10.62 in
Capacity 7920 lb-ft
Finish Flat
Includes Stud
Product Category Air Spring

Interchanges & Equivalent parts:


352-9896
90557133
90557134
90557144
90557148
AB9896
FIR9896
FI W01 358 9896
FS9896
FSIW013589896
W013589896
TWDW013589896
68151
SRK626
9 10-13.5 P 874
90557363
9807
SRK627
SRK628
SRK629
W013589807
W01-358-9896
90557133-28
90557134-28
