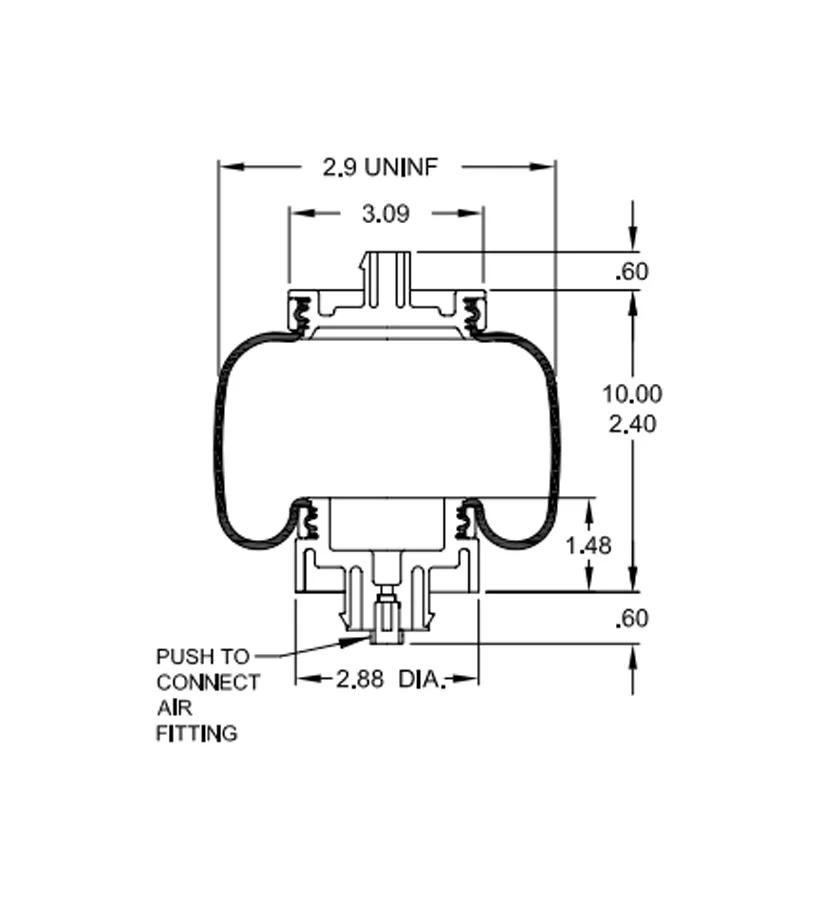

Firestone Air Spring 1T Reversible Sleeve, 2.4 in Compressed Length, 10 in Extended Length

#FIRW02-358-7109

Product Overview


Although air springs are produced in single, double, triple convoluted, and reversible sleeve styles, only those manufactured by Firestone Industrial Products Company bear the trademark “Airide™.” Airide springs were pioneered and perfected by Firestone, and only Firestone offers a complete line of Airide springs, with replacement springs available for virtually every vehicular air suspension system. Today, Airide springs are used by practically all manufacturers who offer air suspension on their vehicles. While it may appear simple, an air spring is actually a highly sophisticated and complex product. Even slight changes in design, methods of construction, or materials used can make vast and significant differences in performance. It makes good sense to specify Airide springs by Firestone. That trade name on an air spring guarantees you the benefit of the very latest technical developments and improvements. It is your assurance of a product not only engineered and perfected to perform, but which also has a long history of superior performance in actual use.Air Spring, 1T - Reversible Sleeve Air Spring, 2.4 in Compressed Length, 10 in Extended Length, 2.9 in W

See More
See Less

Specifications


Air Spring Type 1T Reversible Sleeve
Application LINK MANUFACTURING LTD 1102-0077 (KW), T81-1000,KENWORTH
Bottom Mount Stud
Compressed Length 2-13/32 in
Extended Length 10 in
Height 1-31/64 in
Length 7-7/8 in
Piston Number 6894, NBD-14218
Top Mount Stud
Weight 1 lb (0.45 kg)
Width 2.9 in
Product Category Air Spring

Interchanges & Equivalent parts:


353-7109
EB7109
T81-1000
1104K002
FI W02 358 7109
FS7109
FSIW023587109
G2297109600
W023587109
1102-K077
11020077
TWDW023587109
WA02-7109C
T811000
W02-358-7109
