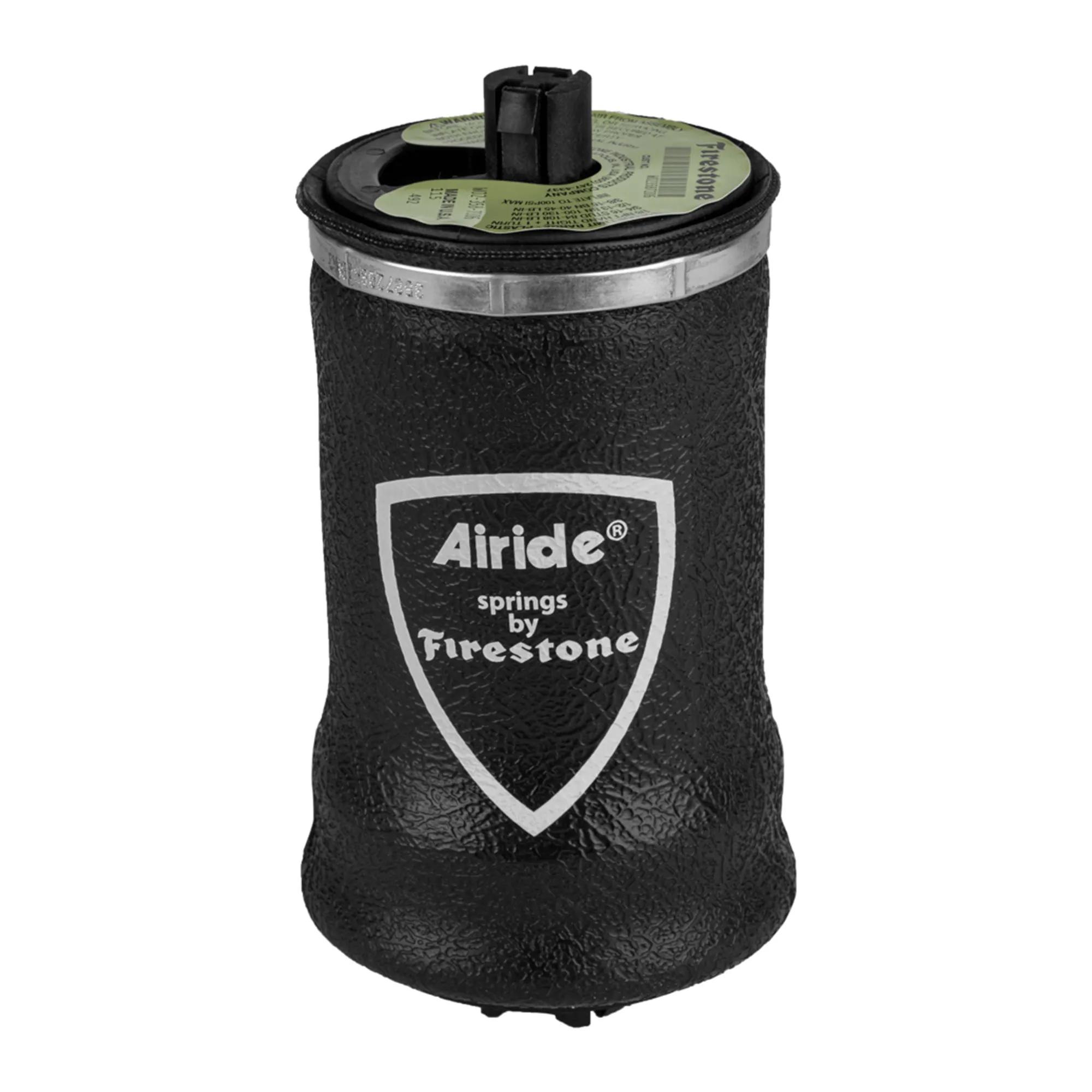

Firestone Air Spring 1T Reversible Sleeve, 3 in Compressed Length, 7.5 in Extended Length

#FIRW02-358-7206

Product Overview


Air springs are produced in single, double, triple convoluted, and reversible sleeve styles, but only those manufactured by Firestone Industrial Products Company bear the trademark “Airide™.” Airide springs were pioneered and perfected by Firestone, offering a complete line of airide springs with replacement options for virtually every vehicular air suspension system. Used by nearly all manufacturers offering air suspension, these springs are highly sophisticated products where slight changes in design, construction, or materials significantly impact performance. Specifying Airide springs by Firestone guarantees the latest technical developments and improvements, ensuring superior performance and durability. This model is a 1T reversible sleeve air spring with a compressed length of 3 in and an extended length of 7.5 in.Air Spring, 1T - Reversible Sleeve Air Spring, 3 in Compressed Length, 7.5 in Extended Length, 2.9 in W

See More
See Less

Specifications


Air Spring Type 1T Reversible Sleeve
Application FREIGHTLINER 18-29919-000, CENTURY CLASS & ARGOSY COE, (W02-377-7202) 2002 AND EARLIER (REPLACES 7202)
BCR (in.) 6-1/2 in
Bottom Mount Stud
Cap Number 6987, NBD-15430
Compressed Length 3 in
Diameter 2-7/8 in
Extended Length 7-1/2 in
Piston Height 1-31/64 in
Piston Number 6986, NBD-15431
Top Mount Stud
Weight 1.2 lb (0.54 kg)
Width 2.9 in
Product Category Air Spring

Interchanges & Equivalent parts:


353-7206
ZAGA7206
1000-AS7206
18-29919-000
3040-W023587206
ABP N32 027206
AS7206
CB7206
FI W02 358 7206
FSIW023587206
G2297206600
RC AS7206
S-23510
SC31-W206
TR7206
TWDW023587206
W02-372-7202
W023587206
WA02-7202C
W02-358-7206
