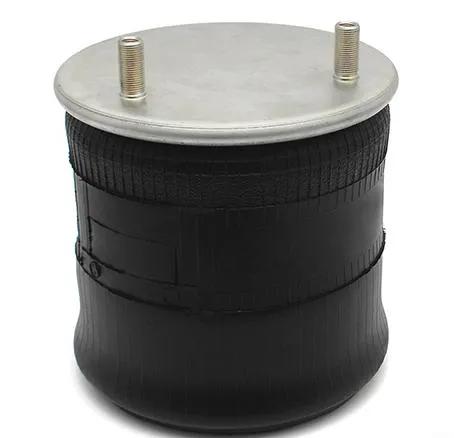

Firestone Air Spring 1T Reversible Sleeve, 5.6 in Compressed Length, 17.8 in Extended Length

#FIRW01-358-8753

Product Overview


Although air springs are produced in single, double, and triple convoluted and reversible sleeve styles, only those manufactured by Firestone Industrial Products Company bear the trademark “Airide™.” Airide springs were pioneered and perfected by Firestone, and only Firestone offers a complete line of Airide springs, with replacement springs available for virtually every vehicular air suspension system. Today, Airide springs are used by practically all manufacturers who offer air suspension on their vehicles. While it may appear simple, an air spring is actually a highly sophisticated and complex product. Even slight changes in design, methods of construction, or materials used can make vast and significant differences in performance. It makes good sense to specify Airide springs by Firestone. That trade name on an air spring guarantees you the benefit of the very latest technical developments and improvements. It is your assurance of a product not only engineered and perfected to perform, but which also has a long history of superior performance in actual use.Air Spring, 1T Reversible Sleeve Air Spring, 5.6 in Compressed Length, 17.8 in Extended Length, 10.12 in Width

See More
See Less

Specifications


Air Spring Type 1T Reversible Sleeve
Application Ridewell 1003588753C, Watson & Chalin AS-0098
Bellows 1T17B-5
Bottom Mount Flat
Bottom Plate Diameter 9-1/2 in
Bottom Plate Hole/Stud Qty 4
Compressed Length 5.6 in
Diameter 10-1/8 in
Extended Length 17.8 in
Material Natural Rubber
Piston Height 3-29/32 in
Temperature 57°C @ -54°C (134.6°F @ -65.2°F)
Top Mount Stud
Top Plate Diameter 10-3/8 in
Top Plate Hole/Stud Qty 2
Weight 15.4 lb (6.98 kg)
Width 10.12 in
Capacity 1740 lb-ft at 20 psig, 5220 lb-ft at 60 psig, 7830 lb-ft at 90 psig
Product Category Air Spring

Interchanges & Equivalent parts:


352-8753
AB8753
FIR8753
AS8753
FI W01 358 8753
FSIW013588753
G2298753300
1003588753C
1R13207
W013588753
10 10-15 S 713
AS-0098
TR8753
TWDW013588753
8753
AS0098
AS0098-01FK
W01-358-8753
1R13-207
TA-250-14
TA-250-15
TA-250-16
TA-250-17
