Firestone Air Spring 1T Reversible Sleeve, 5.6 in Compressed Length, 17.9 in Extended Length, Model 1T17B-5

#FIRW01-358-8782

Product Overview


Although air springs are produced in single, double, triple convoluted, and reversible sleeve styles, only those manufactured by Firestone Industrial Products Company bear the trademark “Airide™.” Airide springs were pioneered and perfected by Firestone, and only Firestone offers a complete line of Airide springs, with replacement springs available for virtually every vehicular air suspension system. Today, Airide springs are used by practically all manufacturers who offer air suspension on their vehicles. While it may appear simple, an air spring is actually a highly sophisticated and complex product. Even slight changes in design, methods of construction, or materials used can make vast and significant differences in performance. It makes good sense to specify Airide springs by Firestone. That trade name on an air spring guarantees you the benefit of the very latest technical developments and improvements. It is your assurance of a product not only engineered and perfected to perform, but which also has a long history of superior performance in actual use.Air Spring, 1T Reversible Sleeve Air Spring, 5.6 in Compressed Length, 17.9 in Extended Length, 10.12 in Width

See More
See Less

Features & Benefits


  • Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
  • Today, Airide Springs are Used by Practically All Manufacturers Who Offer Air Ride Suspensions on Their Vehicles.
  • Airide Springs Were Pioneered & Perfected by Firestone, and Only Firestone Offers a Complete Line of Airide Springs.

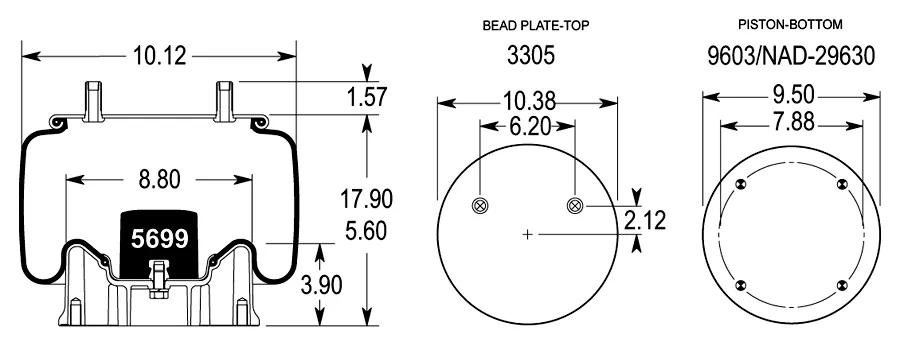

Specifications


Air Inlet 1/4 in NPT
Air Spring Type 1T Reversible Sleeve
Application Ridewell 1001R13109G
Bead Plate (Top) & Deflated Bellows O.D. 10.38 in @ 10.12 in
Bottom Plate Diameter 9-1/2 in
Bottom Stud Configuration 3/8 in-16 UNC
Bottom Plate Hole/Stud Qty 4
Compressed Length 5.6 in
Diameter 10-1/8 in
Extended Length 17.9 in
Firestone Bellows Number 1T17B-5
Piston (Bottom) Mounting Bolt Dimensions Center to Center 7-7/8 in
Piston Height 3-29/32 in
Top Plate Diameter 10-3/8 in
Weight 15.6 lb (7.07 kg)
Width 10.12 in
Product Category Air Spring

Interchanges & Equivalent parts:


352-8782
AB8782
FIR8782
AS87820
FI W01 358 8782
FSIW013588782
G2298782300
REA1R13-109
REAW013588782
TWDW013588782
1R13109
W013588782
1003588782C
W01-358-8782
1010-15S871
AS8782
10 10-15 S 871
1001R13109G
1R13-109
