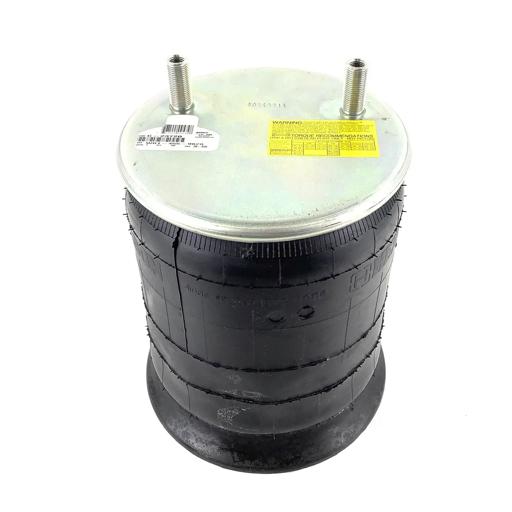

Firestone Air Spring - 1T Reversible Sleeve - 7.4 in Compressed Length - 20.7 in Extended Length - 1T15L-6

#FIRW01-358-9626

Product Overview


Although air springs are produced in single, double, triple convoluted, and reversible sleeve styles, only those manufactured by Firestone Industrial Products Company bear the trademark “Airide™.” Airide springs were pioneered and perfected by Firestone, and only Firestone offers a complete line of Airide springs, with replacement springs available for virtually every vehicular air suspension system. Today, Airide springs are used by practically all manufacturers who offer air suspension on their vehicles. While it may appear simple, an air spring is actually a highly sophisticated and complex product. Even slight changes in design, methods of construction, or materials used can make vast and significant differences in performance. It makes good sense to specify Airide springs by Firestone. That trade name on an air spring guarantees you the benefit of the very latest technical developments and improvements. It is your assurance of a product not only engineered and perfected to perform, but which also has a long history of superior performance in actual use.Air Spring, 1T Reversible Sleeve Air Spring, 7.4 in Compressed Length, 20.7 in Extended Length, 9.12 in Width

See More
See Less

Features & Benefits


  • Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
  • Today, Airide Springs are Used by Practically All Manufacturers Who Offer Air Ride Suspensions on Their Vehicles.
  • Airide Springs Were Pioneered & Perfected by Firestone, and Only Firestone Offers a Complete Line of Airide Springs.

Specifications


Air Inlet 1/4 in NPT
Air Spring Type 1T Reversible Sleeve
Application Hendrickson Trailer S23720
Bead Plate (Top) & Deflated Bellows O.D. 9 in @ 9.12 in
Bellows 1T15L-6
Bottom Plate Diameter 10-1/4 in
Bottom Stud Configuration 1/2 in-13 UNC
Compressed Length 7.4 in
Diameter 9-1/8 in
Extended Length 20.7 in
Firestone Bellows Number 1T15L-6
Loading Capacity at 20 psig 1350 lb-ft
Loading Capacity at 60 psig 4050 lb-ft
Loading Capacity at 90 psig 6075 lb-ft
Piston Height 5-11/16 in
Temperature 57°C @ -54°C (134.6°F @ -65.2°F)
Top Plate Diameter 9 in
Weight 13.4 lb (6.08 kg)
Width 9.12 in
Product Category Air Spring

Interchanges & Equivalent parts:


AB9626
S23720
1R11-292
S-23720
AA230L
AS9626
B23720
FI W01 358 9626
FS9626
FSIW013589626
G2299626200
GTK-358-9626
W013589626
8568
3040-W013589626
9 9-16 P 568
AS96260
C-23720
HENS-23720
REAW013589626
TR9626
TWDW013589626
W01-455-9626
1R11292
9626
352-9626
W01-358-9626
99-16P568
W014559626
