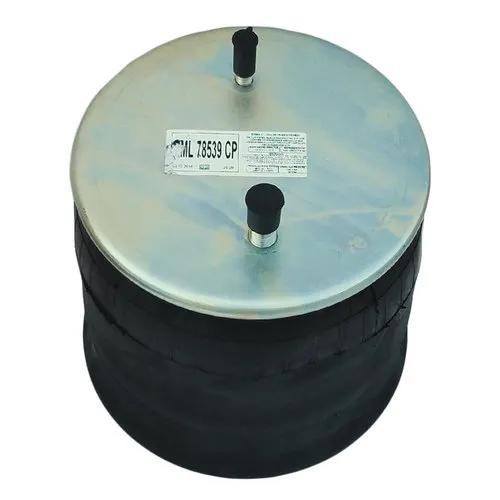

Firestone Air Spring 1T Reversible Sleeve, 8.2 in Compressed Length, 12 in Extended Length, Stud Mount

#FIRW01-358-8539

Product Overview


Although air springs are produced in single, double, and triple convoluted and reversible sleeve styles, only those manufactured by Firestone Industrial Products Company bear the trademark “Airide™.” Airide springs were pioneered and perfected by Firestone, and only Firestone offers a complete line of Airide springs, with replacement springs available for virtually every vehicular air suspension system. Today, Airide springs are used by practically all manufacturers who offer air suspension on their vehicles. While it may appear simple, an air spring is actually a highly sophisticated and complex product. Even slight changes in design, methods of construction, or materials used can make vast and significant differences in performance. It makes good sense to specify Airide springs by Firestone. That trade name on an air spring guarantees you the benefit of the very latest technical developments and improvements. It is your assurance of a product not only engineered and perfected to perform, but which also has a long history of superior performance in actual use.Air Spring, 1T Reversible Sleeve Air Spring, 8.2 in Compressed Length, 12 in Extended Length, 13.9 in Width

See More
See Less

Specifications


Type de ressort pneumatique Manchon réversible 1T
Application Dana/Spicer SR1VA101-1
Bottom Mount Goujon
Bottom Plate Diameter 10-9/64 po
Bottom Plate Hole/Stud Qty 1
Compressed Length 8,2 po
Diameter 13-29/32 po
Extended Length 12 po
Piston Height 4-47/64 po
Top Mount Goujon
Top Plate Diameter 10-3/8 po
Top Plate Hole/Stud Qty 2
Weight 30,6 lb (13,88 kg)
Width 13,9 po
Fitting Size Montage à goujon
Product Category Ressort pneumatique

Interchanges & Equivalent parts:


1R13-188
352-8539
S-SR1VA105
1R13188
452-8539L
AS85390
HENS-29892
REA1R13-188
S29892
SR1VA105
W013588539F1R
W013588539
78239
AB1DK25F-P1219
SR1JA100
SR1VA101-1
SR1VA1011
W01-358-8539
See more
