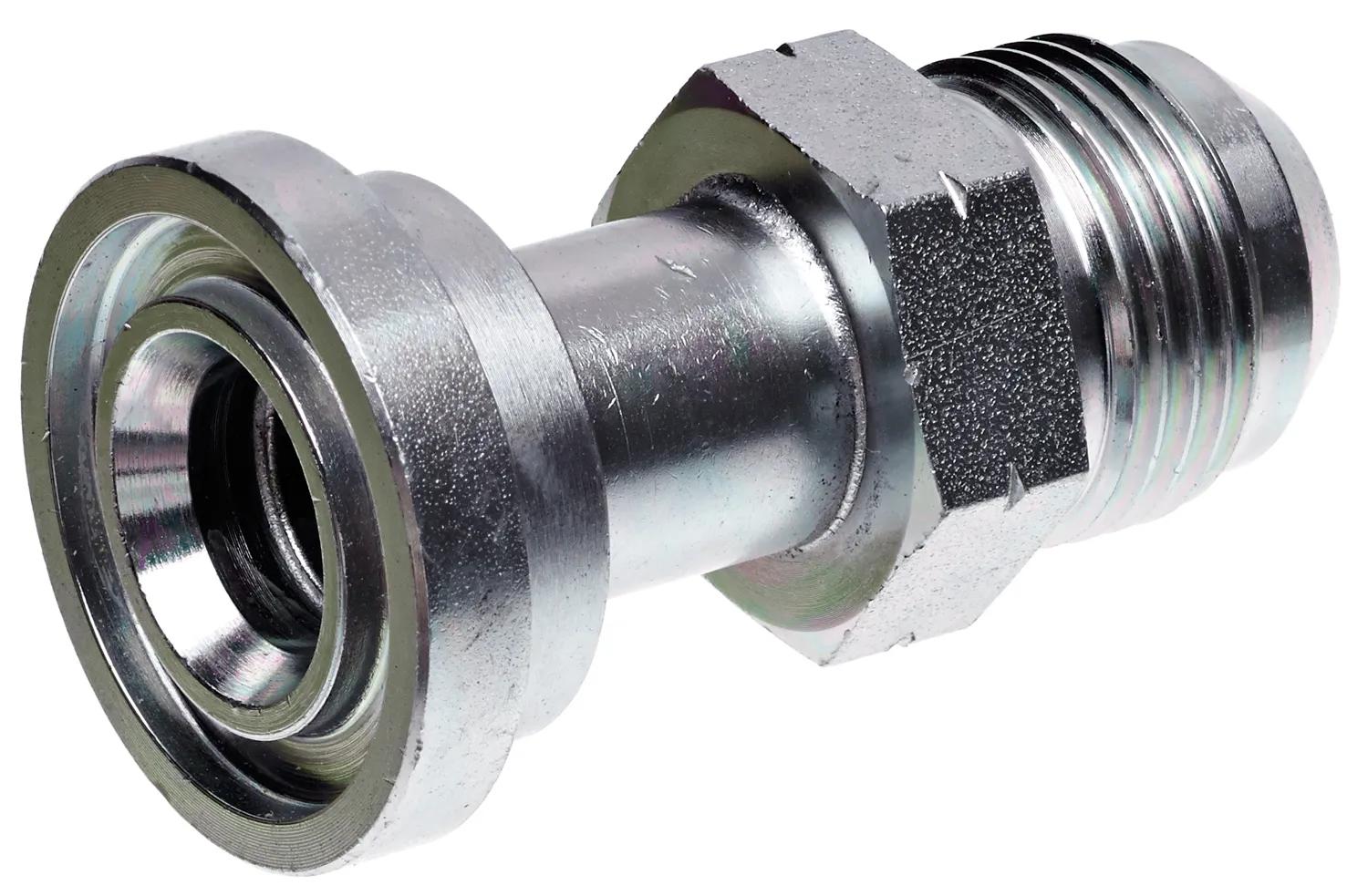

Fitting Code 61 O-Ring Flange to Male Flare, 12FL-12MJ
#GATG60900-1212
Product Overview
For Use Up to SAE 100R2 Maximum Working Pressure.
Features & Benefits
- Flange adapters rated to 6000 PSI for replacing bent tube assemblies with standard stock couplings
- Caution: Don't be Fooled by the Manufacturer's Name. John Deere, for Instance, Manufactures in Both North America & Europe, so Some Models May Have North American Threads While Others May Have International Threads.
- To Determine What Type of International Conversion Adapter Your Customer Needs, it's Helpful to First Establish the Equipment's Country of Origin. This Will Assist You in Identifying What Type of Thread End is Being Used.
Specifications
| Adapter Type | SAE to SAE |
| Diameter | 1-1/2 in (3.81 cm) |
| Flange Head Thickness (in) – F | 17/64 in (0.69 cm) |
| Height | 9 in (22.86 cm) |
| Industrial Description | 12FL-12MJ |
| Length | 9-1/4 in (23.5 cm) |
| Note | O-Ring not included. Must be ordered separately. |
| OEM Part # | 12FL-12MJ/G60900-1212 |
| Product Number | 725386932 |
| Thread | 1-1/16 in-12 |
| Type | Code 61 O-Ring Flange to Male JIC 37 Flare |
Interchanges & Equivalent parts:
| 70240-1212 |
| 702401212 |
| GYH70240-1212 |
| G60900-1212 |
| 725386932 |
