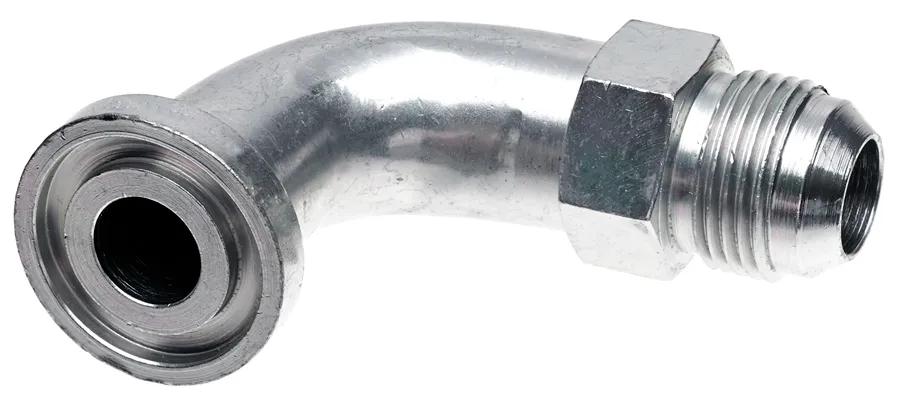

Fitting Code 61 O-Ring Flange to Male Flare, 12FL5K-12MJ90
#GATG60911-1212
Product Overview
No Braze Joints - Solid One-Piece Construction for Increased Reliability.
Features & Benefits
- O-Ring Not Included. Must be Ordered Separately.
- Flanges 1 in. (-16) & Smaller Have a Maximum Working Pressure of 5,000 PSI.
- Flanges Larger Than 1 in. Have a Working Pressure of 4,000 PSI.
Specifications
| Adapter Type | SAE to SAE |
| Angle | 90 deg |
| Diameter | 1-1/2 in (3.81 cm) |
| Flange Head Thickness (in) – F | 17/64 in (0.69 cm) |
| Industrial Description | 12FL5K-12MJ90 |
| Pressure | 5000 psi (344.73 bar) |
| Thread | 1-1/16 in-12 |
| Type | Code 61 O-Ring Flange to Male JIC 37 Flare - 90 deg - High Pressure |
Interchanges & Equivalent parts:
| G60911-1212 |
| 725313205 |
