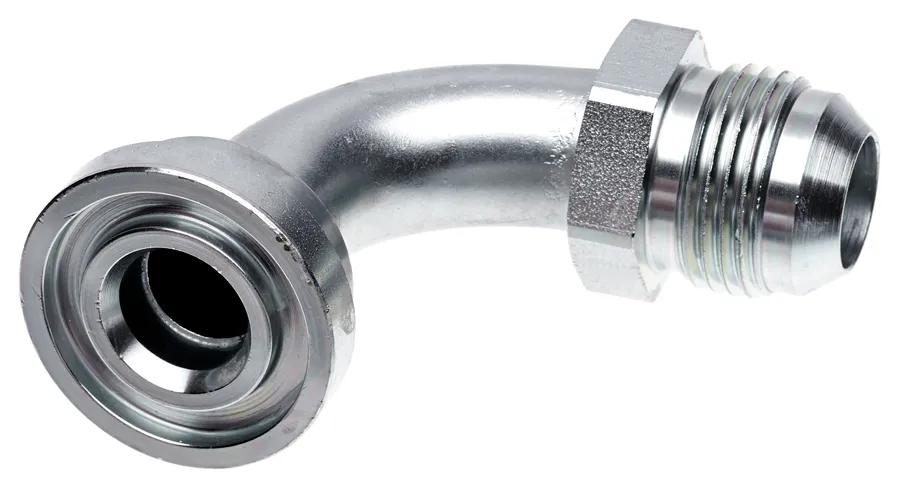

Fitting Code 61 O-Ring Flange to Male Flare, 16FL-16MJ90
#GATG60910-1616
Sommaire du produit
For Use Up to SAE 100R2 Maximum Working Pressure.
Caractéristiques et avantages
- Caution: Don't be Fooled by the Manufacturer's Name. John Deere, for Instance, Manufactures in Both North America & Europe, so Some Models May Have North American Threads While Others May Have International Threads.
- O-Ring Not Included. Must be Ordered Separately.
- To Determine What Type of International Conversion Adapter Your Customer Needs, it's Helpful to First Establish the Equipment's Country of Origin. This Will Assist You in Identifying What Type of Thread End is Being Used.
Spécifications
| Adapter Type | SAE to SAE |
| Angle | 90 deg |
| Diameter | 1-3/4 in (4.45 cm) |
| Flange Head Thickness (in) – F | 5/16 in (0.79 cm) |
| Industrial Description | 16FL-16MJ90 |
| Thread | 1-5/16 in-12 |
| Type | Code 61 O-Ring Flange to Male JIC 37 Flare - 90 deg |
Interchanges et pièces équivalentes:
| 70245-1616 |
| 702451616 |
| GYH70245-1616 |
| G60910-1616 |
| 725386946 |
