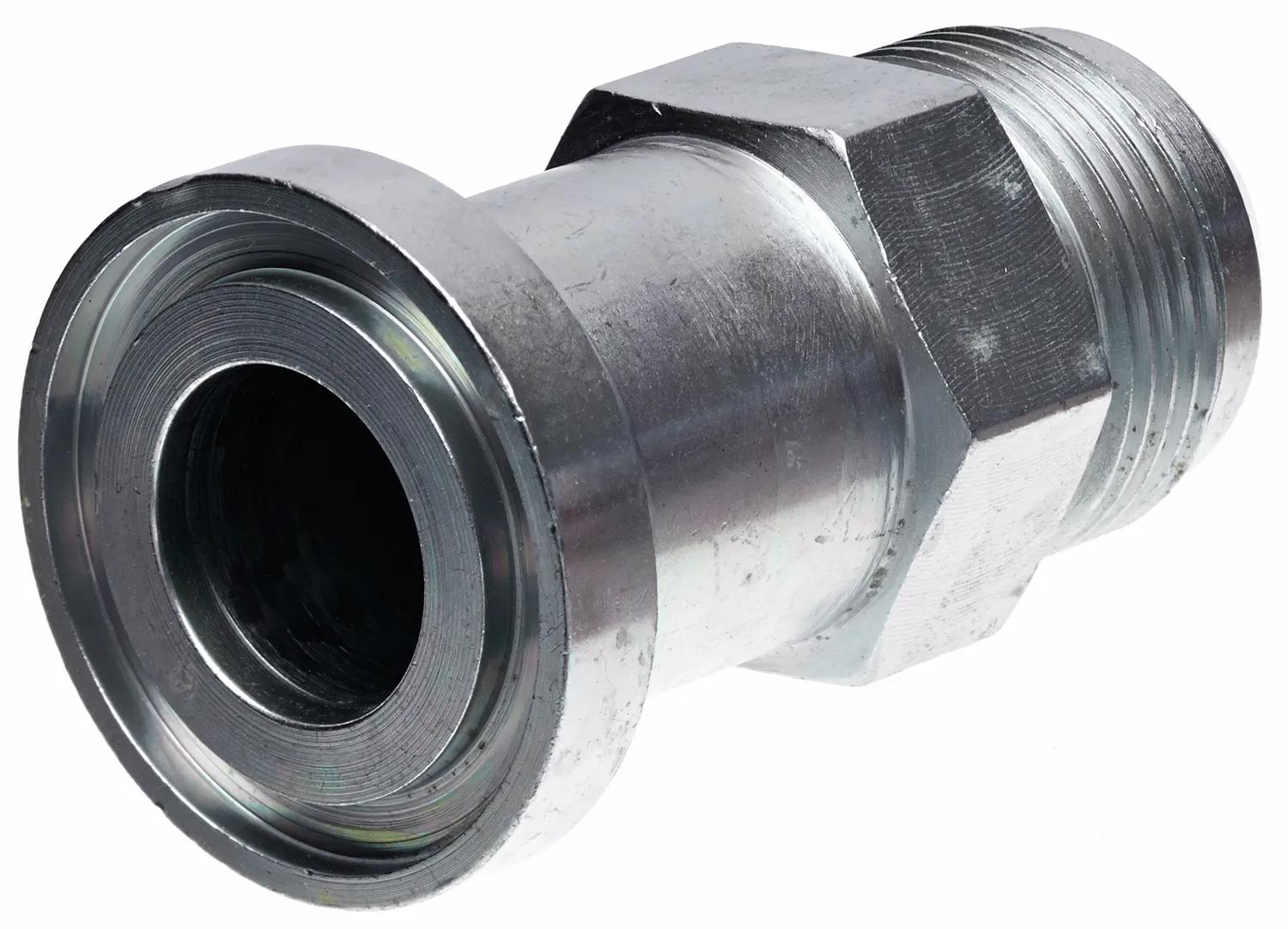

Fitting Code 61 O-Ring Flange to Male Flare, 16FL5K-12MJ
#GATG60901-1612
Product Overview
No Braze Joints - Solid One-Piece Construction for Increased Reliability.
Features & Benefits
- Flange adapters rated to 6000 PSI for replacing bent tube assemblies with standard stock couplings
- O-Ring Not Included. Must be Ordered Separately.
- Flanges Larger Than 1 in. Have a Working Pressure of 4,000 PSI.
Specifications
| Adapter Type | SAE to SAE |
| Diameter | 1-3/4 in (4.45 cm) |
| Flange Head Thickness (in) – F | 5/16 in (0.79 cm) |
| Industrial Description | 16FL5K-12MJ |
| Note | No braze joints, solid one-piece construction for increased reliability. O-Ring not included. Must be ordered separately. |
| OEM Part # | 16FL5K-12MJ/G60901-1612 |
| Pressure | 5000 psi (344.73 bar) |
| Product Number | 725312405 |
| Thread | 1-1/16 in-12 |
| Type | Code 61 O-Ring Flange to Male JIC 37 Flare - High Pressure |
| Width | 1-1/2 in (3.81 cm) |
Interchanges & Equivalent parts:
| G60901-1612 |
| 725312405 |
