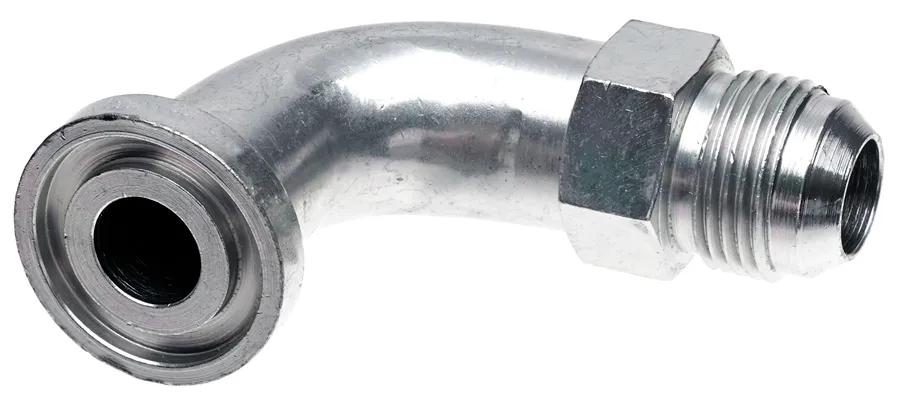

Fitting Code 61 O-Ring Flange to Male Flare, 20FL4K-16MJ90
#GATG60911-2016
Product Overview
No Braze Joints - Solid One-Piece Construction for Increased Reliability.
Features & Benefits
- O-Ring Not Included. Must be Ordered Separately.
- Flanges 1 in. (-16) & Smaller Have a Maximum Working Pressure of 5,000 PSI.
- Flanges Larger Than 1 in. Have a Working Pressure of 4,000 PSI.
Specifications
| Adapter Type | SAE to SAE |
| Diameter | 2 in (5.08 cm) |
| Flange Head Thickness (in) – F | 5/16 in (0.79 cm) |
| Industrial Description | 20FL4K-16MJ90 |
| Pressure | 4000 psi (275.79 bar) |
| Thread | 1-5/16 in-12 |
| Type | Code 61 O-Ring Flange to Male JIC 37 Flare - 90 deg - High Pressure |
Interchanges & Equivalent parts:
| G60911-2016 |
| 725312495 |
