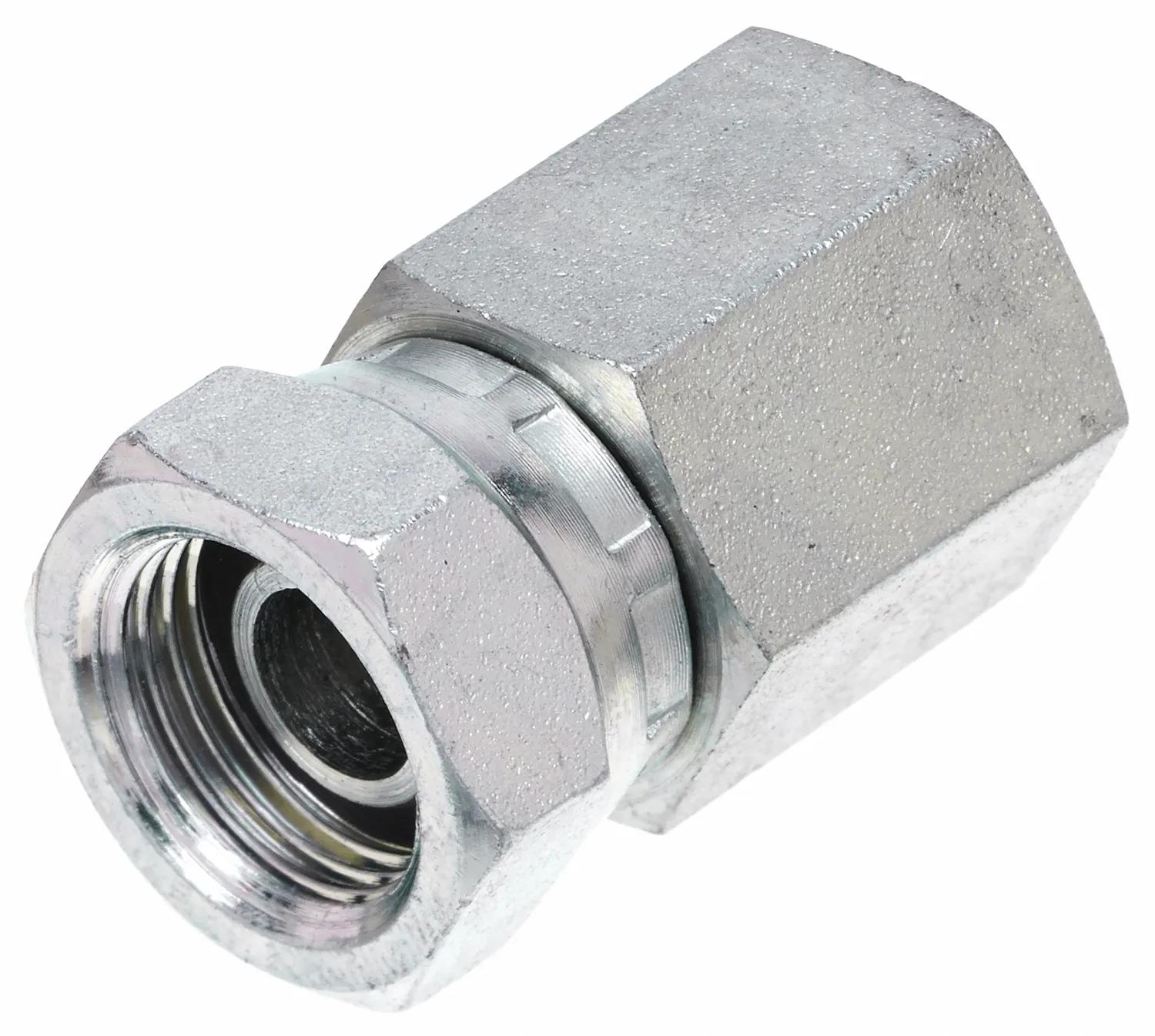

Fitting Female Pipe to Female Pipe Swivel NPSM, 6FP-8FPX
#GATG60160-0608
Product Overview
Gates SAE to SAE Adapter Line Offers Full Coverage w/ Sizes From 1/8 in. to 2 in. in the Most Popular Thread Configurations.
Features & Benefits
- Flange adapters rated to 6000 PSI for replacing bent tube assemblies with standard stock couplings.
- Caution: Don't be Fooled by the Manufacturer's Name. John Deere, for Instance, Manufactures in Both North America & Europe, so Some Models May Have North American Threads While Others May Have International Threads.
- A Problem Solver When Required Coupling Thread Styles Might Not Be Available. Caps & Plugs Included.
Specifications
| Adapter Type | SAE to SAE |
| Industrial Description | 6FP-8FPX |
| Note | For use up to SAE 100R2 maximum working pressure |
| OEM Part # | 6FP-8FPX/G60160-0608 |
| Product Number | 725905105 |
| Type | Female Pipe NPTF to Female Pipe Swivel NPSM |
Interchanges & Equivalent parts:
| 70580-0608 |
| 705800608 |
| GYH70580-0608 |
| G60160-0608 |
| 725905105 |
