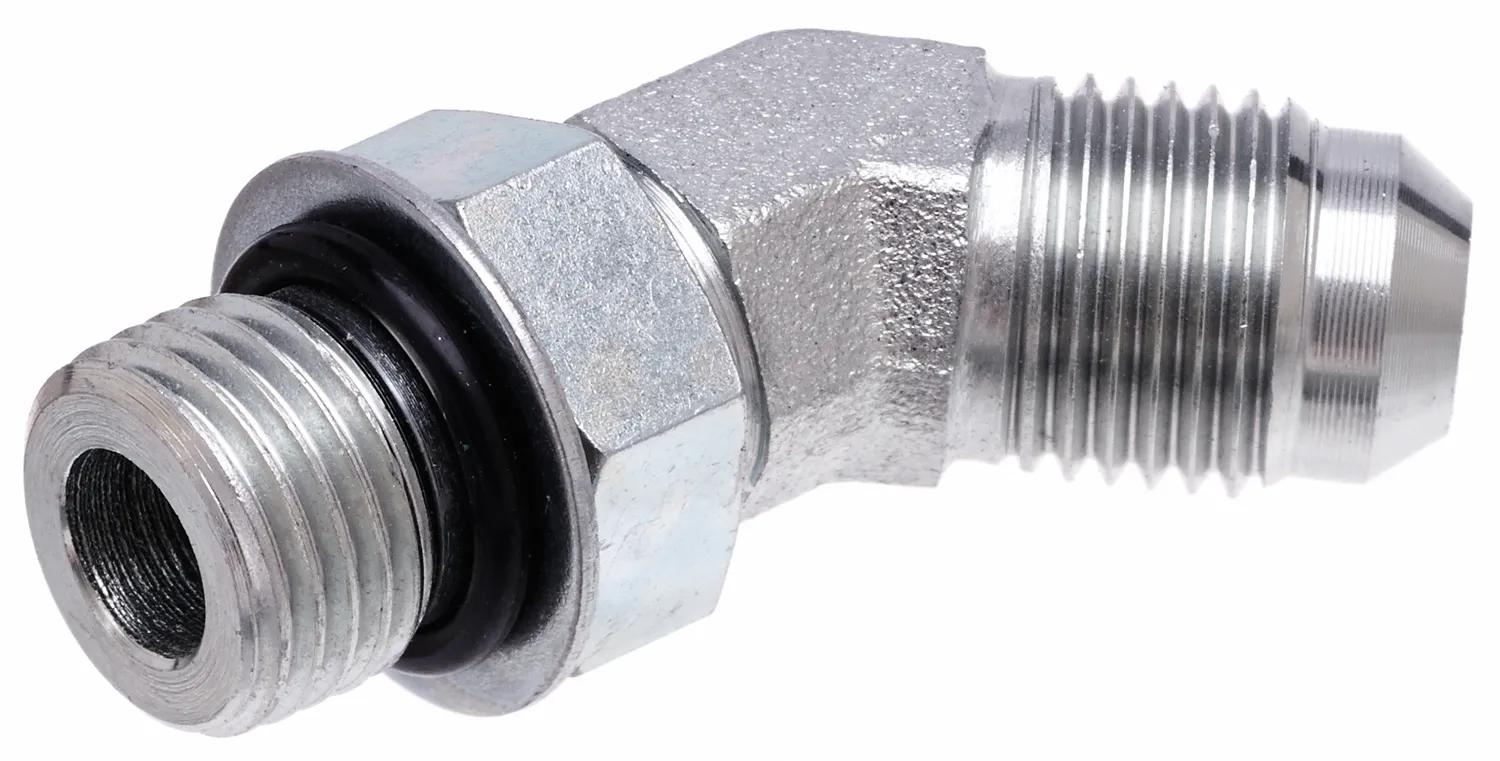

Fitting Male O-Ring Boss to Male JIC 37 Flare, 16MB-16MJ45
#GATG60308-1616
Product Overview
Gates SAE to SAE Adapter Line Offers Full Coverage w/ Sizes From 1/8 in. to 2 in. in the Most Popular Thread Configurations.
Features & Benefits
- Flange adapters rated to 6000 PSI for replacing bent tube assemblies with standard stock couplings.
- Caution: Don't be Fooled by the Manufacturer's Name. John Deere, for Instance, Manufactures in Both North America & Europe, so Some Models May Have North American Threads While Others May Have International Threads.
- A Problem Solver When Required Coupling Thread Styles Might Not Be Available. Caps & Plugs Included.
Specifications
| Adapter Type | SAE to SAE |
| Angle | 45 deg |
| Industrial Description | 16MB-16MJ45 |
| Note | For use up to SAE 100R2 maximum working pressure |
| OEM Part # | 16MB-16MJ45/G60308-1616 |
| Product Number | 725928615 |
| Thread | 1-5/16 in-12 |
| Type | Male O-Ring Boss to Male JIC 37 Flare - 45 deg |
Interchanges & Equivalent parts:
| 704001616 |
| GYH70400-1616 |
| G60308-1616 |
| 725928615 |
