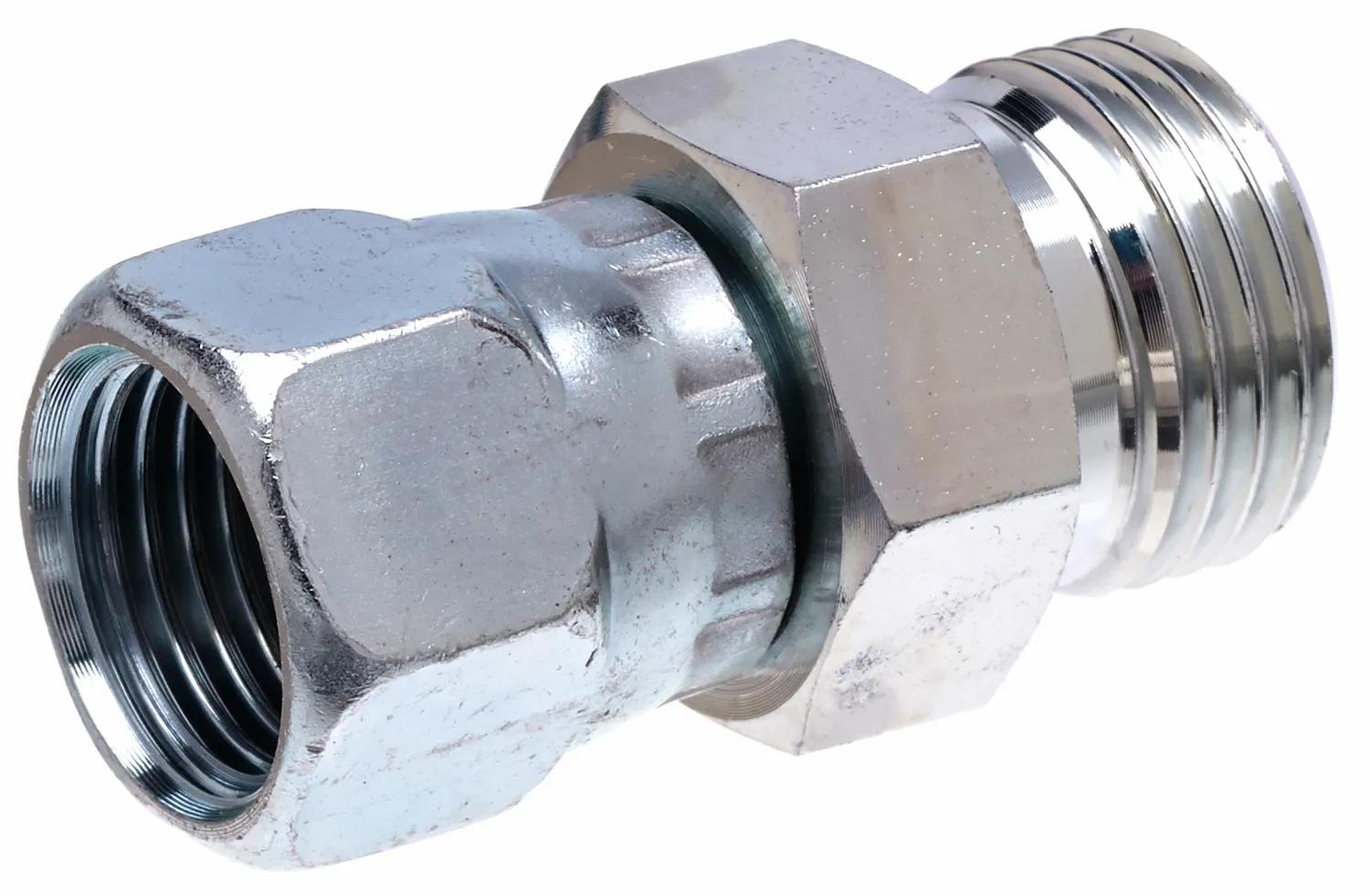

Fitting Male O-Ring to Female Flare Swivel, 10MFFOR-10FJX
#GATG60785-1010
Product Overview
Gates SAE to SAE Adapter Line Offers Full Coverage w/ Sizes From 1/8 in. to 2 in. in the Most Popular Thread Configurations.
Features & Benefits
- Flange adapters rated to 6000 PSI for replacing bent tube assemblies with standard stock couplings
- Caution: Don't be Fooled by the Manufacturer's Name. John Deere, for Instance, Manufactures in Both North America & Europe, so Some Models May Have North American Threads While Others May Have International Threads.
- A Problem Solver When Required Coupling Thread Styles Might Not Be Available. Caps & Plugs Included.
Specifications
| Adapter Type | SAE to SAE |
| Height | 1-13/64 in (3.05 cm) |
| Industrial Description | 10MFFOR-10FJX |
| Length | 3-13/32 in (8.66 cm) |
| Note | For use up to SAE 100R2 maximum working pressure |
| OEM Part # | 10MFFOR-10FJX/G60785-1010 |
| Product Number | 725906335 |
| Type | Male Flat-Face O-Ring to Female JIC 37 Flare Swivel |
| Width | 1 in (2.54 cm) |
Interchanges & Equivalent parts:
| G60785-1010 |
| 725906335 |
