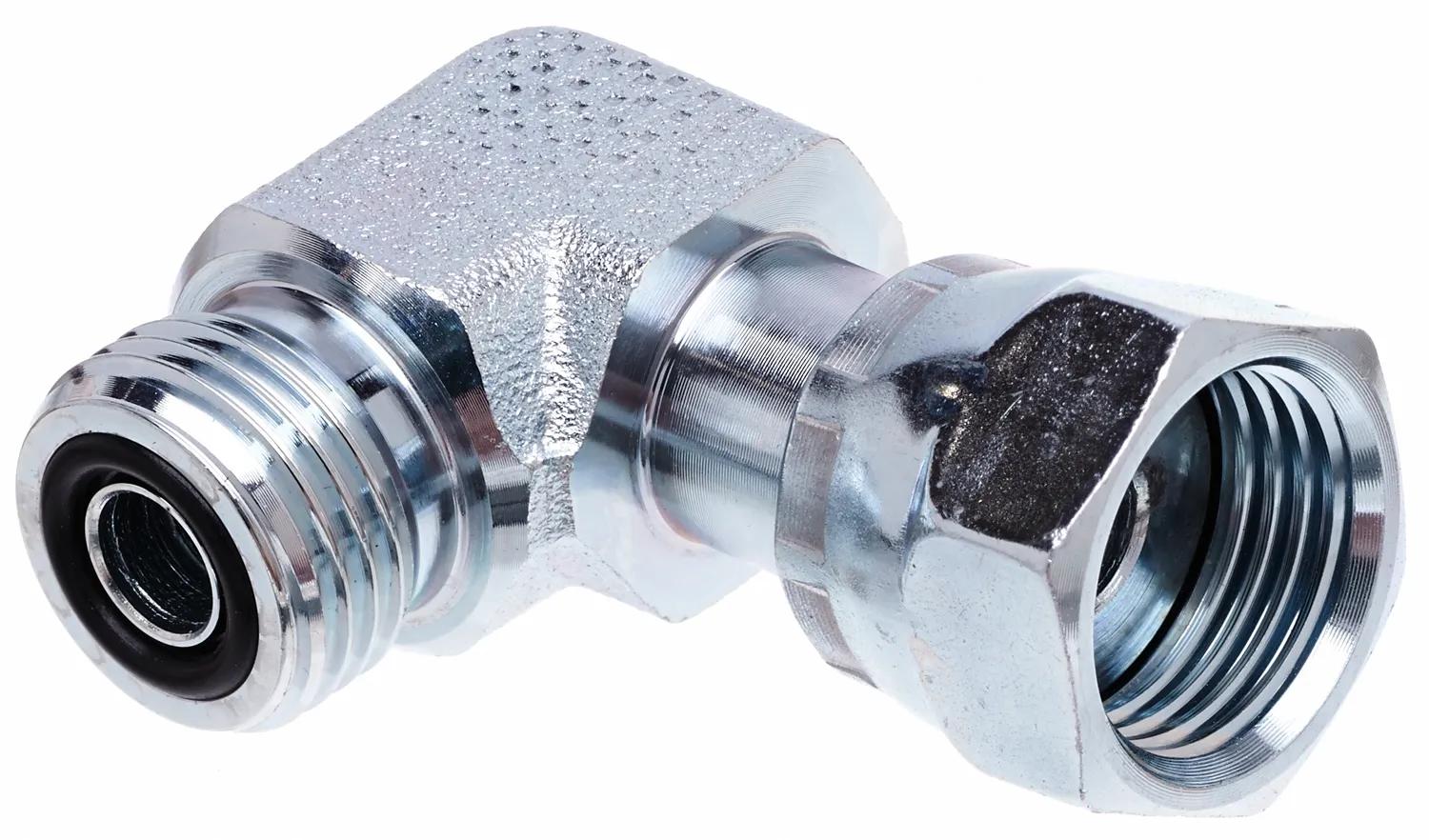

Fitting Male O-Ring to Female Swivel, 4MFFOR-4FFORX90
#GATG60724-0404
Product Overview
Gates SAE to SAE Adapter Line Offers Full Coverage w/ Sizes From 1/8 in. to 2 in. in the Most Popular Thread Configurations.
Features & Benefits
- Flange adapters rated to 6000 PSI for replacing bent tube assemblies with standard stock couplings
- Caution: Don't be Fooled by the Manufacturer's Name. John Deere, for Instance, Manufactures in Both North America & Europe, so Some Models May Have North American Threads While Others May Have International Threads.
- A Problem Solver When Required Coupling Thread Styles Might Not Be Available. Caps & Plugs Included.
Specifications
| Adapter Type | SAE to SAE |
| Angle | 90 deg |
| Height | 9 in (22.86 cm) |
| Industrial Description | 4MFFOR-4FFORX90 |
| Length | 9-1/4 in (23.5 cm) |
| Note | For use up to SAE 100R2 maximum working pressure |
| OEM Part # | 4MFFOR-4FFORX90/G60724-0404 |
| Product Number | 725906075 |
| Thread | 9/16 in-18 |
| Type | Male Flat-Face O-Ring to Female Flat-Face Swivel - 90 deg |
Interchanges & Equivalent parts:
| G60724-0404 |
| 725906075 |
