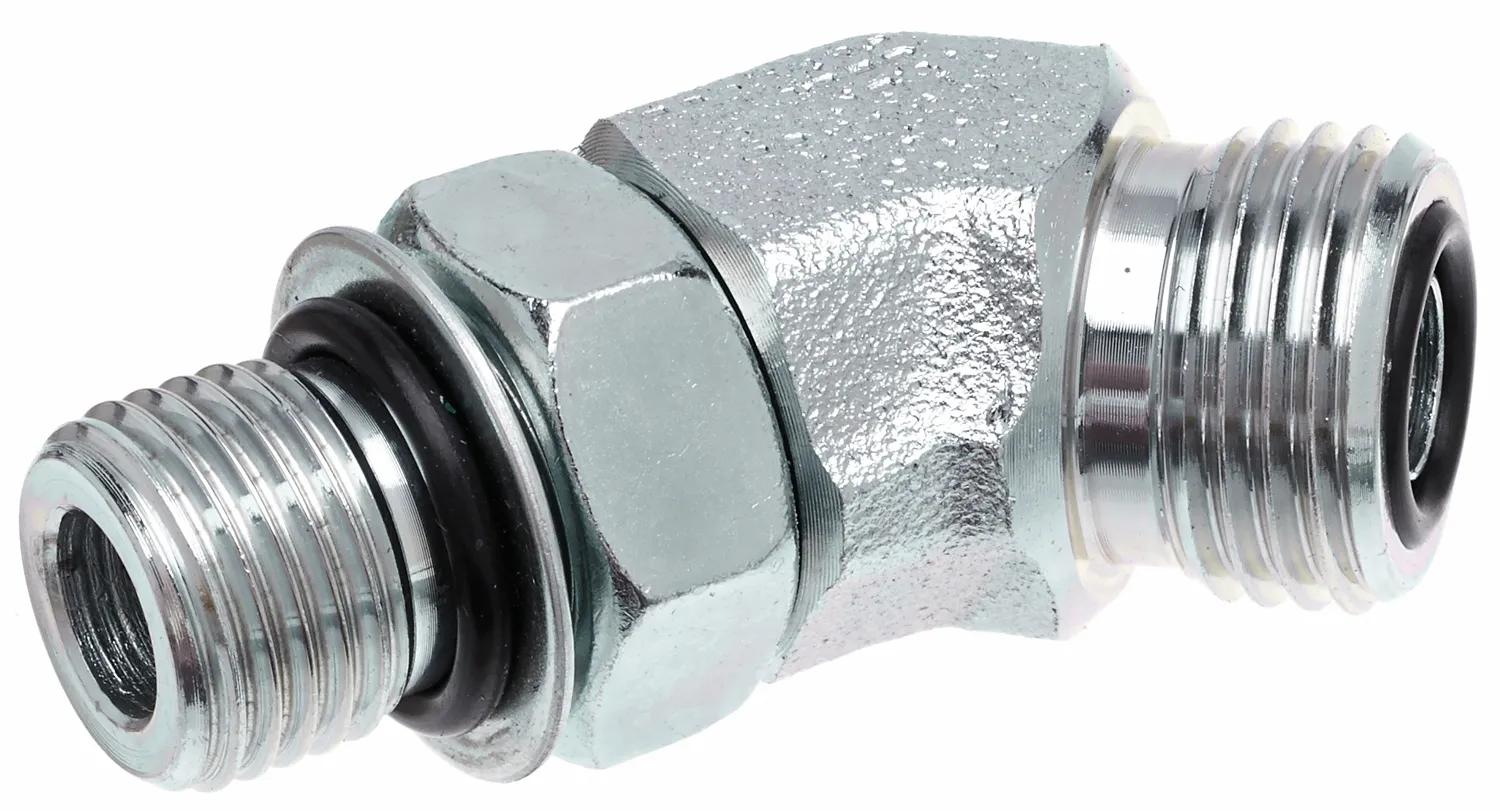

Fitting Male O-Ring to Male O-Ring Boss, 8MFFOR-8MB45
#GATG60805-0808
Product Overview
Gates SAE to SAE Adapter Line Offers Full Coverage w/ Sizes From 1/8 in. to 2 in. in the Most Popular Thread Configurations.
Features & Benefits
- Flange adapters rated to 6000 PSI for replacing bent tube assemblies with standard stock couplings
- Caution: Don't be Fooled by the Manufacturer's Name. John Deere, for Instance, Manufactures in Both North America & Europe, so Some Models May Have North American Threads While Others May Have International Threads.
- A Problem Solver When Required Coupling Thread Styles Might Not Be Available. Caps & Plugs Included.
Specifications
| Adapter Type | SAE to SAE |
| Angle | 45 deg |
| Height | 9 in (22.86 cm) |
| Industrial Description | 8MFFOR-8MB45 |
| Length | 9-1/4 in (23.5 cm) |
| Note | For use up to SAE 100R2 maximum working pressure |
| OEM Part # | 8MFFOR-8MB45/G60805-0808 |
| Product Number | 725930975 |
| Thread | 13/16 in-16 |
| Type | Male Flat-Face O-Ring to Male O-Ring Boss - 45 deg |
Interchanges & Equivalent parts:
| 70753-0808 |
| 707530808 |
| GYH70753-0808 |
| G60805-0808 |
| 725930975 |
