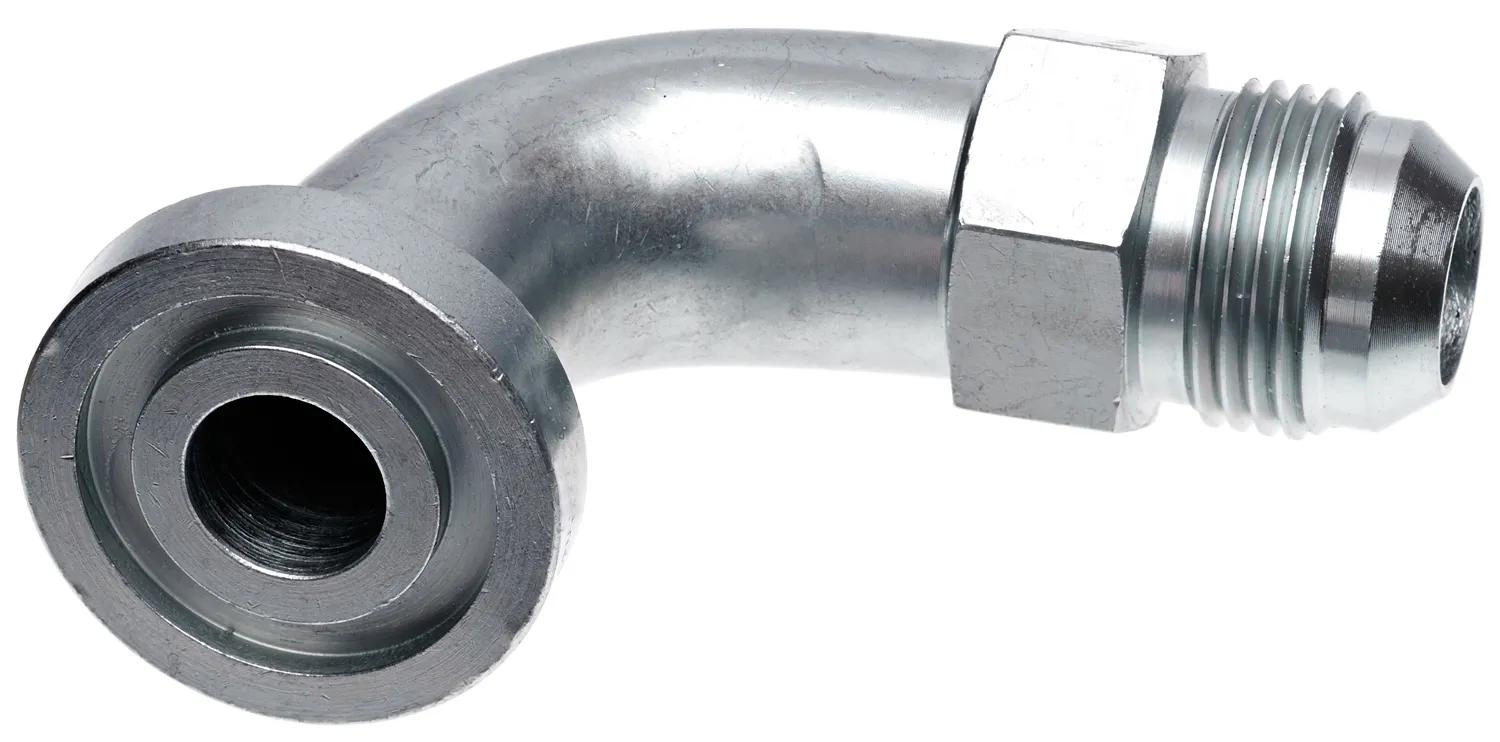

Fitting O-Ring Flange Heavy to Male Flare, 12FLH-12MJ90
#GATG60940-1212
Product Overview
No Braze Joints - Solid One-Piece Construction for Increased Reliability.
Features & Benefits
- Flange adapters rated to 6000 PSI for replacing bent tube assemblies with standard stock couplings
- Caution: Don't be Fooled by the Manufacturer's Name. John Deere, for Instance, Manufactures in Both North America & Europe, so Some Models May Have North American Threads While Others May Have International Threads.
- O-Ring Not Included. Must be Ordered Separately.
Specifications
| Adapter Type | SAE to SAE |
| Diameter | 1-5/8 in (4.14 cm) |
| Flange Head Thickness (in) – F | 11/32 in (0.86 cm) |
| Industrial Description | 12FLH-12MJ90 |
| Note | No braze joints, solid one-piece construction for increased reliability. O-Ring not included. Must be ordered separately. |
| OEM Part # | 12FLH6K-12MJ90/G60940-1212 |
| Product Number | 725313505 |
| Thread | 1-1/16 in-12 |
| Type | Code 62 O-Ring Flange Heavy to Male JIC 37 Flare 90 deg - 6000 psi |
Interchanges & Equivalent parts:
| G609401212 |
| G60940-1212 |
| 725313505 |
