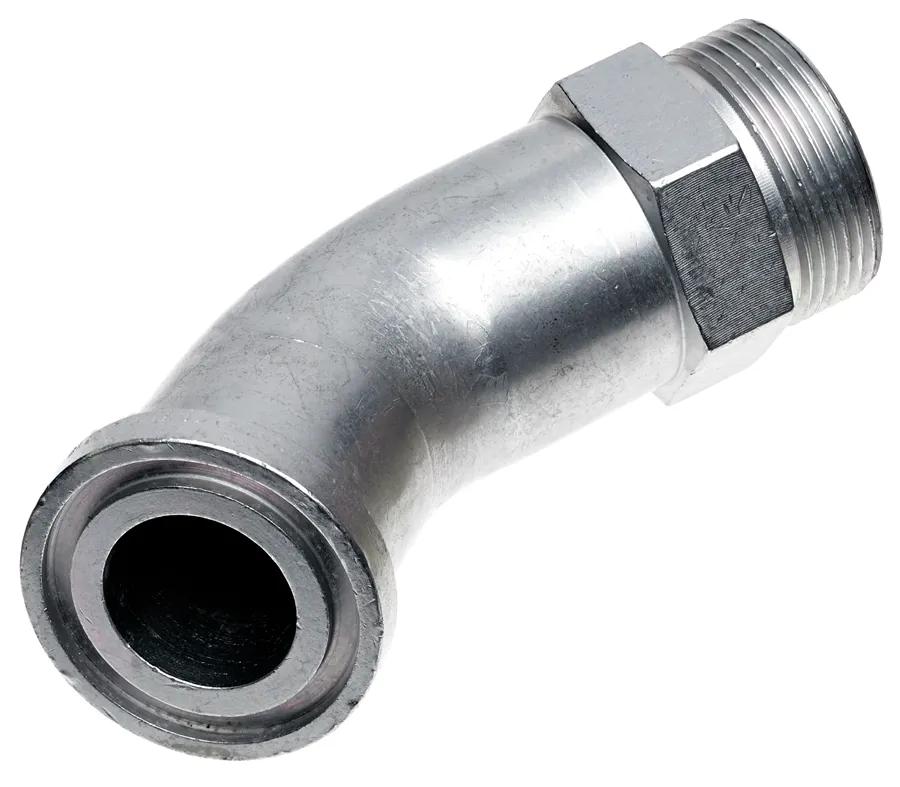

Fitting O-Ring Flange to Male O-Ring, 16FL5K-16MFFOR45
#GATG60920-1616
Product Overview
No Braze Joints - Solid One-Piece Construction for Increased Reliability.
Features & Benefits
- O-Ring Not Included. Must be Ordered Separately.
- Flanges 1 in. (-16) & Smaller Have a Maximum Working Pressure of 5,000 PSI.
- Flanges Larger Than 1 in. Have a Working Pressure of 4,000 PSI.
Specifications
| Adapter Type | SAE to SAE |
| Diameter | 1-3/4 in (4.45 cm) |
| Flange Head Thickness (in) – F | 5/16 in (0.79 cm) |
| Industrial Description | 16FL5K-16MFFOR45 |
| Pressure | 5000 psi (344.73 bar) |
| Thread | 1-7/16 in-12 |
| Type | Code 61 O-Ring Flange to Male Flat-Face O-Ring 45 deg - High Pressure |
Interchanges & Equivalent parts:
| 70253-1616 |
| 702531616 |
| GYH70253-1616 |
| G60920-1616 |
| 725313735 |
