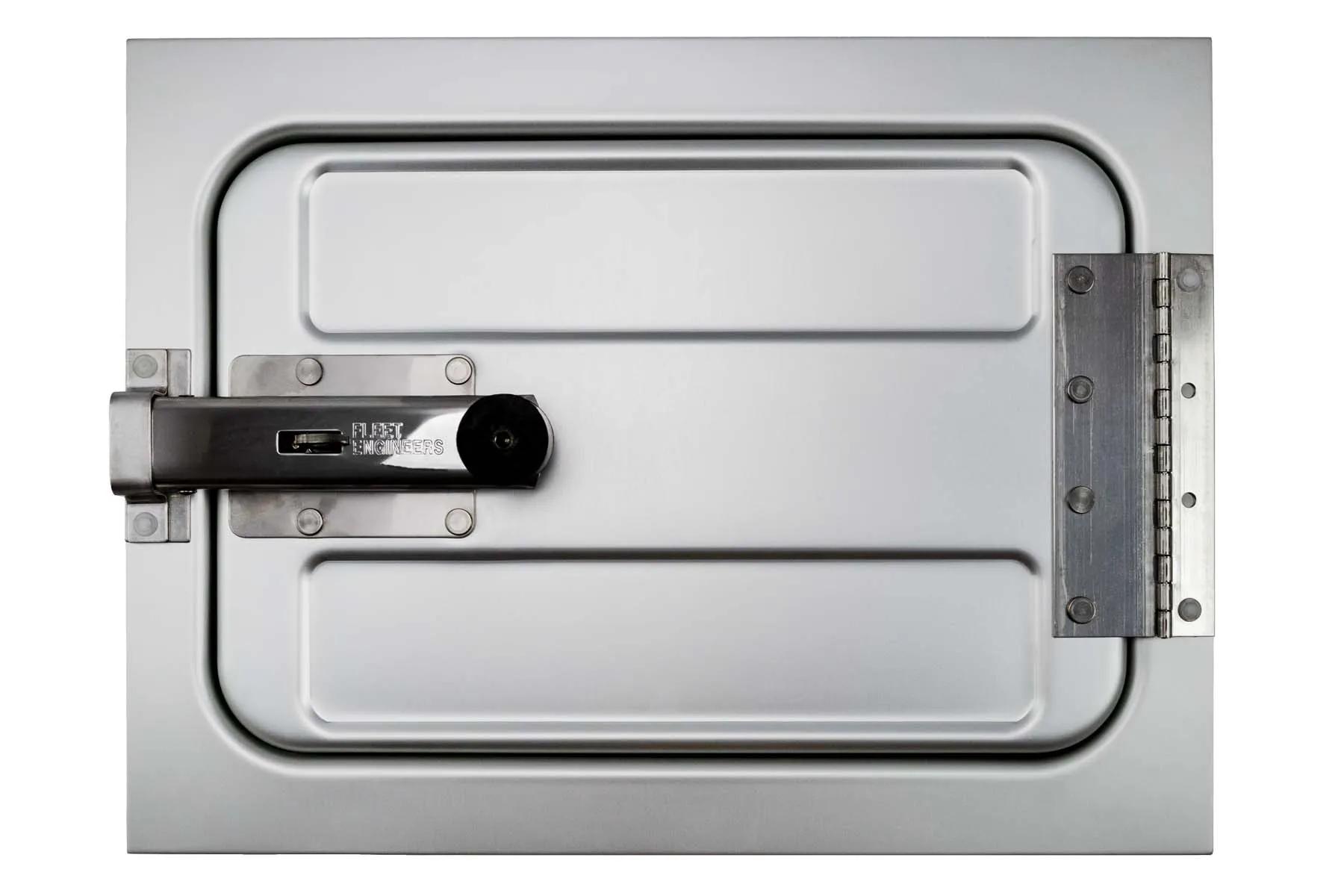

Fleet Engineers G1 Dry Freight Vent Door, Aluminum, 17 in x 11.38 in, Anodized Frame, Stainless Steel Hardware
#FLT024-02590
Product Overview
Vent Door G1 Dry Freight with anti-intrusion screen for security and enhanced air flow, featuring a one-piece anodized aluminum frame for strength and easy installation, gasket seal with embossed door for added strength, and all stainless steel hardware.
Features & Benefits
- Choice of white epoxy powder coat, anodized aluminum, or stainless steel door face finishes
- For 17.00 x 11.38 Door Size: Nominal Door Size: 17.00 in x 11.38 in Outside Flange: 20.00 in x 15.00 in Panel Cut-out: 17.50 in x 12.00 in For 17.00 x 7.00 Door Size Nominal door size: 17.00 in x 7.00 in Outside Flange: 20.00 in x 10.00 in Panel Cut-out: 17.50 in x 7.50 in
Specifications
| Finish | Aluminum |
| Height | 7 in |
| Height (in.) | 11.38 in |
| Material | Aluminum |
| Model | G1 |
| Product Type | Vent Door |
| Size | 17.00 x 11.38 in |
| VMRS Code | 071-005-025 |
| Width | 17 in |
| Width (in.) | 17.00 in |
| Weight | 4.9 lbs |
Interchanges & Equivalent parts:
| 024-02590 |
