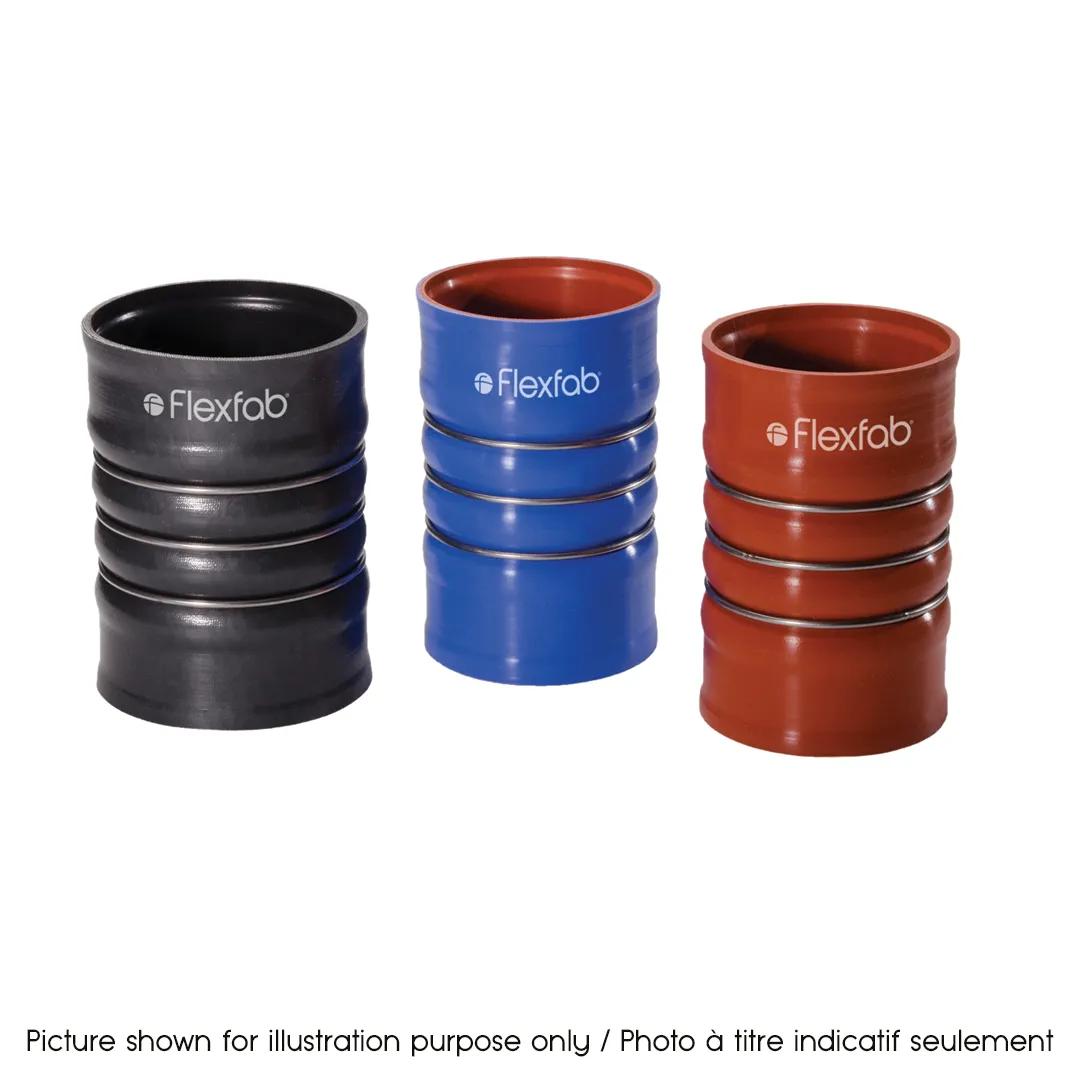

Flexfab Charge Air Cooler Hose Connector, Hot Side, 6 in Length, 3-1/2 in ID, Blue & Red, Silicone Coated Meta-Aramid Fabric with Stainless Steel Rings
#FLX7732-0001
Product Overview
CAC Hose for the hot side features 4-ply silicone bellows coated meta-aramid fabric with stainless steel pressure retention rings designed for intercooler applications, offering extreme temperature and high pressure resistance in hostile engine environments.Charge Air Hose Connector, Hot Side, Blue, Red, Silicone Coated Meta-Aramid Fabric with Stainless Steel Ring, 4-Ply Construction, 3-1/2 in ID, 3.73 in OD, 55 psi Pressure Rating, -65 to 500 °F Temperature Rating, 6 in Length
Features & Benefits
- 3 Stainless Steel Rings
- Extreme temperature resistance
- Extreme duty cycle tested for hostile engine environments
- High pressure resistance
- 4-ply silicone coated meta-aramid fabric with stainless steel pressure retention rings
- Wall thickness is 0.085 in to 0.135 in
Specifications
| Color | Blue & Red |
| Construction | 4-Ply |
| Inside Diameter | 3-1/2 in |
| Length | 6 in |
| Outside Diameter | 3-47/64 in |
| Type | Hot Side |
| UPC | 742330991039 |
| Weight | 0.5 lb |
| Pressure Rating | 55 psi |
| Temperature Rating | -65 to 500 °F |
| Product Category | Charge Air Hose Connector |
Interchanges & Equivalent parts:
| 57502 |
| 57512 |
| 7732-0001D |
| GYB57502 |
| GYB57512 |
| 26201 |
| 4C4O-6C640-QA |
| 561.1535 |
| 77320001 |
| 7732-0001 |
| FLX7732-0001D |
