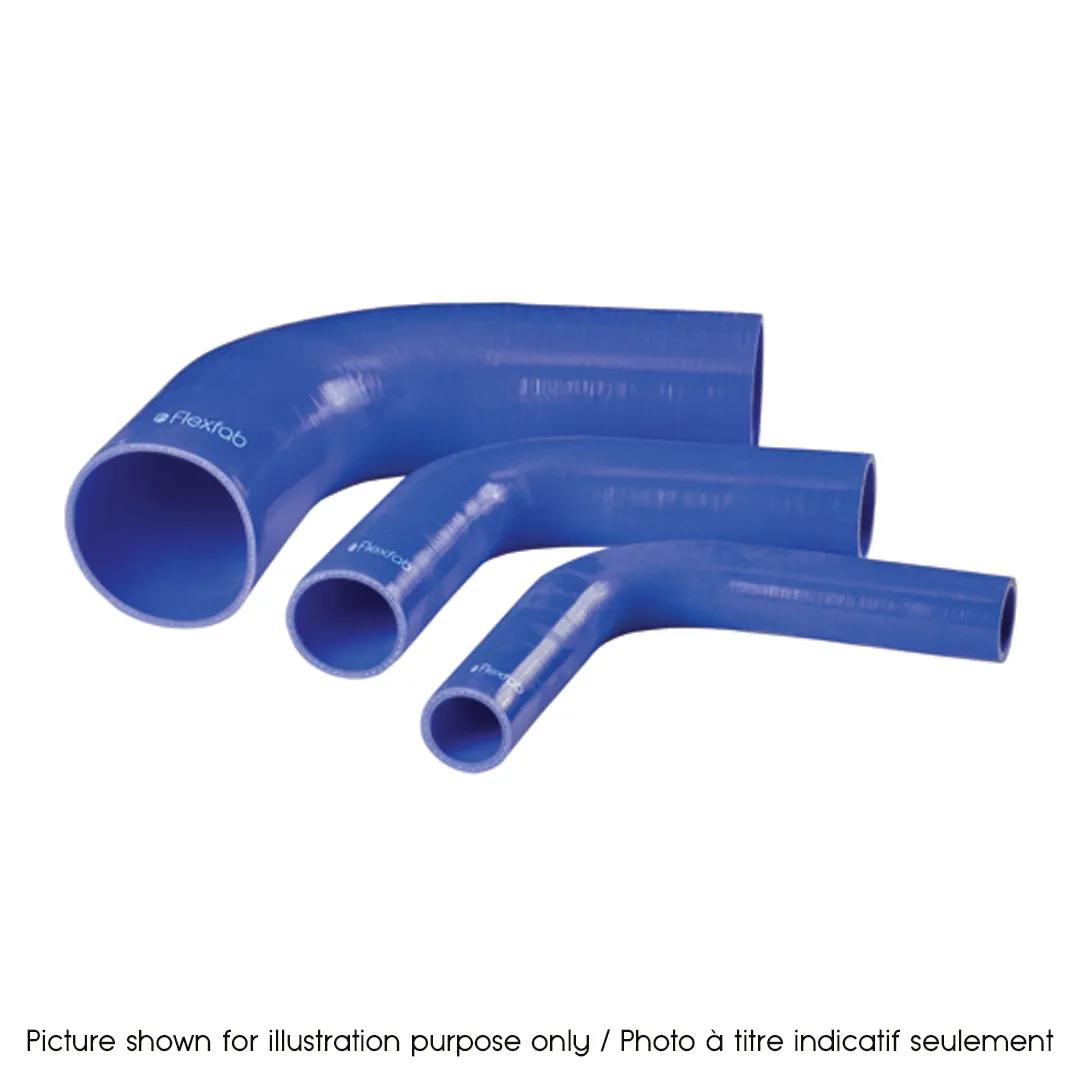

Flexfab Hose Elbow, 2-1/4 in ID, 90 deg Silicone with Meta-Aramid Reinforcement, Blue
#FLX7884-225
Product Overview
90-degree silicone hose elbows designed for coolant and charge air connector systems. These elbows are extreme duty cycle tested for hostile engine environments and constructed with a low dilation design to prevent expansion, ensuring durability and reliable performance under extreme temperatures.Hose Elbow, Blue, Silicone with Meta-Aramid Reinforcement, 90 deg Angle, 3.38 in Bend Radius, 3-Ply Construction, 2-1/4 in ID, 175 psi Minimum Burst Pressure, 2.57 in OD, SAE J20 R1 Class A, TMC RP303B Class I Grade II Standards, -65 to 500 °F Temperature Range, 6 in Length, For Coolant and Charge Air Connector Systems
Features & Benefits
- FLEXFAB 7884 AND 7896 SERIES ELBOWS SERVE A DUAL PURPOSE.
- Meets or exceeds the operating requirements of TMC RP303B Class I Grade II
- Extreme temperature resistance
- Extreme duty cycle tested for hostile engine environments
- Low dilation design
- Prevents expansion
- Engineered for coolant and charge air connector systems
- Meets or exceeds the operating requirements of SAE J20 R1 Class A
- Standard wall thickness is 0.140 in / 0.190 in
- Working pressure is 1/3 of the burst pressure
Specifications
| Angle | 90 deg |
| Application | Coolant and Charge Air Connector Systems; resists hardening, cracking, cold leaks, aging, and many chemicals. |
| Color | Blue |
| Construction | 3-Ply |
| Inside Diameter | 2-1/4 in |
| Length | 6 in |
| Outside Diameter | 2.57 in |
| Radius | 3-3/8 in (8.59 cm) |
| Temperature Range | -65 to 500 °F |
| Weight | 1 lb (0.45 kg) |
| Bend Radius | 3.38 in |
| Minimum Burst Pressure | 175 psi (12.07 bar) |
| Standards | SAE J20 R1 Class A, TMC RP303B Class I Grade II |
| Product Category | Hose Elbow |
Interchanges & Equivalent parts:
| 7884-0225D |
| 7884-225 |
| FLX7884-0225D |
