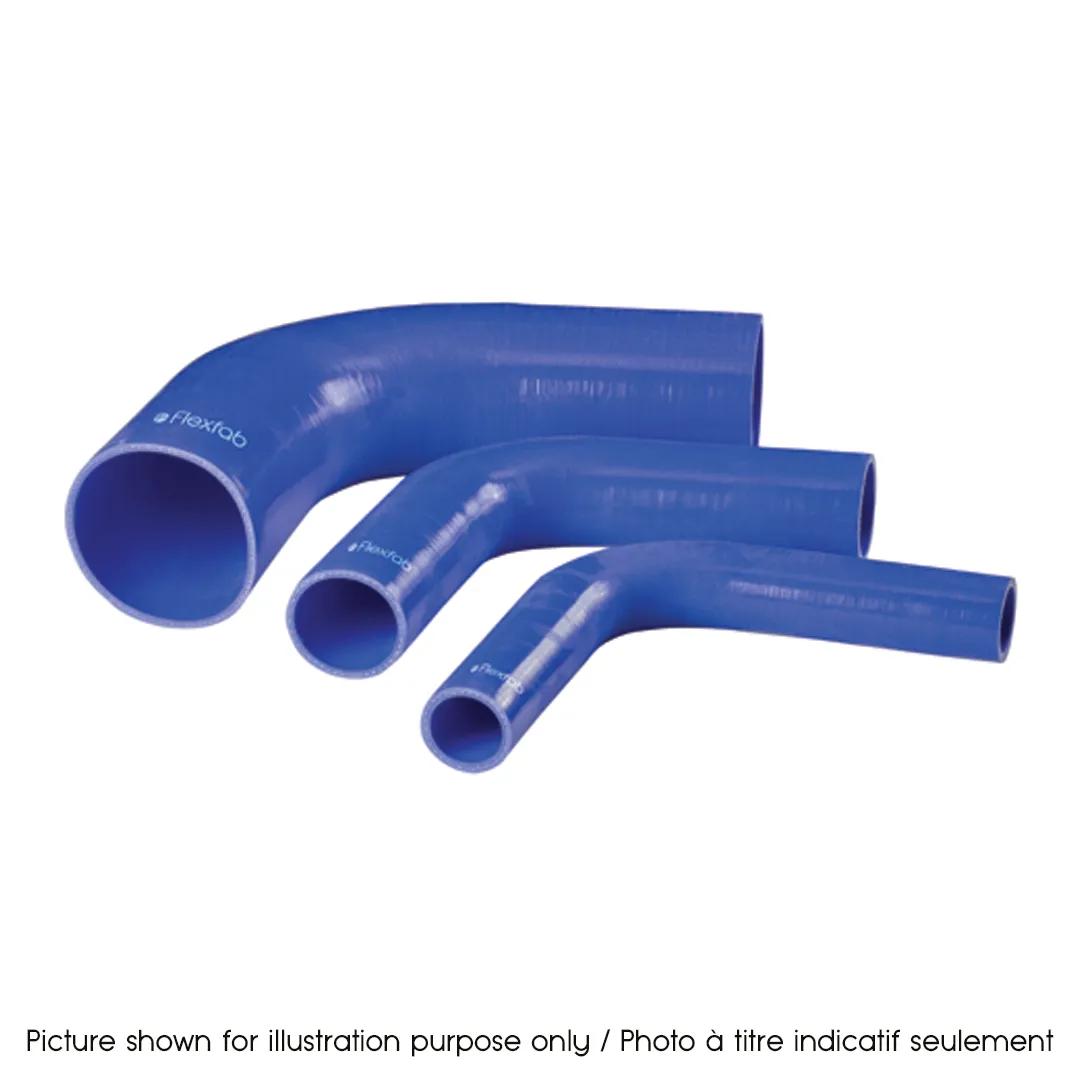

Flexfab Hose Elbow, 3 in ID, 90° Angle, Blue Silicone with Meta-Aramid Reinforcement
#FLX7884-300
Product Overview
90° silicone hose elbows designed for coolant and charge air connector systems. Constructed with meta-aramid reinforcement and engineered for extreme duty cycles in hostile engine environments. Features low dilation design to prevent expansion and withstands temperatures from -65 to 500 °F.Hose Elbow, Blue, Silicone with Meta-Aramid Reinforcement, 90 deg Angle, 4-1/2 in Bend Radius, 3-Ply Construction, 3 in ID, 100 psi Minimum Burst Pressure, 3.32 in OD, SAE J20 R1 Class A, TMC RP303B Class I Grade II Standards, -65 to 500 °F Temperature Range, 7-1/2 in Length, For Coolant and Charge Air Connector Systems
Features & Benefits
- Custom wall thickness is 0.140”/.190”
- Extreme temperature resistance
- Extreme duty cycle tested for hostile engine environments
- Low dilation design
- Prevents expansion
- Engineered for coolant and charge air connector systems
- Meets or exceeds the operating requirements of SAE J20 R1 Class A
- Meets or exceeds the operating requirements of TMC RP303B Class I Grade II
- Working pressure is 1/3 of the burst pressure
Specifications
| Angle | 90 deg |
| Application | Resists chemicals, steam, ozone, coolants, and aging conditions normally found in the engine environment. Suitable for coolant and charge air connector systems. |
| Color | Blue |
| Construction | 3-Ply |
| Fits Clamp Part # | FLX2582-0048 or FLX2584-0362 |
| Inside Diameter | 3 in |
| Length | 7-1/2 in |
| Outside Diameter | 3-5/16 in |
| Radius | 4-1/2 in (11.43 cm) |
| Temperature Range | -65 to 500 °F |
| Weight | 1 lb (0.45 kg) |
| Bend Radius | 4-1/2 in |
| Minimum Burst Pressure | 100 psi (6.89 bar) |
| Standards | SAE J20 R1 Class A, TMC RP303B Class I Grade II |
| Product Category | Hose Elbow |
Interchanges & Equivalent parts:
| 7884-0300D |
| 7884300 |
| F046006 |
| 7884-300 |
| FLX7884-0300D |
