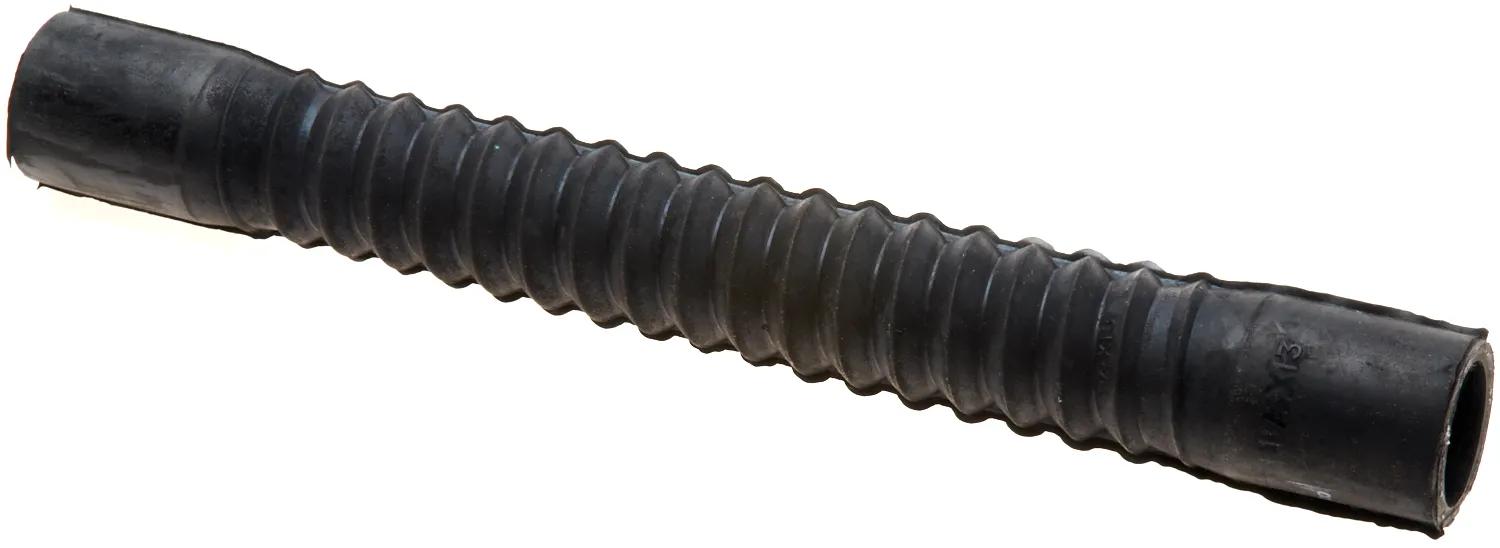

Flexible Coolant Hose, L: 15-1/2 in, ID: 1-1/4 in
#GAT25302
Features & Benefits
- 40 psi maximum
- Maximum vehicle coverage with minimum inventory
- Rated for SAE 20R5 Class D-2 performance
- Hoses with ID from 38/45 to 50 mm: 0.18 Mpa
- Hoses with ID from 50/57 to 76 mm: 0.14 Mpa
- Maximum hoses with ID from 25 to 38 mm: 0.21 Mpa
- High flexibility for easy installation
- Tube and cover resist heat, ozone and coolants
- Hose vulcanizes into shape without unnecessary strain on connections
- Adjustable cuffs to the required length
- Note: Gates recommends replacing both clamps and hoses
- Improved sealing surface for greater leak resistance
Specifications
| Caution | Do not use for fuel or oil transfer applications. |
| Inside Diameter 1 (in) | 1-1/4 in (3.18 cm) |
| Inside Diameter 2 (in) | 1-1/4 in (3.18 cm) |
| Length | 15-1/2 in (39.37 cm) |
| Temperature Range | High temperature rating up to 257°F (125°C) |
| Weight | 0.6 lb (0.27 kg) |
Interchanges & Equivalent parts:
| 198665 |
| 25029 |
| 26400 |
| 52016 |
| 81081 |
| 158V111 |
| BH-650 |
| FF218 |
| FH55 |
| FM93 |
| KAB-154 |
| M41 |
| 1116S |
