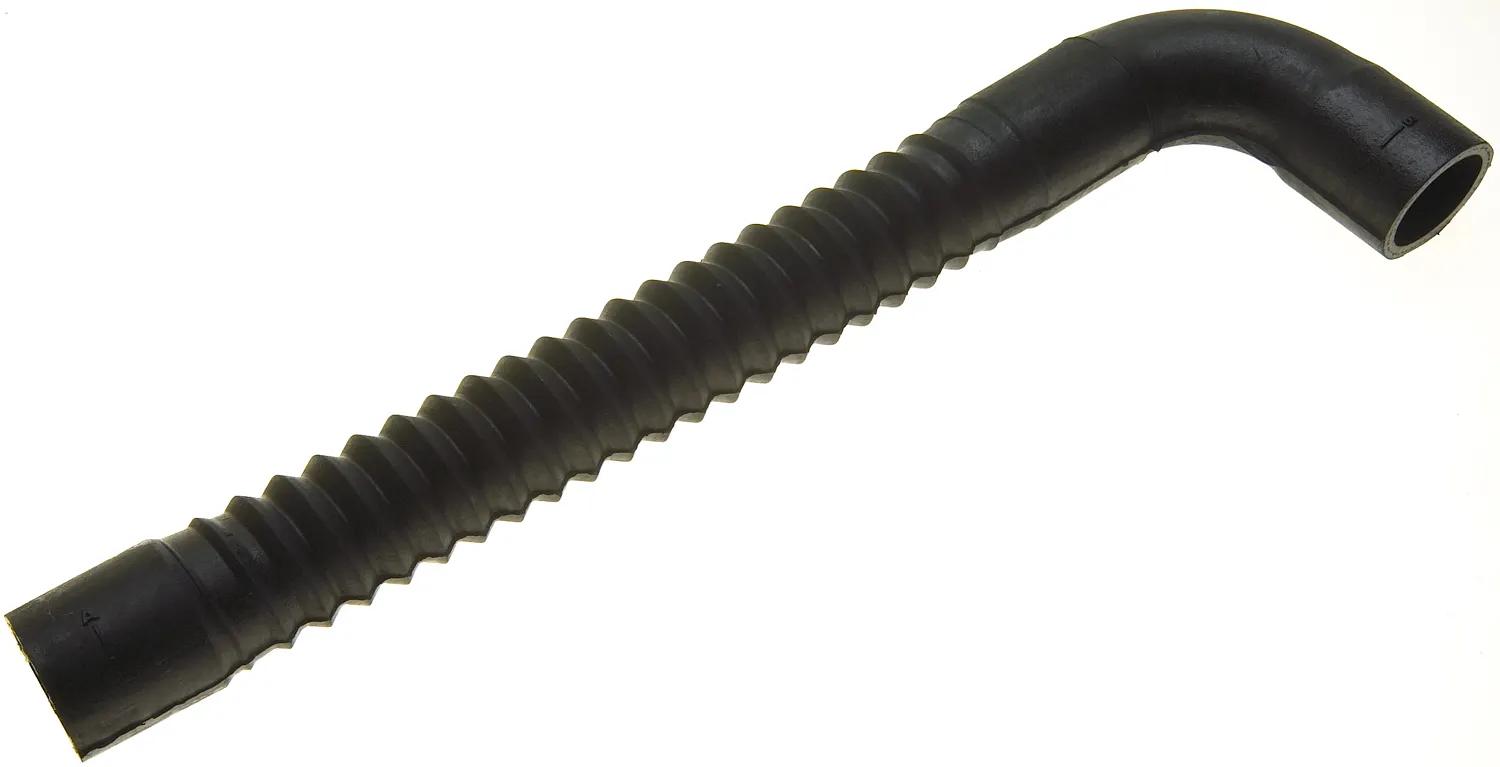

Flexible Coolant Hose, L: 23-3/16 in, ID: 1-1/2 in
#GAT25806
Features & Benefits
- 40 psi maximum
- Maximum vehicle coverage with minimum inventory
- Rated for SAE 20R5 Class D-2 performance
- Hoses with ID from 38/45 to 50 mm: 0.18 Mpa
- Hoses with ID from 50/57 to 76 mm: 0.14 Mpa
- Maximum hoses with ID from 25 to 38 mm: 0.21 Mpa
- High flexibility for easy installation
- Tube and cover resist heat, ozone and coolants
- Hose vulcanizes into shape without unnecessary strain on connections
- Adjustable cuffs to the required length
- Improved sealing surface for greater leak resistance
- Temperature rating up to +257°F (+125°C)
Specifications
| Angle | 90 deg |
| Caution | Do not use for fuel or oil transfer applications. |
| Inside Diameter 1 (in) | 1-1/2 in (3.81 cm) |
| Inside Diameter 2 (in) | 1-1/2 in (3.81 cm) |
| Length | 23-3/16 in (58.9 cm) |
Interchanges & Equivalent parts:
| 12205 |
| 2051847 |
| 2919395 |
| 31652 |
| 360089 |
| 1411640 |
| 26442 |
| 338013 |
| 524231 |
| 547 |
| 67948 |
| 81492 |
| 6024E |
| 624C |
| 6M205 |
| 7101603 |
| 77-8310-3 |
| A624C |
| AC92 |
| BH-692 |
| C6442E |
| FF281 |
| FH98 |
| FM84 |
| KBR-204 |
| T8310 |
| VF92 |
| 33B013 |
