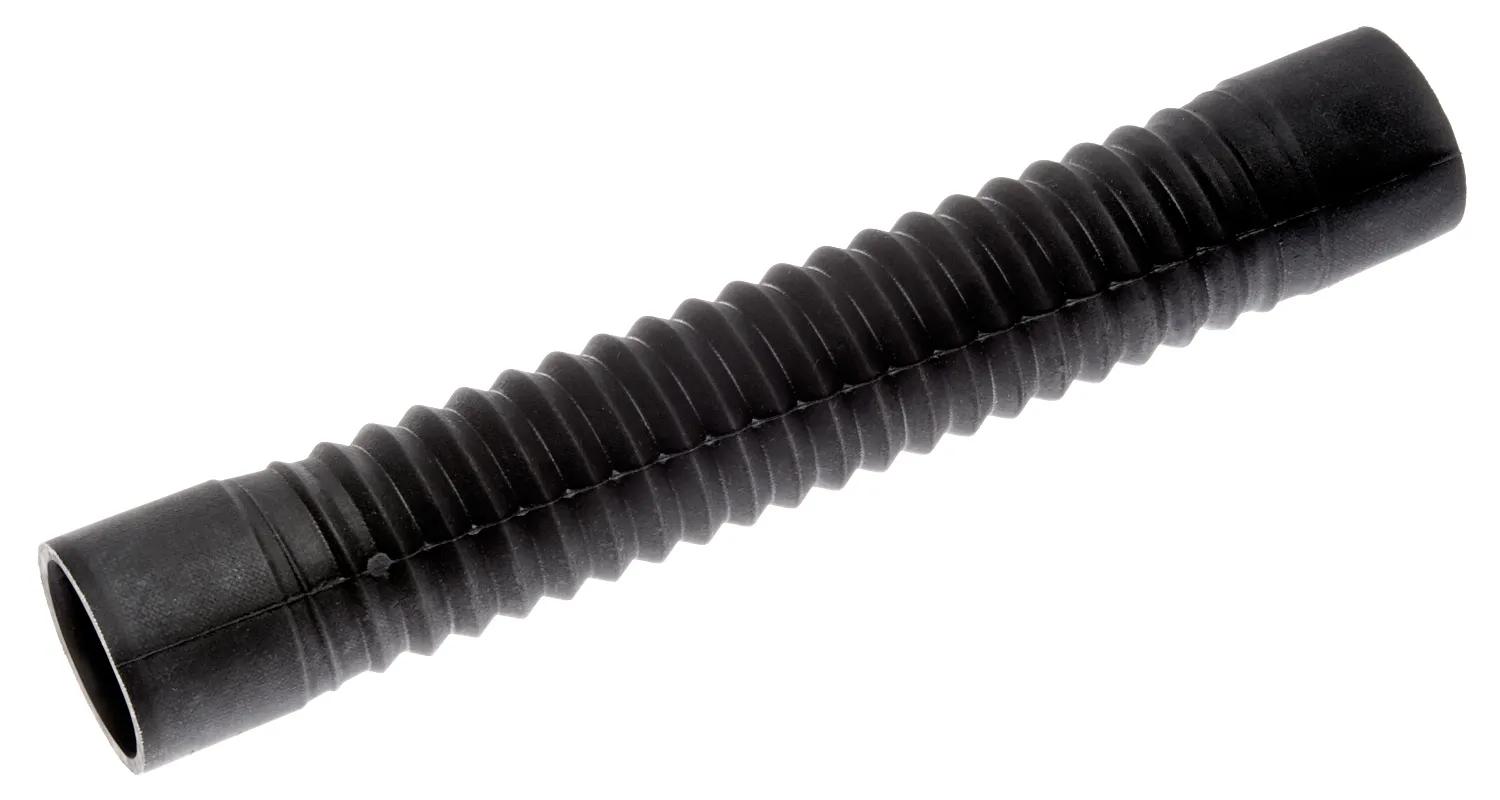

Flexible Coolant Hose, L: 27 in, ID: 2-1/4 in
#GAT26525
Features & Benefits
- Approved for marine applications
- Engineered with compounds to resist electrochemical degradation
- Performs to SAE 20R5 Type EC Class D-2 specifications
- Heat-resistant construction throughout
- Excellent flexibility, yet collapse and kink resistant
- Working pressure 40 psi maximum
- Extra strength fabric reinforcement with helical steel wire spiral molded between tube and cover
- EPDM tube and neoprene cover for extended service life
Specifications
| Inside Diameter 1 (in) | 2-1/4 in (5.72 cm) |
| Inside Diameter 2 (in) | 2-1/4 in (5.72 cm) |
| Length | 27 in (68.58 cm) |
| Maximum Pressure | 40 psi (2.76 bar) |
| Temperature Range | -40°F @ 257°F (-40°C @ 125°C) |
| Weight | 1.8 lb (0.82 kg) |
Interchanges & Equivalent parts:
| 3637091 |
| 1303015 |
| 1306179 |
| 31724 |
| 54027 |
| 663694 |
| 686609 |
| 82221 |
| 275741T |
| 44Q112D1 |
| 82221GL |
| 862593R1 |
| 972F251 |
| C9HS 8286 A |
| E390988 |
| FM121 |
| HCF15144 |
| M78 |
| V1092205 |
| VF126 |
| 2127HD |
