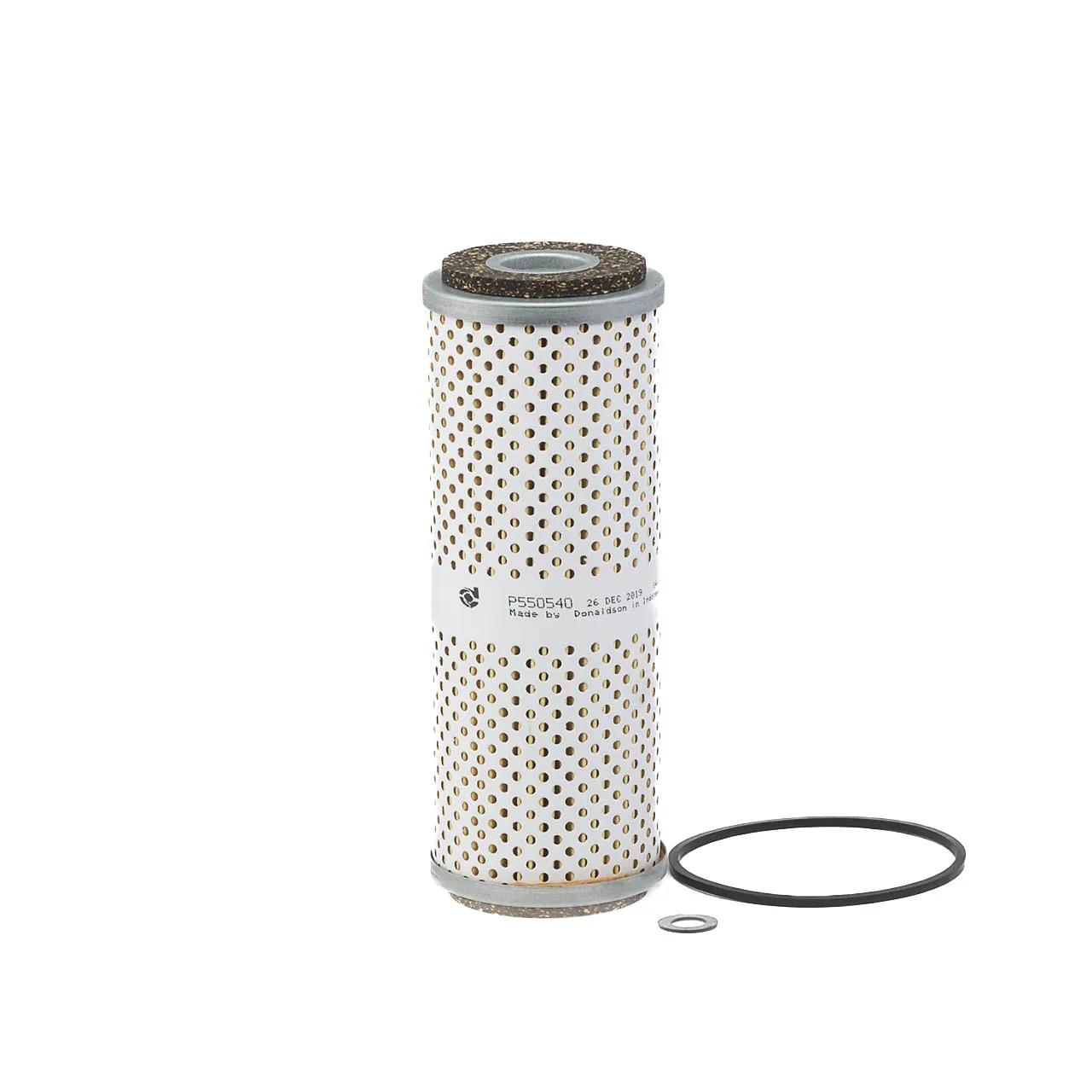

Fuel Filter, Cartridge L: 7,81 in, OD: 2,98 in, ID: 1,03 in
#DONP550540
Product Overview
FUEL FILTER, CARTRIDGE SECONDARY
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter Range | 2 to 2.99 in |
| Efficiency 99% | 22 Micron |
| Efficiency Test Std | SAE J1985 |
| Inner Diameter | 1.03 in (26.2 mm) |
| Length | 7-13/16 in (19.84 cm) |
| Outer Diameter | 2.98 in (75.7 mm) |
| Length Range | 7 to 7.99 in |
| Style | Cartridge |
Interchanges & Equivalent parts:
| PF110 |
| P1720 |
| P2422 |
| P2608 |
| F848A |
| F902C1 |
| F902S |
| PF810 |
| PF902 |
| PF902S |
| PF907 |
| PF910 |
| 86062 |
| 86070 |
| 86117 |
| 86251 |
| 86512 |
| 86540 |
| 86708 |
| 86709 |
| 86715 |
| 262F |
| 270F |
| 278F |
| 540F |
| HF519 |
| L540F |
| J8620540 |
| 639 |
| FF103 |
| FF110 |
| FF115 |
| FF142 |
| FF187 |
| FFR8110 |
| FFR8115 |
| FFR8142 |
| FFR8187 |
| C1126PL |
| C1127APB |
| C1127APL |
| C1135PL |
| C1172 |
| C1175PL |
| C1177PB |
| C1179PB |
| C1900PL |
| C8848 |
| F1126PBT4 |
| F1127PB |
| F11352PL |
| FBM1127APB |
| FBM1900PL |
| G1175 |
| G1175M8 |
| G1175PL |
| 911 |
| 973 |
| F973 |
| FF911 |
| FF917 |
| FF973 |
| A16017 |
| HDA16016 |
| HDA16017 |
| E195K |
| SN110 |
| F560 |
| F768 |
| F769 |
| F769G |
| F769H |
| F798 |
| KF769 |
| L2337F |
| L262F |
| L270F |
| H8251V |
| H832X |
| P8251 |
| P8251V |
| P830T |
| P832X |
| MP423 |
| FD149 |
| FD150 |
| FD150FP |
| FD168 |
| FD63 |
| FD773 |
| FG63 |
| FL149 |
| FL150 |
| 3062 |
| 3070 |
| 3117 |
| 3251 |
| 3512 |
| 3540 |
| 3708 |
| 3715 |
| 83109E |
| 88109D |
| 88193B |
| 88193D |
| 88196A |
| 88332A |
| 30973 |
| 6663000 |
| 6663085 |
| 6935058 |
| F60150 |
| PF1506 |
| PF3157 |
| PR1503 |
| PR1506 |
| R198 |
| R2063P |
| R400 |
| R402P |
| F6503 |
| SK3516 |
| SFF0540 |
| P540X |
| PL540X |
| 2663300 |
| 33062 |
| 33070 |
| 33117 |
| 33251 |
| 33512 |
| 33540 |
| 33708 |
| 533512 |
| CW117MP |
| CW512MP |
| CW62MP |
| CW70MP |
| PC62P |
| T540 |
| T551 |
| T59 |
| T65 |
| T65MS |
| T73 |
| TP510 |
| TP512 |
| TP514 |
| TP519 |
| TP523 |
| TP530 |
| TP5 |
| FC1503 |
| 2KZY4 |
| F902-C1 |
| ATL1175 |
| FF1277 |
| 1457429296 |
| EF-6B |
| FF212 |
| 706083 |
| BF46001 |
| 187931 |
| CO260 |
| F902-C1OBS |
| FF917OBS |
| TP540XF |
