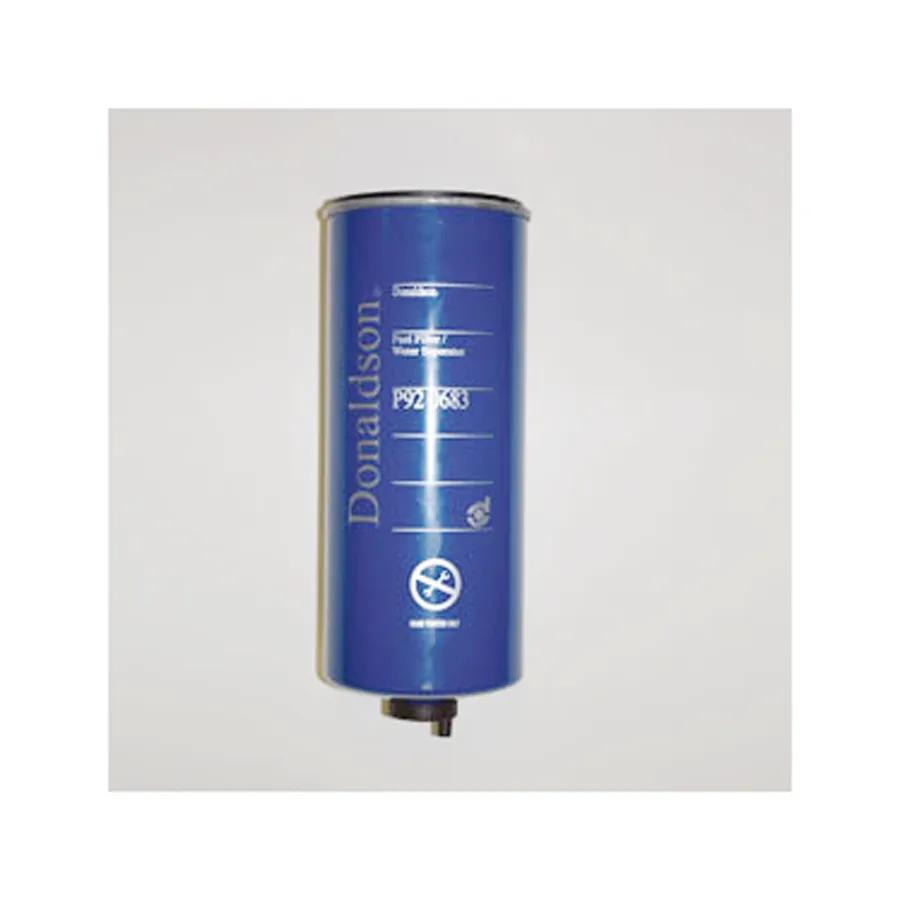

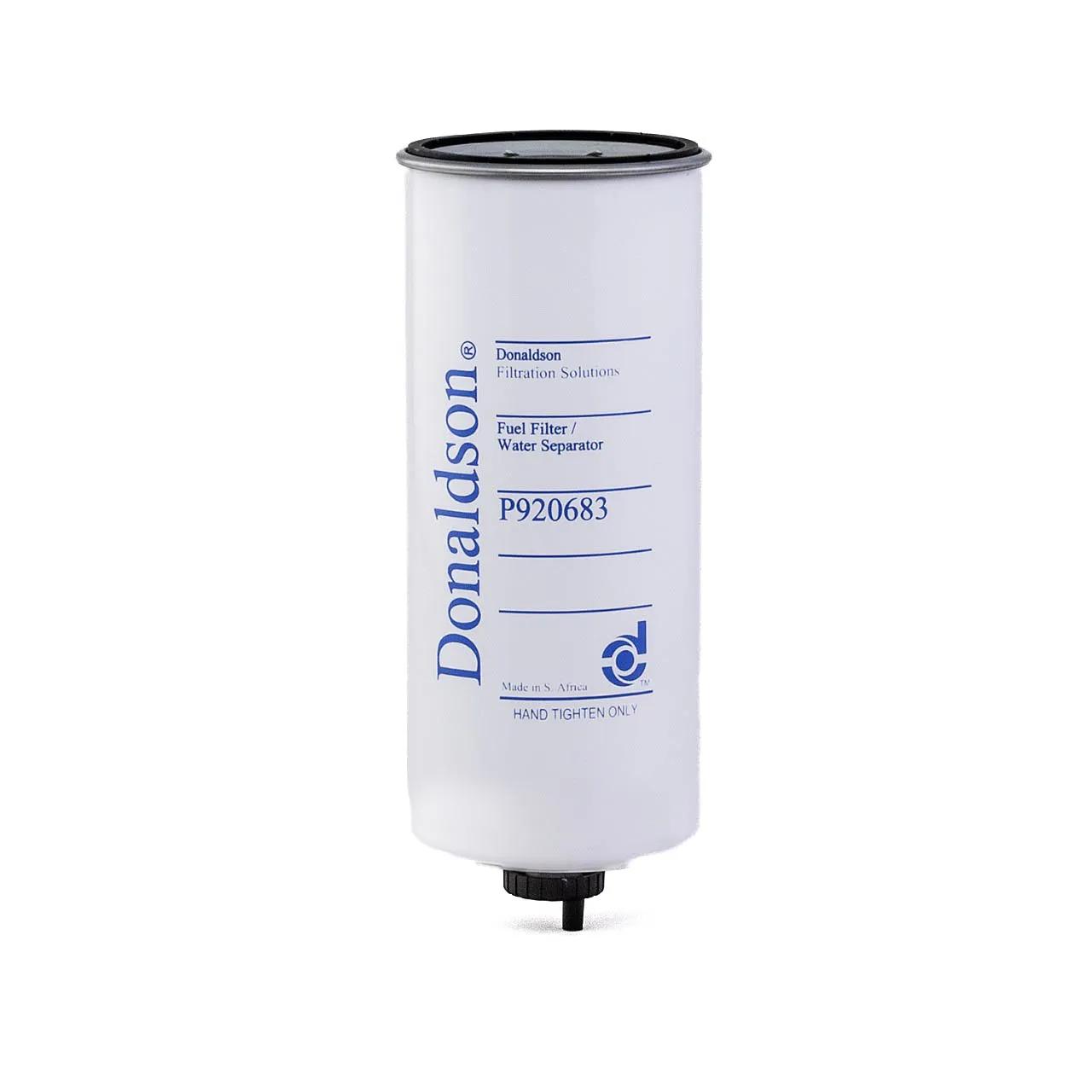

Fuel/Water Separator, Spin-On L: 11,33 in, Thread : 1 1/4-12 UN , OD: 4,41 in
#DONP920683
Product Overview
Fuel filter, water separator spin-on
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter Range | 4 to 4.99 in |
| Efficiency 99% | 15 Micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 99 Percent |
| Gasket ID | 3.86 in (98.1 mm) |
| Gasket OD | 4.26 in (108.3 mm) |
| Length | 11-21/64 in (28.78 cm) |
| Notes | Not for Marine Applications |
| Outer Diameter | 4.41 in (111.8 mm) |
| Length Range | 11 to 11.99 in |
| Style | Spin-On |
| Thread Size | 1 1/4-12 UN |
| Type | Water Separator |
Interchanges & Equivalent parts:
| XBU3194 |
| SN55683 |
| 220090 |
| 220090B |
| AT252816 |
| 3I1424 |
| 350057 |
| 9576P920683 |
| 987811C1 |
| RDK9220 |
| 20781 |
| 156125060501 |
| 56125060501 |
| HXV3974769969 |
| 1640020683 |
| 1640020683ND |
| T47261 |
| 689080 |
| Z369 |
| 020781 |
| 2191-P920683 |
| DONP920683 |
| DN P920683 |
| DN P920683 |
| PL6013 |
| BF1216 |
