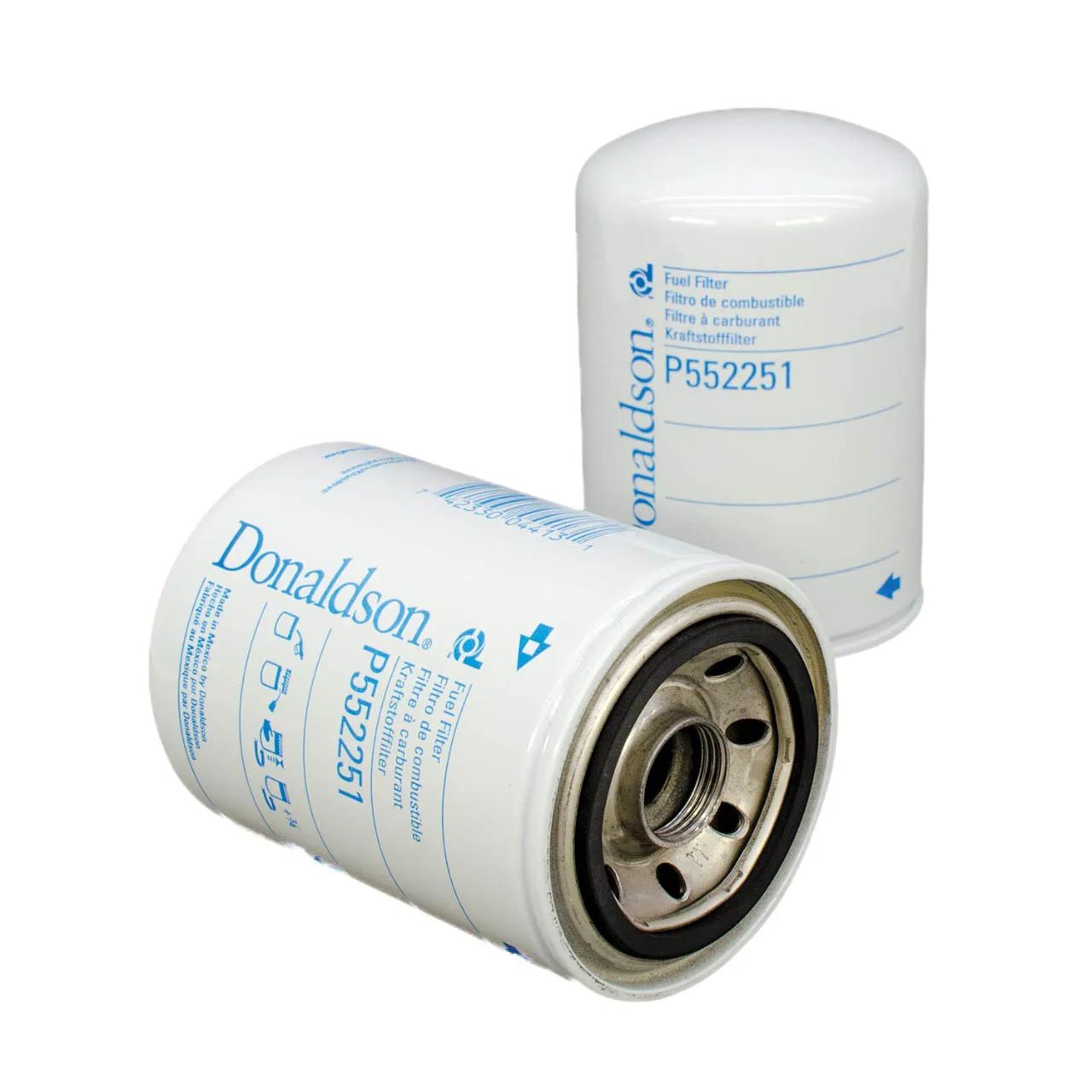

Fuel/Water Separator, Spin-On L: 5,36 in, Thread : 1-14 UN , OD: 3,66 in
#DONP552251
Product Overview
FUEL FILTER, SPIN-ON
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency 99% | 17 Micron |
| Efficiency Test Std | SAE J1985 |
| Gasket ID | 2.44 in (62 mm) |
| Gasket OD | 2.83 in (71.9 mm) |
| Length | 5-23/64 in (13.61 cm) |
| Outer Diameter | 3.66 in (92.97 mm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 1-14 UN |
| Vehicle Make | Case/Case IH |
Interchanges & Equivalent parts:
| BF46175 |
| BF984 |
| 86239 |
| FF196 |
| FF5136 |
| FF5753 |
| FFR8196 |
| FFR85136 |
| P1120 |
| P9350 |
| GP1105M |
| 829 |
| FF829 |
| A16006 |
| SN25105 |
| SN196 |
| F161 |
| F161A |
| FP625 |
| LFP250F |
| FT2247 |
| FD65 |
| FD65FP |
| 19A1909 |
| 20A1911 |
| 3239 |
| 6675580 |
| F50131 |
| PER131 |
| PER131F |
| PER35 |
| PER63 |
| Z687 |
| Z50 |
| Z960 |
| FC1305 |
| FC1810 |
| FC58010 |
| SK3092 |
| SK3547 |
| SFF1221 |
| WF10456 |
| 33239 |
| TP1290 |
| TP807 |
| 702250C1 |
| 4006995 |
| 538 |
| 540 |
| 573 |
| HF657 |
| 95239 |
| 625625C1 |
| 625626C1 |
| 70225C1 |
| A184772 |
| 3I1255 |
| 3I1256 |
| 7E9763 |
| 9Y4424 |
| 9Y4439 |
| FSM4024 |
| 9360 |
| 362 |
| WD362 |
| 23401010 |
| 23401031 |
| 74006995 |
| 9576P552251 |
| DNP552251 |
| 812S |
| G033239 |
| 234011200 |
| 234011221 |
| 234011228 |
| 234011280 |
| 234011281 |
| 234011282 |
| 234011283 |
| 234011284 |
| 234011321 |
| 234011580 |
| 234011650 |
| 234011651 |
| 235011010 |
| 235011010A |
| 235021010 |
| S234011650 |
| S234011651 |
| 234011240 |
| 234011241 |
| 234011241A |
| S234011222 |
| S234011580 |
| 4448736 |
| H3256260300 |
| 402255C1 |
| 703421C1 |
| GM13947 |
| 3816256261 |
| 702143C1 |
| J30143170 |
| K1J30143170 |
| APF3235A |
| PHM1117 |
| 3256260300 |
| 3256260300E |
| 1640399013 |
| 16403NY001 |
| AY500HD502 |
| BF40399013 |
| 60206775 |
| 92820117 |
| 23401-1221 |
| 23401-1222 |
| S2340-11580 |
