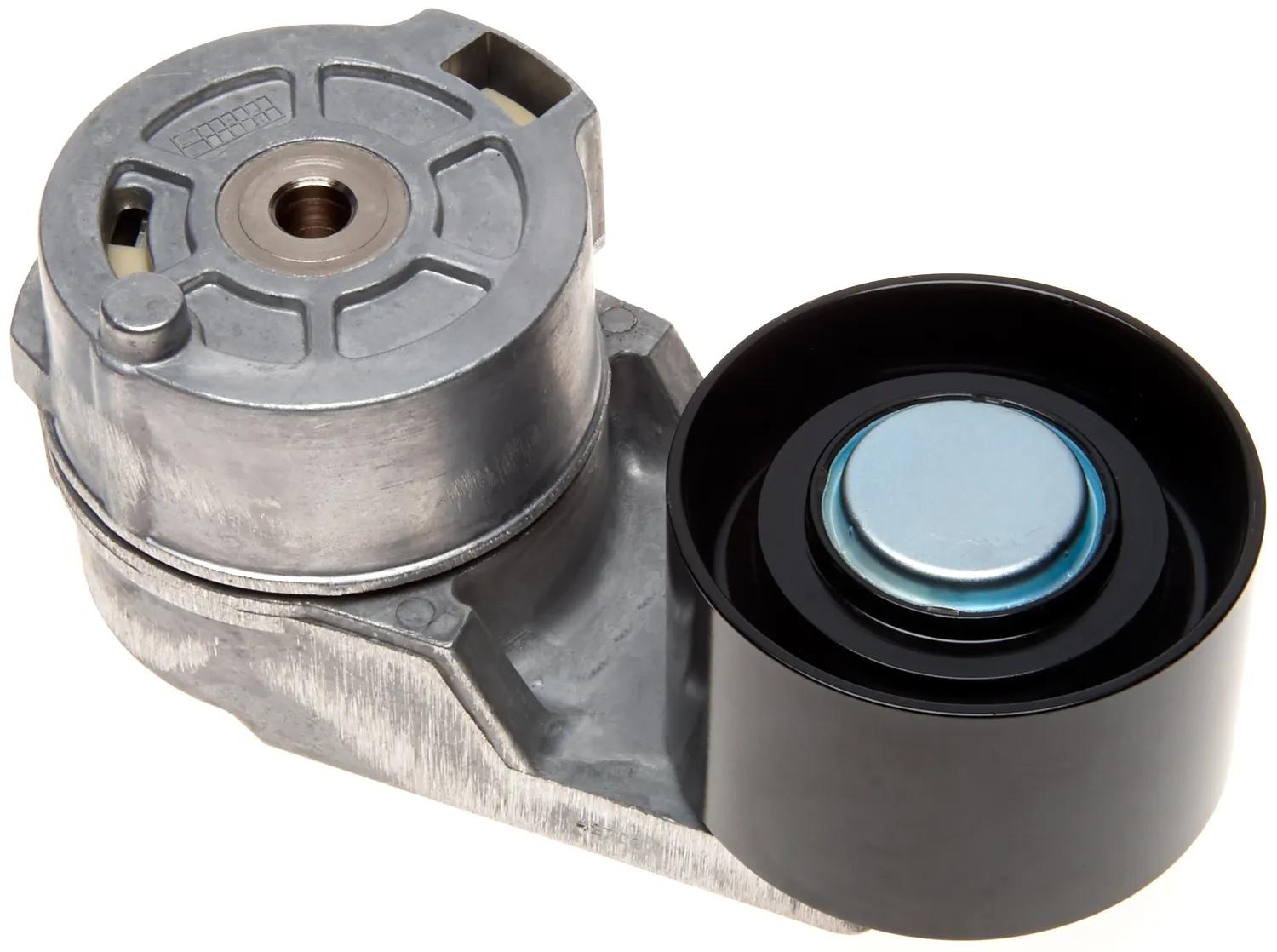

Gates Fleetrunner™ Heavy Duty Steel Belt Tensioner with 17 mm Bearing Bore, 1 Pulley, 76 mm OD
#GAT38590
Product Overview
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function. When it comes to rugged applications in severe conditions, FleetRunner™ heavy duty belt tensioners are top of the line. Tested to withstand and excel under extreme pressure, get up to three times the life cycle with Gates over other aftermarket providers.Belt Tensioner, Heavy Duty, C9, C11, C13, C15 Caterpillar Engine, Steel, 17 mm Bearing Bore ID, Smooth/Backside Contact Surface, 2117895, 2117895 Cross Reference, 1 Pulleys, 76 mm OD, 46 mm Width
Features & Benefits
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
- Gates Fleetrunner™ Tensioners last up to three times longer than other aftermarket, heavy-duty solutions, this means significantly less downtime, and overall increased economic efficiency.
- The components in the Fleetrunner™ tensioners have been improved and engineered for increased strength and durability, another aspect of Gates innovation that leads to superior, long-lasting products.
- Double row bearings (twin rows of bearings) carry more load and last up to three times longer than two separate bearings.
- Labyrinth seal technology prevents contamination of internal parts improving durability and increasing service life.
- A Machined steel pulley reduces surface wear while shielding the internal bearing from external contaminants and damage.
- A Patented damping mechanism provides maximum stability, reduces vibration, and increases service life.
Specifications
| Belt Top Width | 1-3/4 to 1-7/8 in |
| Contact Surface | Smooth/Backside |
| Contents | Tensioner Assy |
| Material | Steel |
| Number Of Mounting Holes | 1 |
| # of Pulleys | 1 |
| Outside Diameter | 76 mm |
| Width | 1-13/16 in |
| Bearing Bore Inside Diameter | 17 mm |
| Engine Type | C9, C11, C13, C15 Caterpillar |
| Number of Pulleys | 1 |
| Type | Heavy Duty |
| Product Category | Belt Tensioner |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 49569 |
| GYB49569 |
| 89439 |
| 910062 |
| 910062A |
| GT38590 |
| 2117895 |
