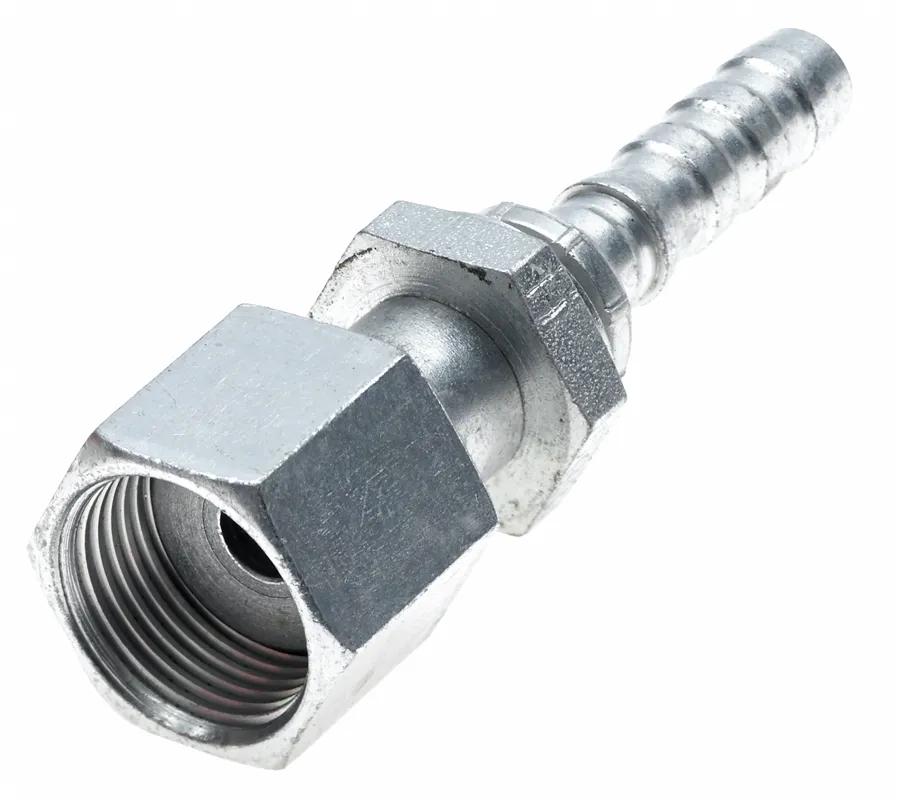

Gates GlobalSpiral Female Flat-Face O-Ring Swivel Coupling, 1-3/16-12 Thread, 0.75 in Hose Connection
Product Overview
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor-made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors, and contamination of the fluid power system. Maximum application coverage - GlobalSpiral™ couplings are available in more than 80 thread configurations, making it easy to find the right fit for your assembly. GlobalSpiral™ thread ends are machined from unleaded steel bar stock and can handle working pressures up to 6,000 psi. Coated with TuffCoat™ plating, providing more than five times better corrosion resistance than SAE ASTMB117 specification.GlobalSpiral Coupling, Steel, 1-3/16-12 Connection Size 1, 0.752 in Connection Size 2, Female Flat-Face O-Ring Swivel Connection Type 1, Hose Connection Type 2, 6000 psi Operating Pressure, 3.957 in Length
Features & Benefits
- Maximum Application Coverage - Globalspiral Couplings are Available in More Than 80 Thread Configurations, so Finding the Right Fit for Your Assembly has Never Been Easier.
- Surpasses one million impulse cycles. Innovative, two-piece, no-skive design.
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention.
- The GlobalSpiral Two-Piece Configuration Greatly Reduces the Chance of Assembly Error.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & Contamination of the Fluid Power System.
- GlobalSpiral Couplings Surpassed One Million Impulse Cycles at +250 Deg. F (+121 Deg. C) w/o Causing Stress Cracks in the Hose Tubing.
- Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types.
- Reduces assembly time, labor, fabrication errors and contamination.
- Note: MGS Couplings For Use w/ MC4-20 Crimper Only.
- Coated w/ TuffCoat Plating - More Than Five Times Better Corrosion Resistance Than SAE ASTMB117 Specification.
- Machined from Unleaded Steel Bar Stock, GlobalSpiral Thread Ends are Able to Handle Working Pressures Up to 6,000 PSI.
- Available in Steel Material for Enhanced Durability.
Specifications
| Application | Hydraulic hose applications |
| Cut Off (in) – C | 1-61/64 in |
| Finish | TuffCoat plating |
| Inside Diameter | 3/4 in |
| Length | 1-61/64 in |
| Material | Steel |
| Nut Hex (in) – H2 | 1-27/64 in |
| Sleeve Inside Diameter | 1-17/64 in |
| Stem Hex (in.) | 1-17/64 in |
| Thread | 1-3/16 in-12 |
| Type | GlobalSpiral Female Flat-Face O-Ring Swivel |
| Connection Size 1 | 1-3/16-12 |
| Connection Size 2 | 0.752 in |
| Connection Type 1 | Female Flat-Face O-Ring Swivel |
| Connection Type 2 | Hose |
| Operating Pressure | 6000 psi |
| Standards | SAE ASTMB117, ISO Draft International Standard 12151-1, SAE J1453 O-Ring Face Seal |
| Product Category | GlobalSpiral Coupling |
| Weight | 0.64 lb (0.29 kg) |
Interchanges & Equivalent parts:
| 287001212 |
| GYH28700-1212 |
| 1BA12FR12 |
| 1EA12FR12 |
| FJ9900-1212S |
| G20230-1212 |
| 734730445 |
