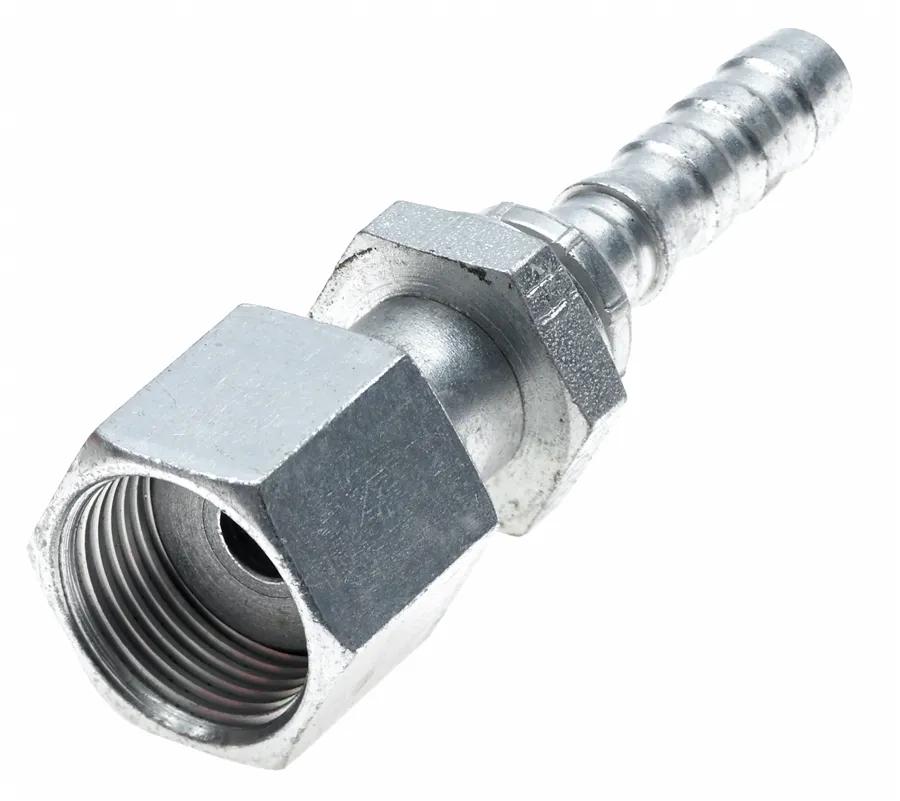

Gates GlobalSpiral Female Flat-Face O-Ring Swivel Coupling, 1-7/16 in-12 Thread, 16GS-16FFORX
Product Overview
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor-made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors, and contamination of the fluid power system. Maximum application coverage - GlobalSpiral™ couplings are available in more than 80 thread configurations, making it easier to find the right fit for your assembly. GlobalSpiral™ thread ends are machined from unleaded steel bar stock and can handle working pressures up to 6,000 psi. Coated with TuffCoat™ plating, offering more than five times better corrosion resistance than SAE ASTM B117 specification.GlobalSpiral Coupling, 1-7/16-12 Connection Size 1, Female Flat-Face O-Ring Swivel Connection Type 1, Hose Connection Type 2, 6000 psi Operating Pressure, 4.358 in Length
Features & Benefits
- Maximum Application Coverage - Globalspiral Couplings are Available in More Than 80 Thread Configurations, so Finding the Right Fit for Your Assembly has Never Been Easier.
- By Pulling the Ferrule Away From the Hose End, it's Easier to See When the Stem is Fully & Securely Inserted Into the Hose.
- The Two-Piece Design Potentially Reduces Inventory by 30 Percent Since Only One Stem is Required for All Spiral Wire Hose Types.
- The Innovative Two-Piece, No-Skive Design Allows for Fast, Tailor Made Assemblies.
- Unique Bite-the-Wire Crimp Design Allows for Improved Coupling Retention & Blow-Off Prevention.
- The GlobalSpiral Two-Piece Configuration Greatly Reduces the Chance of Assembly Error.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & Contamination of the Fluid Power System.
- GlobalSpiral Couplings Surpassed One Million Impulse Cycles at +250 Deg. F (+121 Deg. C) w/o Causing Stress Cracks in the Hose Tubing.
- Note: MGS Couplings For Use w/ MC4-20 Crimper Only.
- Coated w/ TuffCoat Plating - More Than Five Times Better Corrosion Resistance Than SAE ASTMB117 Specification.
- Machined from Unleaded Steel Bar Stock, GlobalSpiral Thread Ends are Able to Handle Working Pressures Up to 6,000 PSI.
- Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types.
Specifications
| Application | Extremely high-pressure, high-impulse spiral-wire hydraulic hose applications |
| Finish | TuffCoat Plating |
| Industrial Description | 16GS-16FFORX |
| Inside Diameter | 1 in |
| Length | 4-23/64 in |
| Nut Hex (in) – H2 | 1-39/64 in |
| Product Number | 734730555 |
| Sleeve Inside Diameter | 1-39/64 in |
| Stem Hex (in.) | 1-39/64 in |
| Type | GlobalSpiral Female Flat-Face O-Ring Swivel |
| Connection Size 1 | 1-7/16-12 |
| Connection Type 1 | Female Flat-Face O-Ring Swivel |
| Connection Type 2 | Hose |
| Operating Pressure | 6000 psi |
| Standards | More than five times better corrosion resistance than SAE ASTM B117 specification |
| Product Category | GlobalSpiral Coupling |
| Weight | 1.04 lb (0.47 kg) |
Interchanges & Equivalent parts:
| 287001616 |
| GYH28700-1616 |
| G202301616 |
| 1BA16FR16 |
| 1EA16FR16 |
| 1ZA16FR16 |
| FJ9900-1616S |
| G20230-1616 |
| 734730555 |
