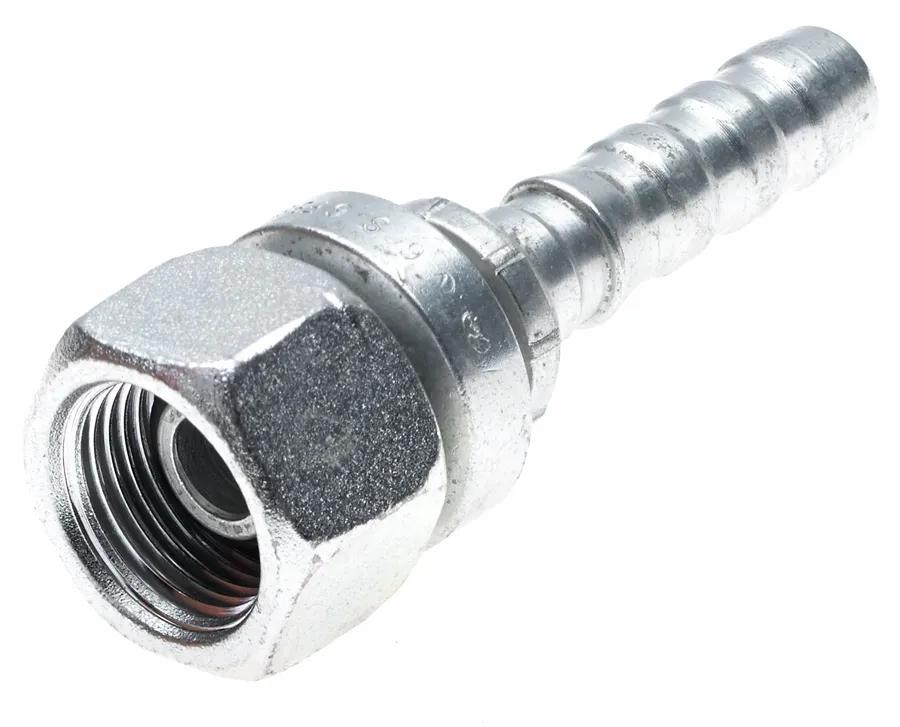

Gates GlobalSpiral Steel Coupling, 1-11 x 1 in, Female British Standard Parallel Pipe O-Ring Swivel
Product Overview
Gates GlobalSpiral No-Skive Coupling Design Provides Superior Performance for Extremely High-Pressure, High-Impulse Spiral-Wire Hydraulic Hose Applications. The innovative two-piece, no-skive design allows for fast, tailor-made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors, and contamination of the fluid power system. Maximum application coverage - GlobalSpiral couplings are available in more than 80 thread configurations, making it easy to find the right fit for your assembly. GlobalSpiral thread ends are machined from unleaded steel bar stock and can handle working pressures up to 6,000 psi. Coated with TuffCoat plating, providing more than five times better corrosion resistance than SAE ASTMB117 specification.GlobalSpiral Coupling, Steel, 1-11 Connection Size 1, 1 in Connection Size 2, Female British Standard Parallel Pipe O-Ring Swivel Connection Type 1, Hose Connection Type 2, 6000 psi Operating Pressure, 3.74 in Length
Features & Benefits
- Maximum Application Coverage - Globalspiral Couplings are Available in More Than 80 Thread Configurations, so Finding the Right Fit for Your Assembly has Never Been Easier.
- Surpasses one million impulse cycles. Innovative, two-piece, no-skive design.
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention.
- The GlobalSpiral Two-Piece Configuration Greatly Reduces the Chance of Assembly Error.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & Contamination of the Fluid Power System.
- GlobalSpiral Couplings Surpassed One Million Impulse Cycles at +250 Deg. F (+121 Deg. C) w/o Causing Stress Cracks in the Hose Tubing.
- Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types.
- Reduces assembly time, labor, fabrication errors and contamination.
- Note: MGS Couplings For Use w/ MC4-20 Crimper Only.
- Coated w/ TuffCoat Plating - More Than Five Times Better Corrosion Resistance Than SAE ASTMB117 Specification.
- Machined from Unleaded Steel Bar Stock, GlobalSpiral Thread Ends are Able to Handle Working Pressures Up to 6,000 PSI.
Specifications
| Coupling Description | GlobalSpiral Female British Standard Parallel Pipe O-Ring Swivel |
| Cut Off (in) – C | 1-33/64 in |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8000 psi |
| Industrial Description | 16GS-16FBSPORX |
| Inside Diameter | 1 in |
| Length | 3-47/64 in |
| Material | Steel |
| Nut Hex (in) – H2 | 1-39/64 in |
| OEM Part # | G20830-1616 |
| Product Number | 734790815 |
| Type | GlobalSpiral Female British Standard Parallel Pipe O-Ring Swivel |
| UPC | 072053438109 |
| Connection Size 1 | 1-11 |
| Connection Size 2 | 1 in |
| Connection Type 1 | Female British Standard Parallel Pipe O-Ring Swivel |
| Connection Type 2 | Hose |
| Operating Pressure | 6000 psi |
| Product Category | GlobalSpiral Coupling |
| Weight | 0.84 lb (0.38 kg) |
Interchanges & Equivalent parts:
| G20830-1616 |
| 734790815 |
