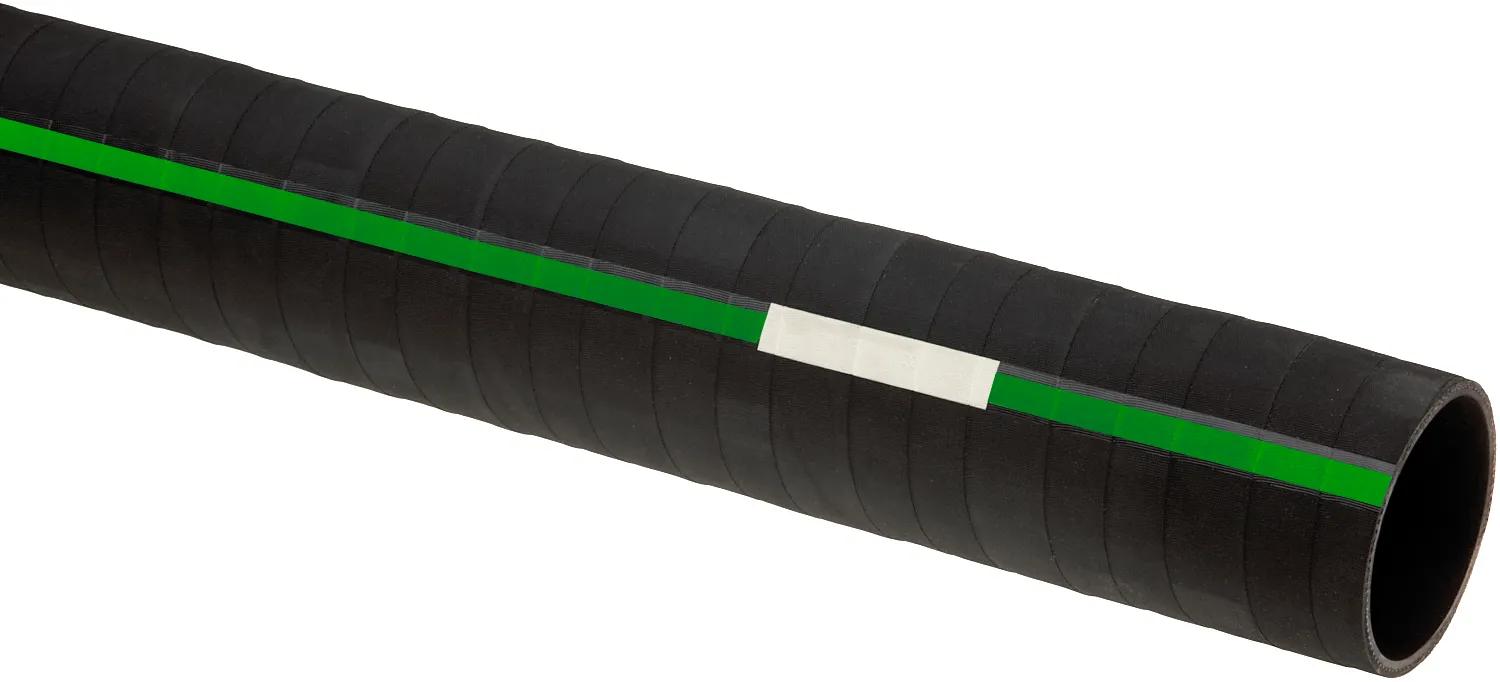

Gates Green Stripe 2-Ply Straight Coolant Hose, EPDM with Synthetic Fabric Reinforcement, 2-1/2 in ID, 3 ft Length, 150 psi Burst Pressure

#GAT24240

Product Overview


Gates Green Stripe™ 2-Ply Straight Coolant Hose is designed for demanding heavy-duty coolant and air applications. Featuring a two-ply bias fabric construction, it maximizes flexibility and strength. The advanced EPDM tube and cover resist cold water leaks and remain soft and pliable even under adverse operating conditions. This hose exceeds SAE 20R1 Type EC (Class D-1 Tube and Cover, Standard Wall) standards and is approved for marine applications, with a temperature rating from -65 to 350 °F.Coolant Hose, Premium Hose, Green Stripe, EPDM with Synthetic Fabric Reinforcement, 150 psi Burst Pressure, 2-Ply Construction, 2-1/2 in ID, 2.92 in OD, 60 psi Pressure Rating, SAE 20R1 EC Class D1 Standards, -65 to 350 °F Temperature Rating, 3 ft Length, For Marine

See More
See Less

Features & Benefits


  • Exceeds SAE 20R1 Type EC (Class D-1 Tube, and cover, Standard Wall)
  • Cover marked in one-inch increments to facilitate approximate cut lengths
  • Engineered with compounds which resist electrochemical degradation
  • Approved for marine applications
  • -40 to +257 deg F temperature rating

Specifications


Application Marine
Burst Pressure 150 psi
Color Green Stripe
Construction 2-Ply
Inside Diameter 2-1/2 in
Length 3 ft
Outside Diameter 2.92 in
UPC 072053133073
Weight 0.99 lb
Hose Type Premium
Pressure Rating 60 psi
Standards SAE 20R1 EC Class D1
Temperature Rating -65 to 350 °F
Product Category Coolant Hose
Quantity 5

Interchanges & Equivalent parts:


77250GL
3253494
0516836004
0516836006
0516836204
57240
GYB57240
67369
8118
85658
0516836005
0516836008
0516836205
0516836207
0516836208
05169836005
0522451000
4093101C1
571609C1
571611C1
F7HT 8286 KA
F7HT 8286 NA
F7HZ 8286 NA
GPC250
0509562004
534321C1
77250GLDYC
GAT24240
GT 24240
56040
4168-1740
See more
