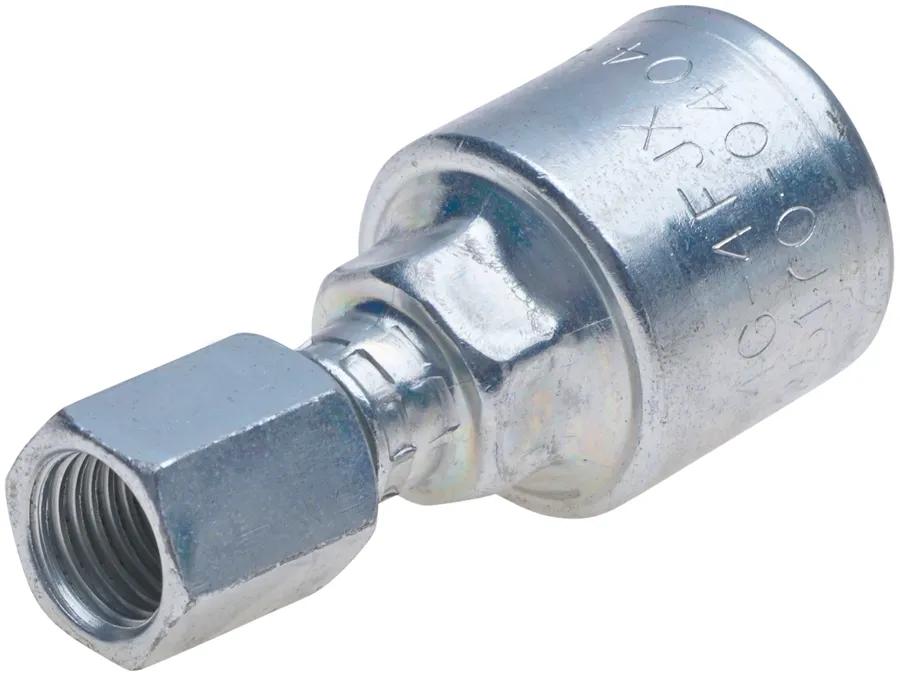

Gates MegaCrimp Female JIC 37 Flare Swivel Coupling, Steel, 3/4 in (0.752 in) Hose Connection
#GATG25170-1212X
Product Overview
Gates MegaCrimp Couplings are designed for use with Gates wire braid hydraulic hose to create a robust, leak-free assembly. The pre-assembled coupling features a patented "C" insert attached to the ferrule, allowing usage with different hose constructions and wall thicknesses. This insert ensures even distribution of crimping forces to form a concentric, leak-free seal, simplifying inventory requirements. MegaCrimp couplings are fully qualified EN-performance couplings and have been tested to industry-leading standards, including surpassing one million impulse cycles.MegaCrimp Coupling, Steel, 0.752 in Connection Size 2, Female JIC 37 deg Flare Swivel Connection Type 1, Hose Connection Type 2, 3.74 in Length
Features & Benefits
- This design ensures that crimping forces are evenly distributed to form a concentric, leak-free seal.
- Robust bite-the-wire crimp. Low profile. Full-stem insertion. Full-length crimp. Tested to industry-leading 600,000 impulse cycles.
- Simplifies inventory management. Environmentally-friendly TuffCoat plating for 345 percent better corrosion resistance than SAE standard.
- One MegaCrimp coupling size can accommodate various 1 and 2 wire braid hydraulic hoses of different constructions and wall thicknesses, simplifying inventory requirements, helping to reduce costs and simplifying coupling selection.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker; Gates has engineered a solution – full-torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- MegaCrimp couplings set a new standard for hydraulic couplings; the unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- Surpassed one million impulse cycles during design testing.
Specifications
| Application | Hydraulic hose assemblies |
| Length | 3-47/64 in |
| Material | Steel |
| Type | MegaCrimp Female JIC 37 Flare Swivel |
| Connection Size 1 | 3/4 in |
| Connection Size 2 | 0.752 in |
| Connection Type 1 | Female JIC 37 deg Flare Swivel |
| Connection Type 2 | Hose |
| Operating Pressure | EN-performance (implied from EN-performance couplings) |
| Standards | EN-performance |
| Product Category | MegaCrimp Coupling |
Interchanges & Equivalent parts:
| G25170-1212X |
| 71030832 |
