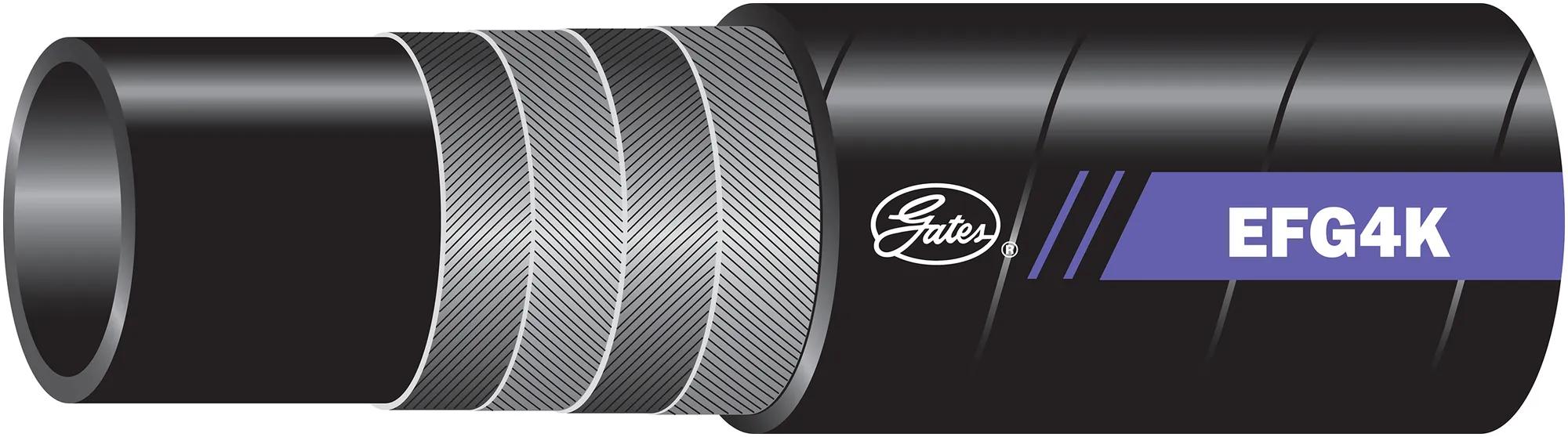

Gates Spiral Wire Hydraulic Hose 1 in ID, 1.5 in OD, 4000 psi, Nitrile Tube, 30 m Length
Product Overview
The Gates EFG4K hose is designed for very high-pressure, high-impulse hydraulic applications. It exceeds all requirements of ISO 18752 grade D (except OD for -6 to -10), SAE 100R12, EN 856 R12, and ISO 3862 Type R12 standards. Compatible with biodegradable hydraulic fluids such as polyolester, polyglycol, and vegetable oil, as well as standard petroleum-based fluids. Rated for 4000 psi constant pressure with a temperature range from -40 to 250 °F, this hose features a nitrile tube and polychloroprene cover, offering superior abrasion, ozone, and weather resistance.Spiral Wire Hose, Polychloroprene Cover, Nitrile Tube, Black, 4000 psi Burst Pressure, 1 in ID, Minimum Bend Radius: 6 in, 1.5 in OD, 4000 psi Pressure, Reinforcement: 4-Spiral, Wire, Standards: EN 856 R12, ISO 18752, ISO 3862 R12, SAE 100R12, MSHA Approved, DNV, GL, LR, BV and ABS, Temperature Rating: -40 to 250 °F, For Very High-Pressure, High-Impulse Applications, 30 m L
Features & Benefits
- The optional megatuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- The optional xtratuff™ cover lasts up to 25 times longer than standard hose
- Available in 121' through 200' continuous lengths
- For use with global spiral™ couplings [G20 Series], Global Spiral One-Piece Couplings [G21 Series, -20 Only] and Stainless Steel Spiral Couplings [G18 Series]
- Superior flex impulse performance: tested to 1,000,000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii
- Meets flame resistance acceptance designation MSHA 2G
- Meets or exceeds performance requirements of EN 856 4SP (-16, -20)
- EFG4K megaspiral™ is rated at 1/2 bend radius of SAE 100R12
- Most flexible EN 856 R12 / SAE 100R12 hose in the industry
- 40% of EN 856 4SP bend radius at rated working pressure, Type approvals: DNV, GL, LR, BV and ABS, 4000 psi constant pressure for all id's, Validated with globalspiral™, Cover: MSHA approved, -40 deg F to +250 deg F temperature range
