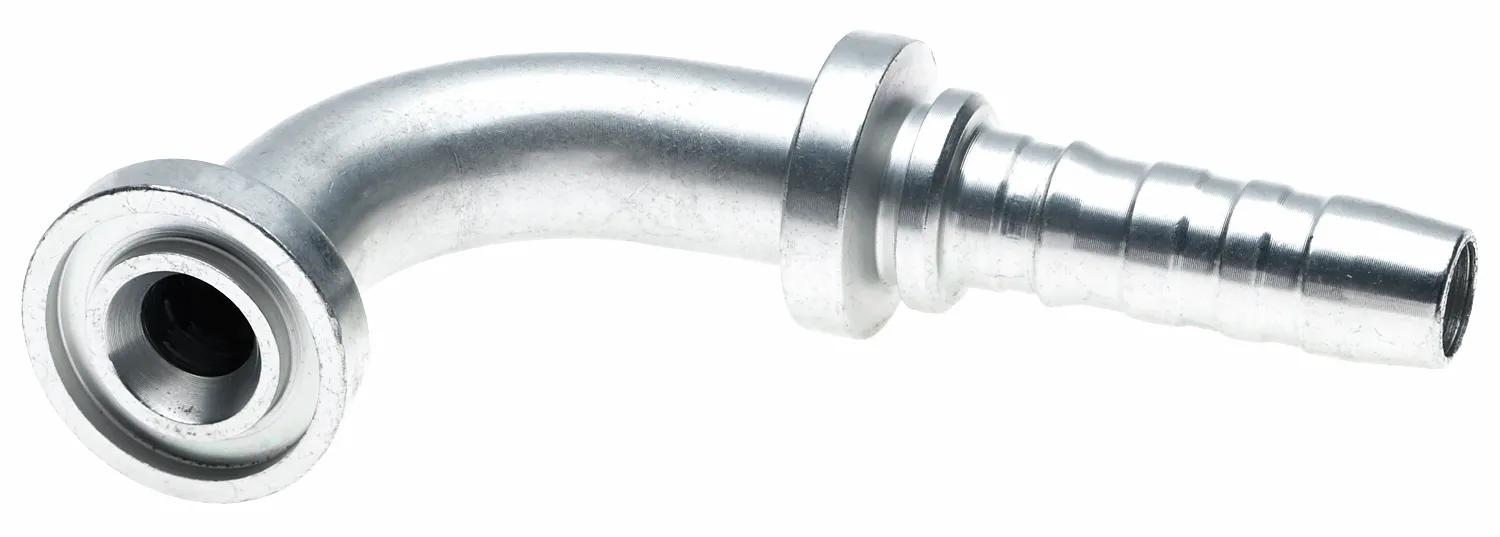

GlobalSpiral Code 61 O-Ring Flange, 90*, 16GS-12FL90
#GATG20316-1612
Specifications
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 90 Bent Tube |
| Cut Off (in) – C | 3-3/32 in (7.85 cm) |
| Diameter | 1-1/2 in (3.81 cm) |
| Drop (in.) | 3-5/32 in (8.03 cm) |
| Flange Head Thickness (in) – F | 17/64 in (0.69 cm) |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8000 psi |
| Industrial Description | 16GS-12FL90 |
| Inside Diameter | 1 in (2.54 cm) |
| Length | 5-5/16 in (13.49 cm) |
| Pressure | 5000 psi (344.73 bar) |
| Type | GlobalSpiral Code 61 O-Ring Flange - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| G20316-1612 |
| 734773255 |
