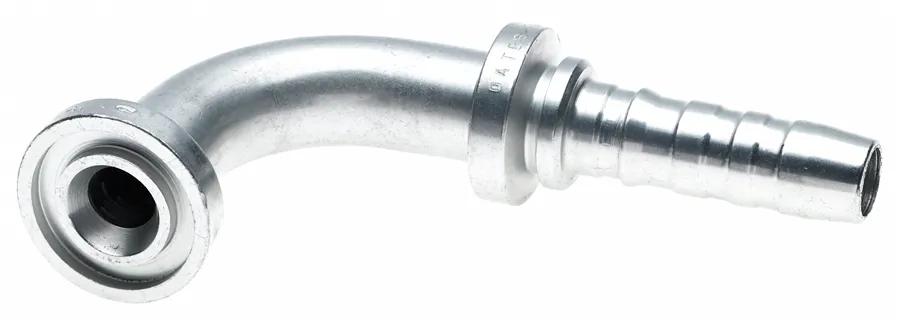

GlobalSpiral Code 61 O-Ring Flange, 90*, 16GS-16FL90-150
#GATG20318-1616
Specifications
| Cut Off (in) – C | 3-7/16 in (8.74 cm) |
| Diameter | 1-3/4 in (4.45 cm) |
| Drop (in.) | 5-29/32 in (15.01 cm) |
| Flange Head Thickness (in) – F | 5/16 in (0.79 cm) |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8000 psi |
| Industrial Description | 16GS-16FL90-150 |
| Inside Diameter | 1 in (2.54 cm) |
| Length | 5-43/64 in (14.4 cm) |
| Type | GlobalSpiral Code 61 O-Ring Flange - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| G20318-1616 |
| 734778705 |
