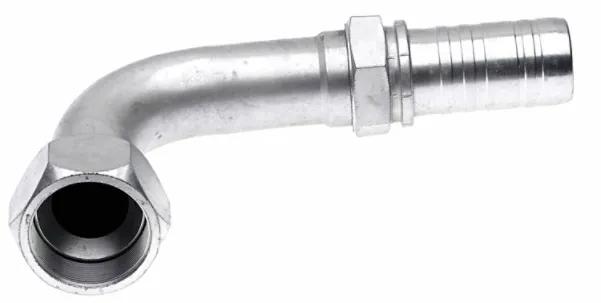

GlobalSpiral Coupling, 90 deg, Steel, 1.5 in Connection Size 1, 1-7/8-12 UN Connection Size 2, Female JIC 37 deg Flare Swivel, Tube, 8.35 in Length
#GATG22179-2424
Product Overview
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates® MegaSys four and six-spiral wire hose up to 6000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates® wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. S, M and L Drops per ISO final draft international standard 12151-S.GlobalSpiral Coupling, 90 deg, Steel, 1.5 in Connection Size 1, 1-7/8-12 UN Connection Size 2, Female JIC 37 deg Flare Swivel Connection Type 1, Tube Connection Type 2, 8.35 in Length
Features & Benefits
- Bite-the-wire crimp for improved coupling retention
- Tested to an industry-leading 1000000 impulse cycles
- 250 °F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347% better corrosion resistance than the SAE Standard
Specifications
| Length | 8.35 in |
| Material | Steel |
| Type | 90 deg |
| UPC | 5414465865282 |
| Connection Size 1 | 1.5 in |
| Connection Size 2 | 1-7/8-12 UN |
| Connection Type 1 | Female JIC 37 deg Flare Swivel |
| Connection Type 2 | Tube |
| Manufacturer Part Number | G22179-2424 |
| Product Category | GlobalSpiral Coupling |
| Quantity | 1 |
| Weight | 3.4 lb |
Interchanges & Equivalent parts:
| 734784745 |
