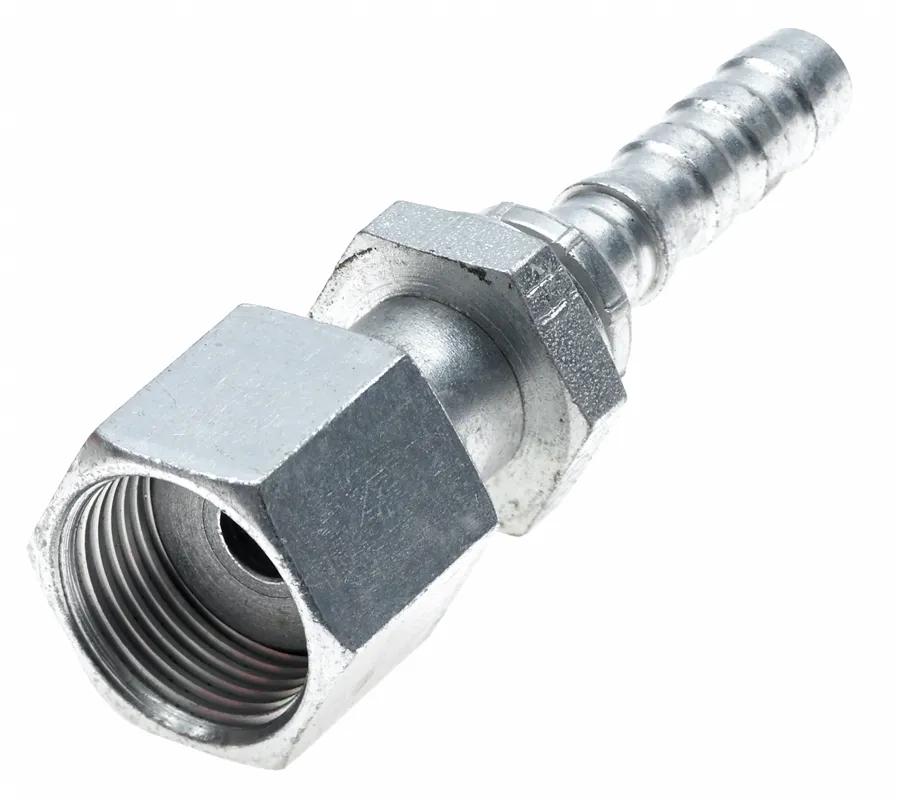

GlobalSpiral Female Flat-Face O-Ring Swivel, 8GS-8FFORX
#GATG20230-0808
Product Overview
Gates GlobalSpiral No-Skive Coupling Design Provides Superior Performance for Extremely High-Pressure, High-Impulse Spiral-Wire Hydraulic Hose Applications.
Features & Benefits
- Maximum Application Coverage - Globalspiral Couplings are Available in More Than 80 Thread Configurations, so Finding the Right Fit for Your Assembly has Never Been Easier.
- Surpasses one million impulse cycles. Innovative, two-piece, no-skive design.
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention.
- The GlobalSpiral Two-Piece Configuration Greatly Reduces the Chance of Assembly Error.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & Contamination of the Fluid Power System.
- GlobalSpiral Couplings Surpassed One Million Impulse Cycles at +250 Deg. F (+121 Deg. C) w/o Causing Stress Cracks in the Hose Tubing.
- Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types.
- Reduces assembly time, labor, fabrication errors and contamination.
- Note: MGS Couplings For Use w/ MC4-20 Crimper Only.
- Coated w/ TuffCoat Plating - More Than Five Times Better Corrosion Resistance Than SAE ASTMB117 Specification.
- Machined from Unleaded Steel Bar Stock, GlobalSpiral Thread Ends are Able to Handle Working Pressures Up to 6,000 PSI.
Specifications
| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel |
| Cut Off (in) – C | 1-11/32 in (3.4 cm) |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8000 psi |
| Industrial Description | 8GS-8FFORX |
| Inside Diameter | 1/2 in (1.27 cm) |
| Length | 2-7/8 in (7.32 cm) |
| Note | Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal. |
| Nut Hex (in) – H2 | 15/16 in (2.39 cm) |
| OEM Part # | G20230-0808 |
| Product Number | 734730245 |
| Sleeve Inside Diameter | 15/16 in (2.39 cm) |
| Stem Hex (in.) | 15/16 in (2.39 cm) |
| Thread | 13/16 in-16 |
| Type | GlobalSpiral Female Flat-Face O-Ring Swivel |
Interchanges & Equivalent parts:
| 287000808 |
| GYH28700-0808 |
| 1BA8FR8 |
| G20230-0808 |
| 734730245 |
