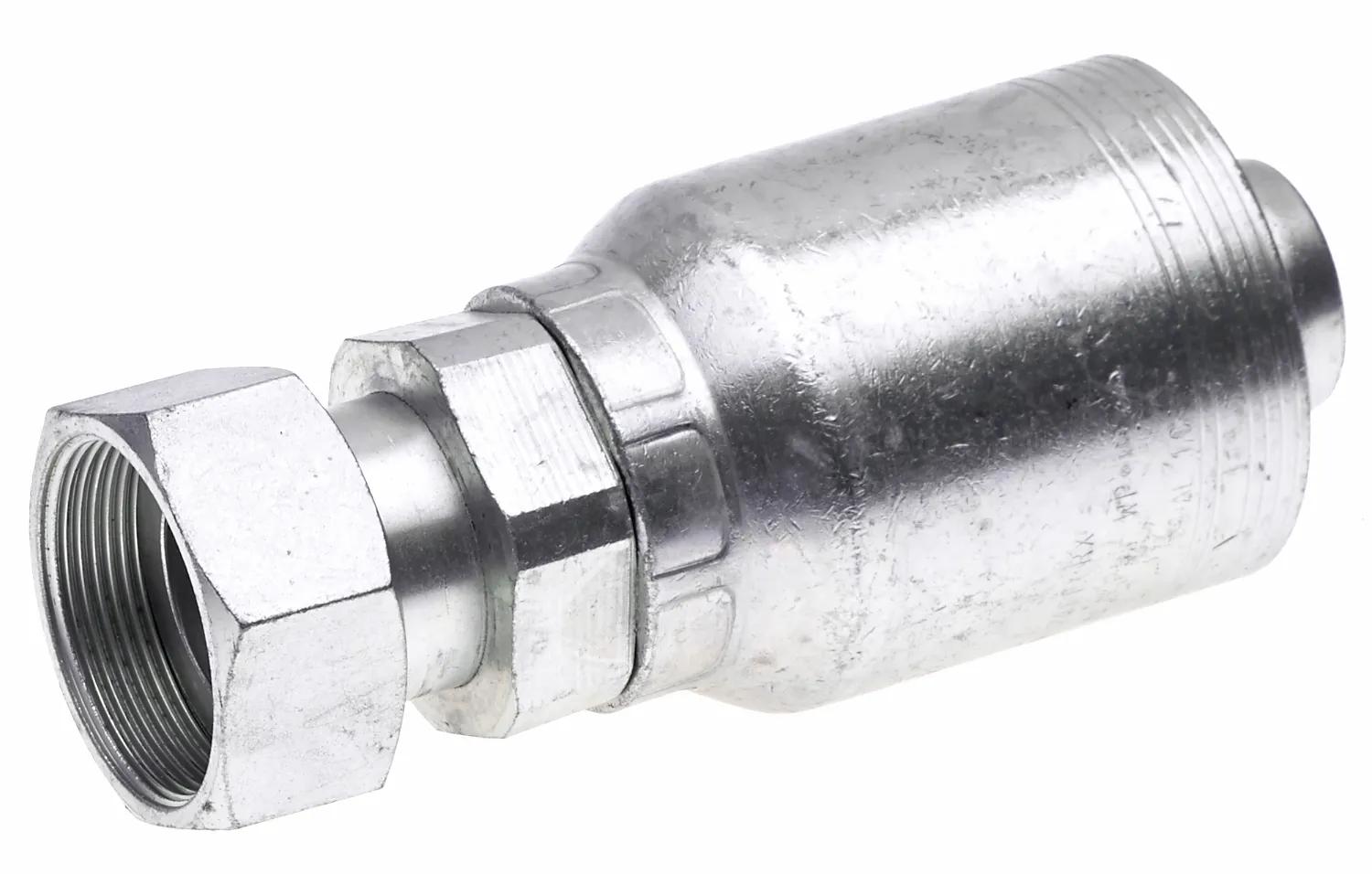

GlobalSpiral Female JIC 37 Flare Swivel, 24GSM-24FJX
#GATG24170-2424
Product Overview
As Mobile Equipment Platforms Become More Compact & Powerful, They Require Larger Diameter Hydraulic Hose w/ Higher Working Pressures to Meet Performance Demands.
Features & Benefits
- Features: Flexible, Easier-to-Route Hose Assembly to Replace 2 in. Rigid Pipe on Crowded Equipment Platforms, Stem Machined From a Single Piece of Solid Steel for Greater Strength & Integrity, No-Skive Design Reducing the Risk of Blow-Offs and Leaks.
- This Unique Coupling Offers Greater Power & Capacity Than Existing Equipment by Replacing 2 in., 5000 PSI Hose Assemblies.
- Innovative no-skive design.
- Surpasses one million impulse cycles.
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention.
- GlobalSpiral thread ends are able to handle working pressures up to 6,000 psi.
- Coated with TuffCoat plating - more than five times better corrosion resistance than SAE ASTMB117 specification.
Specifications
| Coupling Description | GlobalSpiral MAX Pressure Female JIC 37 Flare Swivel |
| Cut Off (in) – C | 3-3/64 in (7.75 cm) |
| Hose Recommendation | Gates Extremely High Pressure Hose - EFG6K - SAE 100R15; EFG5K - SAE 100R13 |
| Industrial Description | 24GSM-24FJX |
| Inside Diameter | 1-1/2 in (3.81 cm) |
| Length | 6-25/32 in (17.22 cm) |
| Nut Hex (in) – H2 | 3/32 in (0.23 cm) |
| Nut Hex Size | 2-23/64 in (5.99 cm) |
| OEM Part # | G24170-2424 |
| Product Number | 734102525 |
| Stem Hex (in.) | 2-11/64 in (5.51 cm) |
| Thread | 1-7/8 in-12 |
| Type | GlobalSpiral MAX Pressure Female JIC 37 Flare Swivel |
Interchanges & Equivalent parts:
| G24170-2424 |
| 734102525 |
