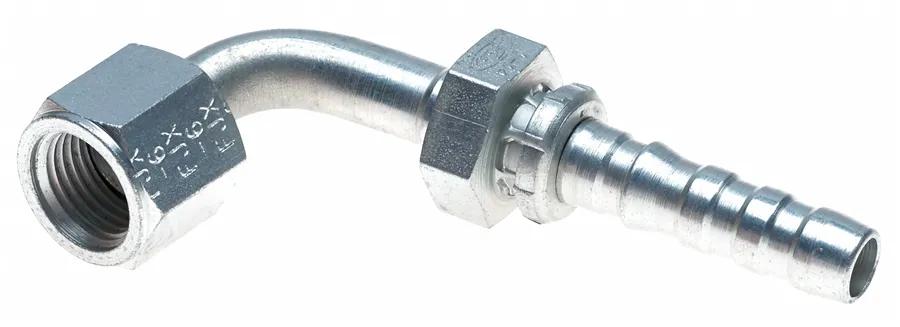

GlobalSpiral Female JIC 37 Flare Swivel, 90*, 8GS-10FJX90S

#GATG20179-0810

Product Overview

Gates GlobalSpiral No-Skive Coupling Design Provides Superior Performance for Extremely High-Pressure, High-Impulse Spiral-Wire Hydraulic Hose Applications.

Features & Benefits

Maximum Application Coverage - Globalspiral Couplings are Available in More Than 80 Thread Configurations, so Finding the Right Fit for Your Assembly has Never Been Easier.

Surpasses one million impulse cycles. Innovative, two-piece, no-skive design.

Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention.

The GlobalSpiral Two-Piece Configuration Greatly Reduces the Chance of Assembly Error.

Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & Contamination of the Fluid Power System.

GlobalSpiral Couplings Surpassed One Million Impulse Cycles at +250 Deg. F (+121 Deg. C) w/o Causing Stress Cracks in the Hose Tubing.

Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types.

Reduces assembly time, labor, fabrication errors and contamination.

Note: MGS Couplings For Use w/ MC4-20 Crimper Only.

Coated w/ TuffCoat Plating - More Than Five Times Better Corrosion Resistance Than SAE ASTMB117 Specification.

Machined from Unleaded Steel Bar Stock, GlobalSpiral Thread Ends are Able to Handle Working Pressures Up to 6,000 PSI.

Specifications

Description d'accouplement	GlobalSpiral Female JIC 37 Flare Swivel - 90 Bent Tube
Coupure (po) – C	2-5/32 po
Drop (in.)	1-17/64 po
Hose Recommendation	Tuyau hydraulique à quatre et six fils en spirale All Gates MegaSys jusqu'à 8 000 psi
Industrial Description	8GS-10FJX90S
Inside Diameter	1/2 po
Length	3-5/8 po
Nut Hex (in) – H2	1-1/16 po
Nut Hex Size	1-1/16 po
OEM Part #	G20179-0810
Product Number	734727255
Type	Raccord pivotant GlobalSpiral femelle JIC 37 Flare - Tube coudé à 90 degrés
Weight	0,29 lbs

Interchanges & Equivalent parts:

G20179-0810

734727255
